An EP Rubber Conveyor Belt Manufacturer Should Explain What Makes Up the Quoted Thickness

Bulk material conveyor belt supported by troughing rollers along the carrying run

“The new belt is thicker” can conceal several different proposals. The added material may be in the upper cover, the lower cover, the fabric carcass or the rubber between fabric layers. Before accepting that statement from an EP rubber conveyor belt manufacturer, ask which part changed and why it suits the retained conveyor. GRAM’s EP belt construction separates these layers. Maintenance buyers and distributors should compare that construction, rather than use total thickness as a shortcut for strength, wear allowance or replacement compatibility.

An EP rubber conveyor belt manufacturer should separate covers from carcass

EP describes the fabric arrangement: polyester longitudinal yarns and nylon transverse yarns. It does not describe every property of the rubber surrounding that fabric. A complete offer needs to identify the fabric carcass and the cover arrangement together, so the buyer can see what the quoted overall thickness includes.

Upper rubber cover
The material-facing rubber above the reinforcing carcass. Its proposed compound and thickness concern the carried-material duty.
Fabric carcass and bonding rubber
The reinforcing textile layers and the rubber connecting them. Their construction must be identified independently of the cover allocation.
Lower rubber cover
The machine-facing rubber below the carcass. Its requirements relate to the underside contact and retained conveyor.

Upper-cover thickness is not the EP fabric strength

Adding upper-cover material does not, by itself, define a different textile reinforcement. The buyer should keep the offered carcass designation visible when comparing a thicker cover option. If a supplier describes a thicker belt as stronger, ask whether the reinforcement changed or whether the statement only concerns the outer rubber.

For a maintenance buyer dealing with cover loss on a mineral-handling belt, additional cover may be part of a proposal. The project still needs the appropriate compound, a defined carcass and compatibility with its machine. More outer rubber should not hide an unreviewed change in fabric construction or become evidence that the particular wear mechanism has been resolved.

Lower-cover allocation changes the underside of the replacement

The lower cover has a different contact environment from the material-facing cover. State its proposed allocation separately. Two belts with a similar overall thickness may distribute rubber differently between their faces; a buyer comparing only the total cannot see that difference.

If the old construction is known, compare the offered underside with its accepted specification. Keep current wear measurements distinct from original construction information. A worn belt may help locate a problem, but its remaining thickness is not necessarily the correct starting specification for a new product.

More fabric plies and a thicker EP carcass are different statements

GRAM’s fabric belt route provides the broader textile construction context. Fabric plies are individual reinforcement layers within the carcass. The number of layers is useful information, but it should be accompanied by the actual fabric specification and the finished construction the manufacturer proposes.

Bonding rubber belongs in the carcass thickness explanation

The EP construction description includes rubber connecting the fabric layers. Consequently, a change in carcass thickness may involve more than a change in ply count. Have the supplier explain which constituent changed instead of assume that every additional part of the measured thickness is extra reinforcing fabric.

Fenner Dunlop’s technical discussion of belt quality distinguishes carcass thickness from ply count and notes the need to match construction to use. This is general selection background. Its numerical examples and performance comparisons are not GRAM test results or specifications for the offered belt.

A distributor comparing two offers should therefore avoid marking them equivalent because both list the same ply count. Ask for the carcass description in each offer and retain the separate cover information. Where a quotation omits the fabric construction, the missing detail should remain an open technical question rather than be filled from another supplier’s brochure.

GRAM rubber belt roll illustrating an overall thickness that must be separated into cover and carcass contributions
Roll form cannot establish the internal fabric construction or cover allocation.

A thicker EP proposal must still pass around the retained conveyor

Changing the belt build can change how the replacement behaves around the machine. Provide the retained pulley arrangement and the intended operating duty to the responsible technical reviewer. A proposed increase in thickness should be assessed as a construction change, rather than accepted only because there is physical space above the belt.

The pulley assessment needs the offered fabric build

The project needs to review its pulleys against the actual proposed carcass and cover arrangement. Do not infer a universal minimum pulley diameter from the term EP or from the number of fabric plies. Required dimensions and acceptance criteria belong to the supplied construction and the retained machine.

If the manufacturer provides a requirement for a different belt in its range, ask whether that requirement applies to the offered replacement. The purchasing team should not attach favorable data from one construction to a thicker alternative whose fabric or rubber build differs.

The same discipline applies to the proposed joining arrangement. A change in layer construction needs the joining provider’s review using the actual belt information. This does not mean every thickness change demands the same joining response; it means the existing instructions cannot be presumed applicable without checking their construction scope.

Cover thickness cannot be assessed apart from cleaner contact

Where the conveyor retains a cleaning system, identify the surface and finished construction that system will contact. The buyer should have the appropriate team review the proposed replacement against the equipment instructions. A cover change should not be described solely as additional service life while its interaction with retained equipment remains unexamined.

At a troughed carrying run, the belt’s ability to take the intended support shape is also a separate question. The EP width and trough discussion addresses that geometry. Thickness decomposition helps make the proposal clear; it does not replace the review of belt width, station shape or machine compatibility.

Keep EP reinforcement separate from a heat-resistant cover offer

GRAM’s HR route concerns a heat-related application requirement. EP concerns textile reinforcement. A belt proposal may need both descriptions, but one does not establish the other. Increased upper-cover thickness is not proof of an accepted heat-duty envelope.

A plant purchasing for hot material should describe its exposure and ask for the exact offered cover and reinforcement. Compare its construction changes with the retained conveyor, then review the applicable operating information. Do not import temperatures or compound grades from another manufacturer merely to complete a partly specified EP offer.

Likewise, the rubber belting range contains several construction routes. A broad rubber product description cannot tell the buyer which cover, fabric or thickness allocation will arrive. The quotation needs enough information to connect the offered belt to its intended duty, not just a product-family name.

An NN alternative is a fabric change even when the outer dimensions match

GRAM’s NN construction uses nylon in both fabric directions. That differs from the polyester longitudinal and nylon transverse arrangement of EP. A proposal to substitute NN should remain visible as a reinforcement change, even if its width and total thickness resemble the earlier EP offer.

Belt roll from the GRAM nylon range illustrating why a reinforcement name must accompany the outer dimensions
A similar-looking roll is not evidence of the same textile arrangement.

For a distributor receiving mixed EP and NN orders, keep the reinforcement description attached to the delivered rolls. Similar outer dimensions are a poor basis for allocating stock to a customer. The product identity should include the accepted fabric and cover construction so a later replacement does not begin with a mistaken assumption about the roll.

The technical reviewer should decide whether the proposed reinforcement suits the project. Purchasing should avoid accepting the alternative merely because it appears thicker or has an attractive price. The relevant comparison concerns the defined construction under the intended duty; this article does not establish interchangeable EP and NN grades.

An EP cover-loss measurement needs its original layer reference

A total measurement on the old belt can be difficult to interpret if both faces have changed in service. Compare the remaining condition with the original cover and carcass allocation where that information exists. Without it, a reduction in overall thickness does not tell the purchasing team how much material was lost from each cover.

Keep measurements from visibly affected and unaffected regions distinguishable. The purpose is to describe the condition for review, not to derive an unverified original specification from a damaged section. If the offered replacement uses a different cover split, require that difference to be explained rather than assume that the same overall number restores the earlier build.

This distinction also matters when the supplier presents a section photograph. Ask which construction the section represents and whether it belongs to the actual offer. A clearly visible set of layers can be informative, but a photograph of another belt does not establish the thickness allocation, fabric identity or conformity of the roll being purchased.

Make the EP thickness acceptance understandable at receipt

Before issuing the purchase, identify how the offered thickness is described and how the supplier proposes to demonstrate conformity. The accepted drawing or specification should distinguish an overall measurement from individual-layer information. Do not prescribe an arbitrary measurement tolerance or sample-preparation method without the responsible technical agreement.

If a section sample is part of that agreement, connect it to the offered construction and explain what it is intended to show. A section can help make layer allocation understandable; it does not, on its own, establish tensile performance, adhesion or the compatibility of a compound with a particular exposure. Those claims require their applicable evidence.

Keep the packaging identification consistent with the accepted build. Protect the roll faces and edges through the agreed handling process, and retain the label linking the supplied roll to its construction. A receiving team needs to know whether the thicker offer changed covers, carcass or both; “extra thick EP belt” is not enough information for that decision.

Release the replacement when the manufacturer has explained the build and the project has accepted the changes. If all you know is that the belt is thicker, ask the unanswered layer question before comparing prices. The useful improvement is a defined construction that addresses the duty and fits the machine, not a larger total on the thickness line.

/by

Assess a Stainless Steel Conveyor Rollers Supplier Against the Cleaning Environment

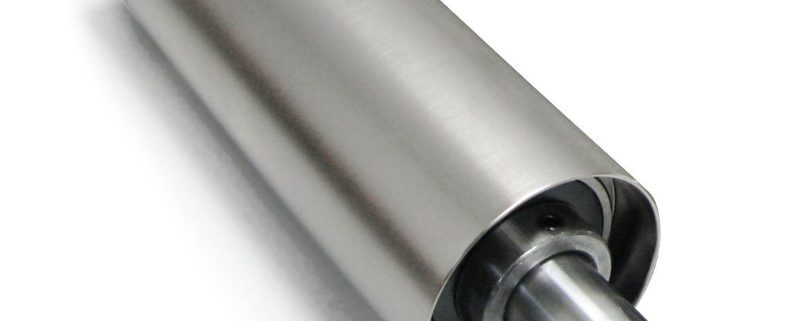

stainless steel conveyor roller

A stainless tube can arrive with a bearing arrangement that was never intended for the plant’s cleaning routine. When assessing a stainless steel conveyor rollers supplier, a processor or equipment buyer should therefore define the cleaning exposure and the complete assembly, not only the visible metal. GRAM’s steel conveyor roller range lists stainless steel among its material choices. Begin there, then identify the tube, shaft, bearing ends and mounting interface required by the existing conveyor.

For transfer equipment exposed to moisture or cleaning chemicals, the first question is what actually reaches each component. Routine wiping, intermittent splashing and direct washdown are different conditions. The stainless material route is relevant to that discussion, but the offered construction still needs to be checked against the cleaning method, load and installation dimensions.

A stainless steel conveyor rollers supplier should define the whole assembly

The word stainless is incomplete when it identifies only the tube. A steel roller also includes bearings at its ends and a shaft or axle interface that connects it to the conveyor. Ask which components use the declared material and which use a different construction. This is especially important when exposed shaft ends remain wet after the tube has dried.

Component being described Information that belongs in the offer Cleaning-related question
Running tube Material designation and finished surface What solution or deposit remains on the surface?
Shaft ends Material, end form and mounting dimensions Can moisture collect at the frame connection?
Bearing ends Bearing and protective arrangement Is cleaning directed toward an exposed end?
End components Actual materials and assembly drawing Are there crevices or contact points that retain residue?

A distributor stocking replacements for several processing customers should keep those component descriptions attached to each item. Two stainless rollers can have the same visible tube diameter while differing at the shaft or bearing ends. Combining them under a single stock description can turn a material match into an installation or maintenance mismatch.

Stainless roller tubes need an actual material declaration

GRAM discusses stainless steel for moisture and corrosive environments, but that discussion is not a declaration of a particular alloy for every available roller. Specify the required material in the enquiry and obtain the offered material description in return. Do not infer an alloy designation from a silver finish, a photograph or the general product family name.

If the plant’s cleaning solution contains several ingredients, provide the real mixture and use conditions. Concentration, temperature and contact duration can change the assessment. The person responsible for the cleaning process should identify the exposure; the roller supplier should state the construction proposed for it. A generic corrosion-resistant description leaves too much of that decision unresolved.

Stainless conveyor roller selection starts with the cleaning routine

A buyer replacing rollers on a wet transfer line should describe how the equipment is cleaned while shut down. Does the operator wipe the tube, wash the frame or direct spray at the bearing ends? Is residue removed before it dries? Those practical details are more useful than the broad label washdown environment.

Bearing protection must address where the cleaning fluid goes

When moisture reaches an end assembly, a corrosion-resistant tube does not automatically keep the bearing dry. Review the bearing protection and the route through which water or abrasive residue could enter. Ask whether the offered arrangement is suitable for the actual cleaning method, rather than assuming a protected bearing can tolerate any pressure or direction of spray.

GRAM’s polymer roller range describes sealed precision bearings, non-contact rubber seals and metal end caps. Those details show why the end construction deserves attention even when comparing different body materials. They are not a universal washdown approval and should not be transferred to an unspecified stainless assembly.

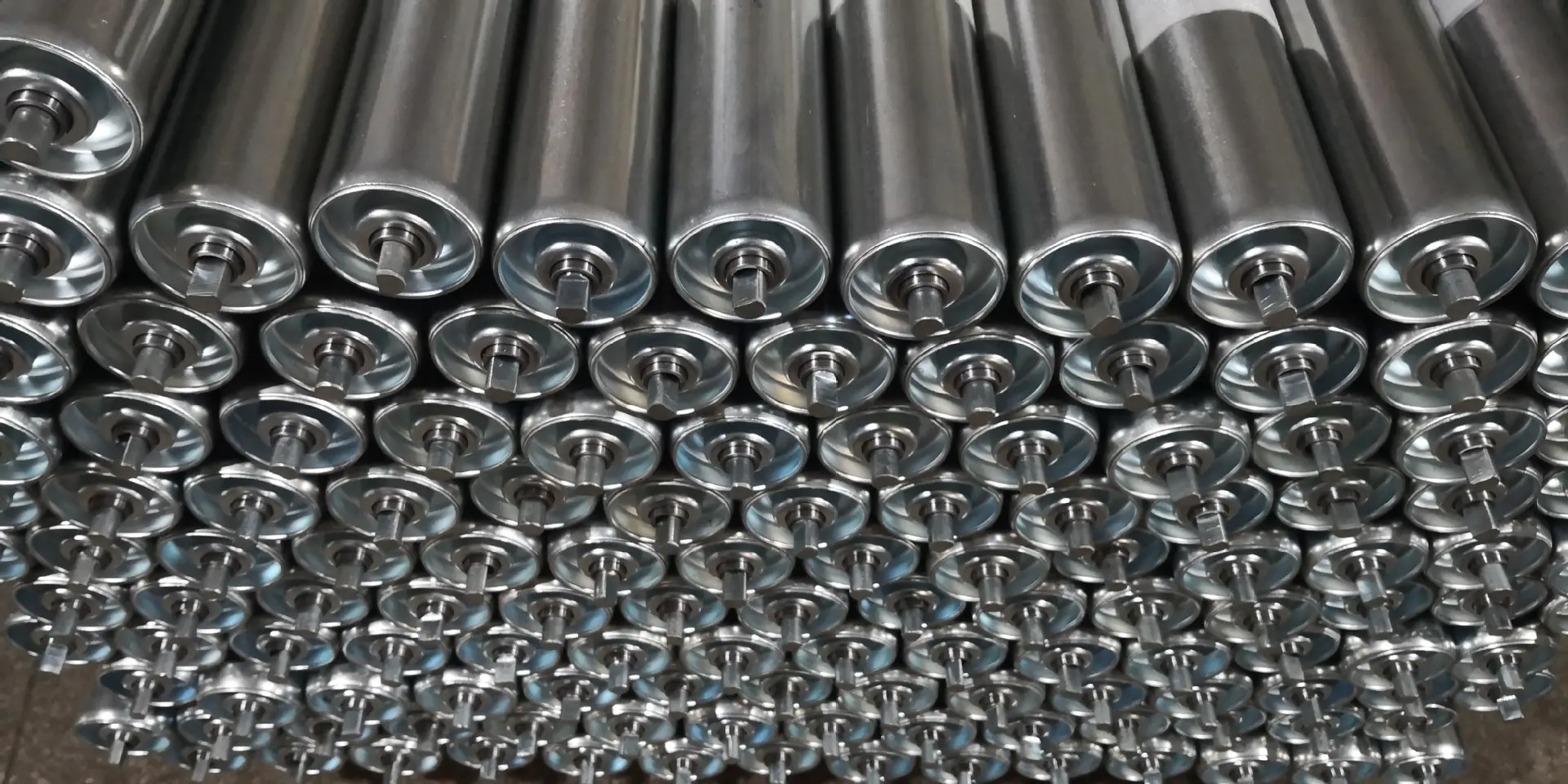

Steel conveyor roller bodies and shaft ends illustrating the components of a complete roller assembly
A material enquiry should distinguish the running tube from the shaft and bearing-end arrangement.

Deposits at the stainless shaft ends can change the maintenance problem

Some faults arise where the shaft seats in the conveyor frame. Residue can accumulate there, and repeated cleaning may leave moisture in a sheltered area. Record this location when the plant removes the old rollers. A close photograph and a drawing of the bracket interface help explain the exposure without claiming a corrosion mechanism that has not been established.

For a processor whose rollers turn freely after washing but become difficult to rotate later, compare the time and location of the change. The problem could involve deposits, bearing protection or frame interference. The useful response is an investigation of that assembly, not an automatic increase in the tube’s material specification.

Compare stainless steel with the other GRAM roller routes

Stainless steel is a reasonable route to evaluate where moisture or chemical exposure makes an ordinary steel surface unsuitable. It is not automatically the lowest-cost choice for a dry, clean transfer that already operates reliably. Retain the existing load and installation requirements while comparing materials so that the benefit being purchased remains clear.

GRAM’s nylon rollers provide a different body-material option. Nylon should not be described as stainless-equivalent, nor should its general material characteristics become a chemical compatibility claim for the delivered assembly. Compare the proposed nylon construction against the exact exposure and mechanical duty.

The main conveyor roller range also describes rubber-coated steel rollers. A coated running surface can address grip or product contact, but that is a different objective from choosing the exposed assembly for cleaning resistance. If both needs apply, specify both; do not expect a coating to resolve every material issue at the shaft and bearing ends.

Polymer conveyor roller assemblies representing a separate material option from stainless steel
Polymer is a distinct comparison route, with its own body and end-component requirements.

Guide rollers have another function again: local guiding rather than ordinary support across the conveyor. Their built-in bearing construction does not make them substitutes for the load-carrying rollers. Where the process needs guiding and conveying, keep the two enquiries separate and identify their mounting locations.

Approve stainless roller dimensions before assessing the purchase price

The offered tube must fit the working span, and the shaft ends must engage the existing frame as intended. Record whether the roller is free-running or part of a powered system. If it has a driven feature, the transmission interface belongs in the drawing as well. A stainless material match cannot compensate for a roller that contacts the frame or misses the drive position.

The discussion of custom roller dimensions is relevant when the old sample and the equipment drawing disagree. Decide which dimensions have been verified on the conveyor and which depend on supplier interpretation. Resolve the uncertain interfaces before the roller is accepted for manufacture.

External Interroll roller information separates materials and components such as shafts, tubes and bearings. That component-level approach is useful for understanding a technical offer. Interroll’s individual product capabilities and qualifications remain its own; they should not appear as claims about a GRAM assembly.

Cleaning changes require a fresh stainless assembly assessment

A cleaning change can require a fresh roller assessment even when the conveyor itself is unchanged. If a plant introduces a stronger detergent, a warmer rinse or longer contact time, provide that update with the replacement enquiry. The stainless tube description should be assessed against the revised exposure rather than treated as a permanent approval for every cleaning process used at that location.

One practical comparison is a roller cleaned by wiping against a roller beside a frame junction that retains rinse water. They may use the same tube, but the end assemblies see different conditions. Ask the supplier to explain the proposed protection for each location. Keep the response attached to the material declaration so the buyer can see whether the offered assembly addresses the observed exposure.

When hygiene is part of the customer’s requirement, have the customer identify the actual acceptance criteria. Stainless appearance is not a food-contact declaration, a hygienic-design approval or proof of a cleanable assembled interface. GRAM’s material range can support a stainless enquiry, but the purchase must still obtain whatever product-specific documents and design review the customer’s process requires.

Mixed-material assemblies deserve particular clarity. If an exposed fastener, shaft surface or end component uses a different material, name it in the proposal. The buyer can then ask whether the combination is appropriate for the stated wet environment. This is more informative than extending the tube’s stainless description to every component without checking the actual assembly.

Receiving checks should preserve the declared stainless construction

At delivery, match the identification and supplied documents to the approved material declaration. Inspect the tube, shaft and end components for damage or signs of substitution. Check rotation and installation dimensions on the delivered assembly. If the material evidence identifies only the tube, do not extend it to the rest of the roller without confirmation.

Agree a packing arrangement that prevents metal-to-metal rubbing at the finished running surface and protects the bearing ends during transit. Keep any supplied surface or handling instructions with the roller identification. These requirements are particularly relevant when stainless replacements arrive mixed with other steel rollers and the intended installation positions could otherwise be confused.

The decisive approval is not the word stainless on the quotation. It is agreement between the plant’s cleaning routine, the declared materials of the complete assembly and the conveyor’s mounting requirements. If those agree, the purchasing team has a defensible basis for comparing the offer. If they do not, obtain the missing component or exposure information before selecting the replacement.

/by

Keeping Stock Rolls Distinct with a Rubber Conveyor Belt Supplier

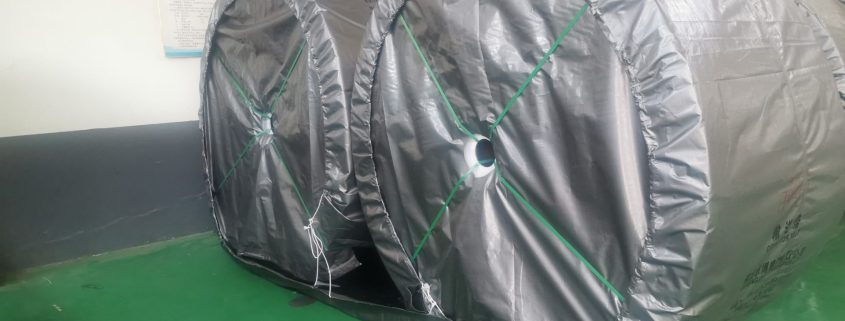

Wrapped GRAM belt rolls requiring identification of the actual supplied construction and form

Two black belt rolls arrive together. Their widths look alike, and neither looks unusual through the wrapping. For a distributor, that resemblance is precisely the danger: a rubber conveyor belt supplier may be supplying different reinforcement and cover constructions for different machines. Start with GRAM’s rubber conveyor belt range, then keep the construction, approved duty and destination attached to each roll. The first stocking decision is whether two belts are genuinely interchangeable, not whether they fit on the same shelf.

A quarry replacement buyer and a regional parts distributor approach this problem differently. The quarry needs one belt to match a particular conveyor. The distributor may hold several constructions for different customers and cut them into shorter lengths later. Both need an identity that survives receiving, storage, cutting and dispatch. Colour and outside appearance cannot provide that identity.

Ask the Rubber Conveyor Belt Supplier to Separate Cover and Carcass Identity

Rubber describes the working and protective surfaces of many industrial conveyor belts. It does not identify the reinforcement carrying the longitudinal tension. GRAM’s product families include fabric-reinforced and steel-cord belts, with separate EP, NN and heat-resistant routes. Write those distinctions into the stock description before comparing an available roll with the requested one.

EP Fabric and NN Fabric Belong on Different Stock Lines

GRAM’s EP rubber belt construction uses polyester in the longitudinal fabric direction and nylon in the transverse direction. Its described arrangement includes a top rubber cover, fabric carcass and bottom rubber cover. The NN rubber belt family uses nylon in both fabric directions. These are construction identities, not complete approval specifications.

An EP designation does not establish the number of plies, cover thickness, belt width or suitable pulley arrangement for every order. Likewise, an NN label does not make all NN belts equivalent. A distributor should keep the full approved construction beside the family name. Otherwise an operator can select the correct material abbreviation while still receiving the wrong belt for the machine.

Imagine two aggregate plants requesting a similar width but retaining different pulley layouts and tensioning equipment. Their rolls should remain separately assigned until the complete constructions have been approved for both installations. Consolidating those orders simply because both requests say “rubber belt” removes information needed for the final selection.

A Steel-cord Belt Is Not a Stronger Version of the Same Fabric Stock

GRAM’s steel-cord conveyor belts use longitudinal steel reinforcement. Changing from fabric to steel cord affects more than the wording on an inventory line. The proposed splice system, belt construction and compatibility with retained equipment need their own engineering agreement.

If a purchasing agent is offered a steel-cord roll because it is available, its tensile reinforcement should not be treated as permission to substitute it for a fabric belt. The installation team must know what joint construction will be required and whether the conveyor has been assessed for that belt. An apparently favourable strength description can create a replacement that the planned joining operation cannot use.

Keep steel-cord stock identifiable without opening or damaging the protective wrapping. A reference to the reinforcement and the approved order documents is more useful than an informal description such as “the heavy black roll.” If a retained sample accompanies the order, label it with the same reference and its intended comparison purpose.

Parallel steel cords on a conveyor belt production line, illustrating a reinforcement family distinct from textile belts
Longitudinal steel reinforcement should remain distinct from fabric belt stock and its joining requirements.

The Rubber Conveyor Belt Supplier Should Name the Intended Cover Duty

The carcass and covers answer different questions. A reinforcement label identifies the structural route; a cover description addresses the material contact and operating exposure. Neither can safely replace the other in a distributor’s stock record. A complete proposal should describe both before a roll is reserved for a customer.

Heat-resistant Rubber Stock Needs Its Own Application Limits

GRAM lists HR rubber belts separately. That provides a product route for reviewing a hot-material application, but it does not establish the permissible temperature for an unidentified roll. The buyer still needs the proposed cover construction and its stated operating limits.

For a cement maintenance order, record the exposure the supplier must evaluate: the material condition, whether loading is intermittent, the contact pattern and the conveyor’s actual operation. A roll reserved for that duty should not lose its cover identity when placed beside a general replacement belt. Conversely, a fabric carcass name should not be taken as proof that its covers are suitable for hot material.

The useful stock distinction is the approved application and supporting document, not an invented universal heat category. If a customer asks to use the same roll on another hot conveyor, compare the second duty with those limits rather than relying on the fact that both plants handle clinker or ash.

Continental’s textile belt overview also distinguishes fabric constructions and cover options. Its products and performance claims belong to Continental. The general purchasing principle is simply to retain separate descriptions of reinforcement and covers when identifying a complete belt.

Black Rubber Appearance Does Not Confirm Oil or Chemical Suitability

A distributor may receive a request to move a reserved roll from an aggregate conveyor to a line exposed to oily material. The outside colour cannot resolve that change. Identify the actual contact substance, temperature and exposure, then obtain confirmation for the proposed rubber compound. Do not extend one approved application into a blanket resistance claim.

Where the required compound is not identified in the available documents, keep the substitution unapproved. A purchasing delay is visible; an unsuitable cover can remain unnoticed until after the roll has been cut and fitted. The stock record should make that unresolved compatibility question explicit rather than conceal it inside a broad product description.

Reserve Replacement Rolls by Conveyor Duty, Not Only by Width

Width is easy to compare in a warehouse, but it is only one part of the installation decision. Retain the ordered length, reinforcement, ply or cord construction, cover details and joining requirement with the machine reference. Any difference between requested and offered construction should be reviewed before the stock allocation is released.

For a regional distributor serving several quarry operators, an order number alone may be insufficient if the same customer owns several conveyors. Add the conveyor identifier or agreed equipment description. That prevents a perfectly legitimate roll for one position from becoming an apparently approved spare for every line at the same site.

A replacement reserve also needs a clear distinction between uncut roll length and usable installation length. The joining method may require material beyond the operating belt length. Let the joining plan determine the allowance; do not apply an arbitrary allowance to all fabric and steel-cord constructions. Keep the approved cutting instruction attached to the reserve.

Construction reference
Identify EP, NN or steel cord together with the actual ordered construction and cover description.
Destination reference
Identify the customer’s conveyor and the application against which that construction was approved.
Cutting reference
Preserve the agreed usable length, joining allowance and direction or surface information relevant to that belt.
Release reference
Record whether an offered alternative is approved, pending technical review or unsuitable for the intended position.

These references should remain linked rather than live in separate conversations. A short stock label can point to the complete order record; it does not need to reproduce an engineering file. What matters is that staff can retrieve the correct file without guessing which of several similar rolls the label means.

Preserve Belt Identification When Wrapping Is Opened or Material Is Cut

Opening a roll changes the information boundary. A supplier’s label may remain on the outside wrapping while a cut section moves to another area. Before cutting, identify how the cut piece and remaining roll will retain their connection to the approved construction. This is particularly important when one received roll supplies several replacement lengths.

Black conveyor belt roll held on belt handling equipment with a free belt length extending away
A free belt length needs its own identity once it is separated from the labelled roll.

The photograph illustrates belt handling equipment, not a prescribed cutting or lifting method. Use the roll’s actual mass, support arrangement and handling instructions to plan movement. A picture of a similar roll does not establish the lifting equipment, core capacity or safe restraint for the received consignment.

Before dispatching a cut piece, check that the paperwork describes the piece being supplied rather than the original total roll. Keep any remaining length distinguishable from a new full roll. If measuring or cutting changes the available length, update the reserve immediately so another customer is not promised material that has already been allocated.

Where the top and bottom covers differ, retain the agreed working-face identification on the cutting and installation documents. A loosely rolled piece can be turned during handling, and appearance alone may not reliably distinguish its two faces. Ask how the supplied belt identifies the carrying surface and how that identification should be preserved after cutting. A receiving team should not create its own interpretation from surface shine or from which side happens to face outward on the pallet.

This is especially relevant when a distributor supplies a fabric belt section to an installer who did not receive the original roll. Send the approved construction reference and face information with that section, not only with the warehouse copy of the delivery note.

A distributor should also separate visible receiving damage from an approved manufacturing feature. A crushed edge, damaged wrapping or evidence of an unsupported roll warrants a recorded inspection against the supply documents. Do not automatically accept it as harmless merely because the centre of the belt surface looks undamaged.

For transport, agree which part of the roll the proposed supports and restraints contact. The arrangement should avoid creating local damage to edges or covers and should remain compatible with the roll’s intended handling method. These are order-specific packing requirements to agree with the supplier, not a claim that every belt family is delivered in one standard package.

Fabric Belt Cut Ends Should Retain Their Construction Reference

An exposed cut end may help a qualified inspector compare the received construction with the order, but it is not a substitute for the specified technical record. Preserve a clearly identified sample if the inspection or joining agreement calls for one. Do not remove material needed for the installation simply to create an informal demonstration sample.

If the original roll is split for two orders, a sample from one end should not become evidence for another construction stored nearby. Keep the sample reference, cut-piece reference and supplier’s document reference together. This avoids a deceptively convincing acceptance discussion built around the wrong piece of belt.

An Available Rubber Belt Roll Still Needs Substitution Approval

Urgent orders create pressure to treat availability as suitability. A plant buyer may accept an alternate roll because production has stopped, while the distributor assumes that matching width is enough. Name every changed part of the construction and ask the responsible engineer to assess its consequence for the actual machine.

GRAM’s existing explanation of rubber belt cover grades helps frame the cover discussion. Use it alongside the actual order proposal; general guidance cannot approve an unnamed stock roll or replace construction-specific compatibility evidence.

Reserve the roll only after its identity and intended destination agree. If its reinforcement, cover duty or joining requirement remains uncertain, keep it separate from the customer’s approved spare. The most useful stocked belt is the one the receiving team can identify and the installation team can use for the agreed conveyor without discovering a hidden substitution after cutting.

/by

Discuss Reel Access with a Steel Cord Rubber Conveyor Belt Supplier Before Ordering a Long Length

Parallel steel reinforcement cords positioned along a conveyor belt production line

A long replacement belt can be correctly specified yet arrive in a form the site cannot receive or install. Before approving an order with a steel cord rubber conveyor belt supplier, establish the unloading area, the route to the conveyor and the installation arrangement. Start with GRAM’s steel-cord range, but ask for the proposed delivery form alongside the belt construction. Industrial project buyers need an accepted belt length and a workable arrival plan, not an assumed reel hidden behind a quotation for metres of belting.

The steel cord rubber conveyor belt supplier needs the arrival constraints early

Describe the site’s actual access before the supplier commits to a delivery proposal. Identify where the delivery vehicle can stop and where the belt will be received. The competent site team should determine what the available handling equipment can accommodate. Purchasing should communicate those requirements without turning a general product photograph into an assumed unloading method.

The receiving area and installation position are different locations

A project may have ample space at its central receiving yard and restricted access near the conveyor. Approval at the yard does not resolve the route between them. The proposed delivery unit needs to be assessed against both locations, any intermediate storage position and the accepted means of moving it through the site.

Consider a replacement for a long mining conveyor whose access road reaches the workshop but not the intended installation position. The purchasing team should bring the installation contractor into the delivery discussion before fixing the belt lengths. An arrival plan that ends at the workshop can leave the project with a second handling problem that no one priced or reviewed.

For a plant receiving several replacement belts together, separate the access requirements for each destination. A common delivery vehicle does not mean each reel can follow the same route or be held in the same location. Keep the proposal specific to the supplied units and their intended installation positions.

Ask for the actual reel information, not a standard-package assumption

GRAM’s steel-cord photographs show longitudinal steel reinforcement, while its rubber belt range includes textile and steel-reinforced constructions. Neither establishes the dimensions or gross mass of a proposed shipping reel. Those values must come from the actual belt and packaging proposal.

Reel envelope, gross mass and handling interface answer separate questions

The outer envelope is relevant to available space and the access route. Gross mass concerns the complete supplied unit, including its packaging. The handling interface concerns how that particular unit is intended to be received and moved. Asking only for the belt’s nominal width leaves the other two questions unanswered.

Fenner Dunlop’s handling guidance explains the importance of roll dimensions, gross weight and adequate handling equipment. Its package choices and numerical examples belong to that manufacturer. They do not establish GRAM’s packaging, core geometry or a safe lifting procedure for this delivery.

Receiving question Information needed from the proposed supply
Will the supplied unit fit the accepted route? Its actual external dimensions and the site’s reviewed route constraints.
Can the site receive and move it? Gross mass, identified handling interface and instructions for that unit.
Can it remain protected before installation? Agreed package and storage requirements for the supplied construction.

Require this information again if the belt length or construction changes during negotiation. A reel assessment based on an earlier offer cannot automatically cover a revised unit. Keep the accepted handling information tied to the final delivery schedule rather than stored as an unrelated attachment from the first quotation.

Wrapped GRAM belt rolls illustrating why actual delivery-unit dimensions must be confirmed
These existing roll photographs illustrate delivery form; they do not specify the package for a steel-cord order.

Long steel-cord delivery lengths can conflict with installation access

A buyer may prefer fewer delivered lengths because the installation plan involves fewer field joins. That preference is only one part of the decision. The proposed lengths still need to suit the approved handling and installation arrangement, while the belt construction and joining plan must remain technically acceptable.

Dividing the delivery changes more than the transport list

If a single proposed unit cannot be accommodated, ask the responsible engineering and installation teams to consider alternatives with the supplier. A division into shorter lengths introduces additional ends and potentially additional joints. It therefore changes the installation scope as well as the number of delivery units.

Do not let transport planning silently decide the joint arrangement. Identify which joins the accepted construction permits, where the work can take place and who will provide the applicable instructions. No universal delivery length or field-joint number can be inferred from the words steel cord. The accepted arrangement needs to relate to the particular belt and conveyor.

A contractor preparing a remote installation may have a different constraint from a plant with a large permanent belt-handling area. Describe that difference rather than ask both suppliers for an identical assumed reel. The useful quotation separates the finished belt requirement from the delivered lengths and the site work required to make those lengths usable.

The existing steel-cord splice discussion addresses construction compatibility at a join. Use it after the project identifies its installation arrangement. A correctly matched splice does not resolve an inaccessible unloading position, and convenient delivery units do not validate an unreviewed joint.

Fabric reinforcement is an engineering alternative, not a shipping shortcut

GRAM’s fabric belt range and EP construction provide different reinforcement routes. EP uses polyester longitudinal yarns and nylon transverse yarns, with rubber covers around its fabric carcass. That difference matters to the belt’s mechanical design; it cannot be treated merely as an opportunity to obtain a more convenient package.

If the buyer proposes moving from steel reinforcement to a textile construction, require the responsible designer to review the retained conveyor and intended duty. A price or handling comparison should follow that decision. The site’s restricted access does not itself establish that a fabric belt is suitable for a conveyor originally specified for steel-cord reinforcement.

Mining duty does not establish a universal reel or reinforcement choice

The mining belt offering provides an application starting point. It does not define the reinforcement, cover construction or shipping unit for every mine. Retain the specific ore duty, machine requirements and access conditions in the proposal rather than rely on a general mining label to answer all three.

Where an order includes more than one construction, distinguish the delivered units clearly. Similar external roll dimensions do not prove that the belts have the same reinforcement or belong to the same conveyor. The package identification needs to remain legible from receiving through storage and installation so the accepted construction reaches its intended machine.

The belt ends need protection through the agreed arrival sequence

The condition of a delivered end can matter to subsequent preparation and joining. Agree how the supplied ends and outer belt surfaces will be protected in the actual package. Ask who will check package condition on arrival and how the project will deal with visible damage before the belt is moved into its installation sequence.

GRAM rubber belt roll showing surfaces and edges that require the agreed handling protection
The order should identify what protection accompanies the actual supplied belt, rather than assume a package from this illustrative image.

That check should distinguish package damage from an accepted belt condition. Record a visible issue against the affected unit and seek the agreed disposition; do not conceal it by moving the reel directly into use. The article cannot determine whether a particular mark is acceptable or prescribe repair of an unknown construction.

If the belt will wait before installation, obtain its storage instructions as part of the supply agreement. The site should allocate a suitable position before the vehicle arrives. Do not transfer another manufacturer’s temperatures, rotation intervals or ultraviolet claims to GRAM merely because both products are rubber belts.

Identify the belt end needed first in the installation sequence

The installation team should establish how the supplied length will enter the accepted arrangement, including which end it needs available first. Ask for the delivered unit’s identification and end arrangement to match that plan. A roll can be correct in total length while still requiring an unplanned handling step if its delivered orientation has not been discussed.

If the site cannot resolve that sequence when the inquiry starts, keep it as a named installation decision. Do not substitute a familiar method from a previous textile-belt project for the actual steel-cord proposal. The belt, reel, protection and installation instructions need to be reviewed as the particular supply the contractor will receive.

For a multi-length order, state how the separate lengths are identified and how their intended sequence will remain visible after unpacking. An end number should connect to the project’s accepted installation information. Similar-looking wrapped reels are not a dependable way to determine which length belongs at which stage, especially when receiving and installation are performed by different teams.

Fix the delivery form before releasing the steel-cord order

The final agreement should connect the belt construction, the supplied lengths, the proposed delivery units and the installation arrangement. Confirm which information is settled and which still requires a site decision. A requested shipment date should not encourage approval of a reel whose dimensions or gross mass remain unknown.

For divided deliveries, identify the order in which units are required and the space available to hold them. A supplier’s ability to send several units together does not mean the site benefits from receiving them all at once. Discuss that sequence against the actual storage and installation positions; any delivery commitment still belongs to the agreed quotation.

Approve the long length only when the project can receive it, keep it protected and use it in the accepted installation plan. If those conditions cannot be met, resolve the delivery form with the engineer and contractor before the purchase is released. The best length on the order is the length the project can actually put to work without an improvised arrival plan.

/by

What an HDPE Conveyor Rollers Supplier Needs to Know About a Wet Plant Retrofit

Polymer conveyor roller assemblies with metal shaft ends

Water changes the roller replacement decision in a wash plant. A quarry operator looking for an HDPE conveyor rollers supplier needs a roller that fits the existing frame and survives the actual combination of spray, fines, loading and temperature. A corrosion-resistant shell is useful, but it does not establish the suitability of the bearings, shaft or complete assembly. Start with GRAM’s polymer roller range, then compare the offered construction with the steel rollers already installed.

The first information to provide is where the roller works: under the loaded carrying run, on the return side, beside a washing stage or downstream of a heated process. Record the shaft ends, mounting span and wet material conditions separately. Those details make it possible to discuss an actual replacement rather than an unspecified plastic alternative.

An HDPE conveyor rollers supplier needs the wash-water exposure map

A roller beside a spray bar faces a different exposure from one beneath damp aggregate after drainage. The former can receive repeated direct wetting; the latter may collect a paste of fines and moisture around the shaft ends. Describe whether the water comes from the process, rainfall, cleaning or several sources. Include where the deposits appear after a normal production shift.

A contractor replacing rusted steel rollers in a sand washing plant may reasonably consider a polymer body. However, visible shell corrosion and early bearing failure should not be treated as the same fault. If the roller body remains sound while the bearings seize, the replacement discussion must focus on the end assembly and contamination path. Changing the shell material alone can leave the original problem untouched.

HDPE bodies and protected bearing ends are separate decisions

GRAM describes polymer rollers with a machined tube or solid bar mounted on sealed precision bearings. The same range describes non-contact rubber seals and metal end caps, and discusses HDPE among the polymer materials. These are useful construction details, but the exact resin and arrangement must be confirmed for the offered roller. Do not assume every polymer roller in the range has an identical material specification.

Ask the supplier to identify what the wet fines can reach. The shell, bearing housing, seal and exposed shaft each have a different job. A drawing that shows only the outside diameter cannot answer whether a replacement will keep abrasive slurry away from the bearing. The description should connect the specified end protection with the actual contamination at that conveyor location.

Steel conveyor roller assemblies for comparison with a wet-line polymer replacement
Compare the complete existing steel assembly, including its mounting interfaces, with the proposed polymer replacement.

HDPE conveyor roller selection must preserve the frame interface

Material substitution should not silently alter the mounting span, shaft engagement or belt contact position. GRAM’s steel roller range provides the alternative body route; the main conveyor roller range explains shaft and bearing choices. Use those options to establish a common assembly drawing before comparing prices.

Shaft ends should match the wet plant’s existing brackets

Record the bearing-to-bearing body arrangement and the way the shaft is retained in the brackets. A shaft can appear compatible while its flats, projection or seating surfaces differ. If the contractor has to modify the brackets to fit the replacement, that becomes a conveyor alteration requiring its own approval. It should not be discovered when the shutdown has already begun.

Measure an unworn mounting interface where possible. A heavily corroded sample may no longer preserve the original seating dimensions. Compare several installed rollers or the equipment drawing rather than relying on the damaged example alone. Mark which measurements are verified and which still require confirmation so that the supplier can resolve them before production.

Carrying duty and return duty require different operating evidence

The loaded carrying run needs support appropriate to the material mass and belt geometry. A return roller instead meets the belt’s returning surface and any carryback that remains on it. A roller selected for one position should not automatically become the standard spare for both. Supply the operating position with the dimensions so the offered assembly can be evaluated in context.

A plant buying polymer replacements for restricted maintenance access should also compare complete assemblies. GRAM’s discussion of complete roller weight is useful for that separate handling question. A shell-only mass does not establish how the delivered roller will be handled, and a lighter assembly does not by itself prove equivalent loaded performance.

Keep heated transfers outside a simple wet-service assumption

A wet wash plant can still contain hot locations. Dryer discharge, hot returned material, radiant heat or an adjacent process may expose a roller to temperatures that differ from the general site conditions. Record the highest credible exposure at the roller, including periods when material accumulates or the conveyor stops. A corrosion-focused selection should not obscure this thermal requirement.

For example, a maintenance team may want one polymer spare across both an outdoor washing line and a conveyor close to a dryer. The common shaft size is useful, but it does not prove that the polymer construction suits both locations. Keep the heated position as a separate enquiry until the offered assembly’s temperature suitability has been documented.

Manufacturer literature from Rulmeca’s HDPE roller range illustrates why HDPE products must be understood as engineered assemblies. Its model-specific construction and performance statements belong to that manufacturer. They are a reference for the questions to ask, not a rating to transfer to a GRAM roller.

Compare polymer, nylon and impact rollers by the job at each location

GRAM’s nylon conveyor rollers offer another non-metal body route. Nylon and HDPE are different material choices; their names should remain explicit in the quotation. A request for a plastic roller is too broad if the purchase decision depends on the offered resin, body construction and environmental compatibility.

Steel remains a relevant comparison for loaded support and installations where the approved existing construction is already suitable. Polymer deserves consideration where the site’s wet or corrosive exposure motivates the change. Neither choice should be justified by a general statement that one material is always stronger, quieter or longer lasting. Compare the proposed assemblies against the same duty and frame dimensions.

Rubber-ring impact rollers for a loading zone distinct from ordinary HDPE carrying duty
Impact support at a wet material loading point remains a separate selection from normal carrying rollers.

At the point where stone or another heavy feed lands, GRAM’s rubber-ring impact rollers have a different working construction. Their rubber rings distinguish them from a plain polymer carrying surface. If the original damage begins at a transfer, review the impact support and material trajectory before expecting a body-material change to solve it.

Wet-line inspection should check rotation and end protection together

Before installation, compare the delivered shaft ends with the approved drawing and inspect the body for distortion or damage. Check that the end components are seated as specified and that the roller rotates without obvious rubbing or binding. These checks are tied to the actual assembly; they do not substitute for an agreed load or contamination test.

If trial replacements are installed, keep the operating comparison narrow. Observe the same belt position, material condition and maintenance interval. Record whether deposits form at the ends and whether rotation changes. Avoid comparing a clean new polymer roller with a worn steel sample in a different location, because that would not isolate the reason for the change.

Declare wet-line exposure and protect the polymer replacements

Wash-water changes should be declared before the HDPE order is repeated

A wash plant may change its water circuit without changing the conveyor’s mechanical drawing. Recycled process water can carry a different solids content from clean incoming water, and cleaning additives can create another exposure. Tell the supplier which condition the replacement actually faces. A roller accepted beside a clean spray should not automatically be reassigned beneath concentrated wash residue because the frame size is identical.

Keep water exposure separate from the material resting on the belt. A roller can be shielded from the bulk load while still receiving runoff at its ends. Conversely, a wet material stream may drain away before reaching the replacement location. Sketch the roller position in relation to the spray and drainage points so the offered end construction can be assessed against the relevant path.

If the buyer wants a trial rather than a full changeover, choose a position with a documented exposure and an accessible comparison. Use the approved installation procedure and retain a compatible spare. The trial should answer a stated question, such as whether the offered end arrangement remains free-running under the existing fines accumulation, rather than being described as proof of the life of all HDPE rollers.

For a distributor, record that wet-duty description alongside the frame dimensions. Otherwise, a successful replacement on one customer’s outdoor transfer may later be supplied for another customer’s heated wash line under the same stock name. The resin declaration and operating boundary belong to the assembly record, not only to the first customer’s original enquiry.

Agree how the rollers will be supported during shipment so that shafts, end caps and polymer bodies are not loaded against one another. Request packaging identification by mounting span and position, especially if carrying and return assemblies arrive together. The agreed arrangement should reflect the roller shape and the site’s handling equipment; it is not a standard packing promise.

Keep the polymer rollers away from unnecessary heat while awaiting installation, and follow the offered product’s storage instructions. Do not leave a pallet beside a heated process simply because its destination is a wet conveyor. Separate any units with damaged end protection or visible body distortion before they enter the shutdown work area.

For the wet-line order, the useful approval package is a matched frame drawing, a declared polymer construction and an exposure description that includes both water and heat. Once those three agree, the buyer can compare the proposed HDPE route with steel or nylon on the same basis. If one remains unresolved, keep that conveyor position out of the blanket replacement order.

/by

Give Your Mining Conveyor Idlers Supplier the Changed Load, Not Only the Old Roller

Steel conveyor rollers stacked with bearing ends and shaft interfaces visible

The old idler may fit its brackets perfectly and still be the wrong basis for a new order. A mining conveyor carrying more material, denser ore or a different operating speed needs its support duty reviewed before the purchasing team repeats the previous component. Give the mining conveyor idlers supplier the changed operating conditions first. GRAM’s conveyor roller range provides steel, polymer, impact and suspended support routes; the required assembly should follow the new duty and the retained conveyor geometry, rather than the appearance of the removed roller.

A mining conveyor idlers supplier needs the operating change in plain terms

Start with what changed and what remained fixed. An increased production target is not a complete idler requirement. Explain whether the conveyor is expected to carry more material at its previous speed, move at a revised speed or handle a different material. These changes affect different parts of the support assessment and should remain distinguishable in the supplier’s proposal.

More tonnes per hour can mean more load or more belt speed

If an ore plant increases output while keeping belt speed unchanged, the carrying duty may involve more material on each length of belt. The engineer should establish the intended loading, its distribution and the retained support spacing. Repeating a roller merely because its shaft fits does not answer whether the assembly is suitable for that changed duty.

A different project may achieve its intended output through a speed change. Here the buyer must supply the revised speed as well as the loading information. Roller rotation, bearing selection and operating resistance require an assessment of the complete construction. An unchanged material load should not hide the fact that the proposed roller would operate differently.

Keep three items separate in the inquiry: the carried material on a length of belt, the belt speed, and the distance between support stations. “Higher capacity” does not tell the supplier which of these has changed.

Denser ore can change the support duty without a fuller-looking belt

A mine changing its feed may retain a similar visible cross-section while carrying a different mass. Describe the material and provide the project’s accepted bulk-density information where available. A photograph of belt fill can show distribution, but it cannot establish density or replace the load information required for component selection.

For a procurement team supplying several ore streams, keep the intended material tied to each conveyor. An idler assessed for one stream should not be moved to another solely because both frames accept the same shaft. If density varies during operation, identify the conditions the engineer wants assessed instead of presenting an average as the only duty.

Steel mining idlers must be assessed as assemblies, not empty tubes

GRAM’s steel roller assemblies show cylindrical bodies, bearing ends and projecting shafts. Each of these belongs to the working component. A tube description alone does not establish the roller’s accepted loading, how its bearings are supported or how the shaft transfers forces into the retained brackets.

Keep the shaft support span distinct from the roller face

The face length identifies the working region supporting the belt. The locations at which the shaft is supported belong to the installed assembly. When the project increases duty, the designer needs both, together with the proposed shaft and bearing arrangement. A dimension copied from the rotating body cannot automatically stand in for the distance between shaft supports.

Ask the supplier to identify the complete offered roller against the approved drawing. Where the proposal changes the shaft, bearing arrangement or body construction, have that change assessed explicitly. A favorable description of steel strength is not an assembly rating, and a different bearing name is not evidence that the retained mounting arrangement is adequate.

The inquiry should also identify whether the order covers individual rollers or complete support stations. If the frame remains on site, its condition and load path belong to the engineering review. Buying a more substantial roller does not establish that the retained frame and its connection to the conveyor structure can carry the revised duty.

A polymer idler alternative needs the same changed-load question

GRAM’s polymer roller route describes a polymer body, precision bearings, non-contact rubber sealing and metal end caps. These are useful construction details for comparing proposals. They do not eliminate the need to establish the complete assembly’s suitability for the intended load, speed and support arrangement.

Polymer roller bodies and bearing ends to identify in a changed-load mining idler proposal
The offered polymer roller includes more than its body material; its bearing and end construction remain part of the assessment.

A mine may consider a polymer body because the operating environment makes that material route attractive. Separate that environmental decision from the load decision. Require the proposed assembly and its operating conditions to be stated together; do not carry an acceptance made for a steel assembly across to a polymer alternative by analogy.

Likewise, the sealing description addresses a particular part of the construction. It does not establish a dust-tight operating guarantee for every mineral stream or prove a bearing-life figure. Tell the supplier about dust, moisture and any contamination at the actual station, while the engineer reviews load and rotational duty as connected requirements.

Support spacing can make identical mining rollers do different work

The distance between carrying stations affects the length of loaded belt associated with each station. Supply the retained spacing and identify any planned changes. The supplier should not have to infer the installed arrangement from a loose roller on a workshop bench. A roller selected for one station layout is not automatically approved for another layout with greater spacing.

Professional component suppliers separate roller and frame information in their technical resources; Rulmeca’s bulk documentation is one example of that distinction. Those resources provide industry context, not load ratings for GRAM components. The project still needs an assessment using its own belt, material and support arrangement.

The centre and wing positions share a loaded-belt shape

On a troughed carrying run, the centre and wing rollers support different regions of the belt while contributing to one support profile. Identify the station geometry and which positions the proposal covers. An order should not treat all rollers of a similar visible length as interchangeable across those positions without the relevant drawing and duty review.

If the revised material spreads differently across the belt, include that change in the review. The buyer should avoid an order description that states only the total output while leaving the actual loading distribution unspecified. The supplier’s component proposal and the designer’s station assessment must refer to the same operating arrangement.

Impact and suspended idlers need position-specific acceptance

GRAM’s rubber-ring impact rollers have a working surface different from that of a plain steel roller. At a material landing point, describe the incoming stream and the support station beneath it. A revised carrying load farther along the conveyor does not, by itself, establish the impact requirement at the transfer.

Rubber-ring impact rollers for the separately assessed material landing station
The loading station requires its own review; a plain carrying-roller selection does not define the rubber-ring impact assembly.

If increased throughput changes the material reaching the landing area, assess that location separately. Ask which ringed diameter, shaft arrangement and station geometry the offer covers. Do not use a general impact-resistant label as a substitute for defining the assembly that supports the belt at that location.

A carrying garland transfers its load through suspension connections

The carrying garland range uses connected, suspended rollers. Its load path includes the links and suspension connections, rather than only individual rollers held in a rigid arrangement. A changed-load inquiry must therefore identify the complete set and the retained attachment points.

For a mine retaining suspended supports, ask the designer to assess those connections with the intended duty. Approval of a loose roller should not be presented as approval of the complete suspended set. A proposal to change support type also needs a station-level assessment; a garland and a rigid station are not interchangeable purchasing descriptions.

The mine’s duty description should include the loaded restart

A production increase can affect the condition left on the conveyor when it stops. Tell the responsible reviewer whether the intended operating sequence includes a loaded restart and whether that condition differs from the earlier duty. The supplier should know the conditions the project wants accepted; this article does not calculate their forces or authorize a revised operating sequence.

Where only part of the carrying run will be changed, mark those stations in the assessment. A newly accepted assembly at one location does not prove that every retained station elsewhere on the route is suitable for the revised load. Keep a local component replacement distinct from acceptance of the entire conveyor.

A repeat-order proposal should also distinguish the assembly selected for the ordinary carrying run from the one selected beneath a transfer. The rubber-ring working surface, rigid support geometry and suspended links describe different constructions. If the supplier combines them into one shipment, retain the position-specific technical acceptance for each instead of allowing a common delivery label to conceal the different duties.

Approve the mining idler duty before repeating the purchase line

Keep the supplier’s assessment attached to the conditions that justified it. If the plant changes the intended speed or material during the inquiry, return those changes for review before placing the order. Otherwise the final purchase can retain a component accepted for a duty that the plant no longer intends to operate.

At delivery, identify the assemblies by the accepted station positions. Protect projecting shaft ends, bearing regions and the working body during transport and handling using the agreed instructions. The package identification should allow the site to distinguish carrying, impact and suspended components; mixing these in an unmarked delivery can obscure the very position-specific acceptance the engineer established.

Once the changed duty is accepted, the shutdown replacement discussion can help check physical fit. Keep the two decisions in that order: first confirm what the roller must do, then confirm how the accepted assembly fits the retained frame. The old roller is useful evidence of an interface, not automatic permission to repeat the old duty.

/by

Heavy Duty Conveyor Belt Supplier: What the Damage Pattern Should Change in Your Next Order

Wrapped GRAM belt rolls requiring identification of the actual supplied construction and form

A quarry orders a thicker replacement belt, yet the same narrow cut returns beneath the loading chute. The order changed; the cause may not have changed at all. A heavy duty conveyor belt supplier should receive the damage pattern before proposing a different construction. For a maintenance buyer, start with GRAM’s rubber belt range, then distinguish damage to the carrying cover, damage reaching the reinforcement and damage on the underside. Those conditions do not automatically call for the same replacement.

The useful question is what the next belt must withstand on the actual conveyor. A heavier description cannot answer whether sharp material is cutting the cover, an object is trapped at a fixed position, the supporting structure is unsuitable or a retained component is damaging the returning belt. Record the location and operating circumstances before the damaged belt loses its connection to that evidence.

Give the Heavy Duty Conveyor Belt Supplier a Damage Location, Not Just a Failed Belt

A photograph of a torn belt is more useful when it identifies the carrying face, underside, edge and direction of travel. Add where the damage first appeared on the conveyor and whether it extends continuously or occurs in isolated areas. The same visible opening can lead to different investigations depending on those details.

A Narrow Carrying-cover Cut Needs a Different Investigation from Broad Wear

Broad thinning across the material contact area and a narrow repeated cut are different observations. Broad wear may justify reviewing the cover’s suitability for the material and its operating exposure. A cut concentrated at one transverse position also requires examination of what contacts that position. Do not turn either observation into a diagnosis from a single photograph.

Consider a quarry conveyor receiving sharp crushed stone. The buyer can describe the stone, loading arrangement and damage without pretending to know the appropriate rubber compound. If a gouge repeatedly follows one line, the inspection should also consider fixed contact, trapped material and the actual feed path. Increasing overall belt strength does not remove a contacting object.

GRAM’s rubber belt offering separates the outer rubber surfaces from fabric or steel reinforcement. That distinction matters here: a replacement request for a different cover needs a cover proposal, while a request for greater longitudinal strength needs a reinforcement proposal. The purchasing record should say which part of the previous construction is being changed and why.

Exposed Fabric or Steel Cord Changes the Replacement Discussion

Once damage exposes reinforcement, the discussion extends beyond the remaining cover. GRAM’s steel-cord belt construction uses longitudinal steel reinforcement. Its condition and proposed joining arrangement cannot be assessed by a cover thickness description alone.

A qualified inspection must establish the significance of damaged fabric or cord for the installed belt. This guide does not provide a permissible damage limit or permission to continue operating. Keep that decision with the responsible site personnel using the actual construction and condition. Buying another belt should not obscure a separate decision about the present conveyor.

Longitudinal steel reinforcement cords on a conveyor belt production line
The reinforcement carries a different responsibility from the rubber that protects it.

Ask the Heavy Duty Conveyor Belt Supplier Which Part of the Construction Will Change

A proposed replacement should identify changes to the cover, carcass and joining requirement separately. Otherwise an attractive specification can leave the original problem unresolved while creating a new compatibility question. Compare the complete offered construction with the retained equipment, rather than approving one stronger-sounding line.

EP and NN Fabric Identify Reinforcement, Not the Damage Resistance of Every Cover

GRAM’s EP rubber belts use polyester in the longitudinal fabric direction and nylon transversely. The described belt arrangement includes a top cover, fabric carcass and bottom cover. Its NN rubber belt route uses nylon in both fabric directions. These names distinguish fabric construction; they do not specify the complete cover compound for every order.

For a buyer replacing a fabric belt with carrying-surface cuts, changing the carcass abbreviation is not a complete response. Ask what cover is proposed for the observed material contact, and whether any change in plies, overall construction or joint requires an equipment review. Keep that cover decision visible instead of hiding it inside a general “heavy duty” description.

The same discipline applies if the failure is associated with tension or the joining region. Do not assume a tougher cover will correct a reinforcement or joint problem. Identify the observed failure and obtain a construction-specific assessment. EP and NN are useful starting routes when a textile belt is appropriate, but neither is an automatic approval for the retained conveyor.

Steel-cord Replacement Requires Its Own Joint and Equipment Agreement

Steel cord may be considered where the proposed duty calls for that reinforcement route. It should not be introduced merely because a fabric belt has been damaged. The cord arrangement, rubber construction, joining system and retained equipment must be considered together for the actual replacement.

A contractor planning to keep the existing joining arrangements should resolve that boundary before reserving a steel-cord roll. A different reinforcement can require a different engineering and joining proposal. The supplier’s belt offer and the installation team’s approved method need to refer to the same construction, not two similar descriptions exchanged in separate conversations.

Keep a sample or identification record tied to the damaged belt when it is available and safe to obtain. Its purpose is to preserve construction identity for assessment, not to prove the entire belt’s remaining condition. A small intact sample cannot establish that a damaged region elsewhere remains suitable for service.

Loading-zone Damage Can Require Support Changes Alongside the Belt Order

The replacement belt and the loading arrangement share the impact event. GRAM’s loading-zone belt support range includes beds, saddles and idlers. Reviewing that route is appropriate when the damage investigation identifies a support or material-contact problem beneath the receiving area.

For a plant that repeatedly replaces belt sections near the chute, identify where the material first contacts the belt and how that area is supported. The assessment should cover the material condition, loading geometry and actual support arrangement. A support change must itself fit the belt and retained structure; adding a bed is not a universal cure for damaged covers.

If the damage comes from a fixed sharp contact farther along the conveyor, changing loading-zone support will not address that contact. Likewise, a belt specification cannot resolve every chute or frame defect. The order can include separate corrective work, but the responsibilities should remain explicit: what changes in the belt and what changes in the conveyor.

Underside Damage Should Follow the Return and Pulley Contact Path

The underside meets equipment rather than simply carrying the conveyed material. If its damage occurs away from the receiving zone, inspect the rollers, pulleys and other retained contacts associated with that part of the circuit. Preserve enough location information to distinguish a returning-belt issue from carrying-cover damage.

An aggregate maintenance team may find a bottom-cover mark while the upper surface looks acceptable. The tempting response is to specify more rubber everywhere. First determine what produced the mark. A seized component, local interference or retained contact problem may remain in place after a thicker belt arrives. A changed belt can also change clearances, so the replacement must be reviewed around the actual equipment.

Conveyor belt roll on handling equipment with a free length extending from the roll
Record the two belt faces and construction before a removed length becomes an unidentified sample.

Martin Engineering’s explanation of top and bottom covers distinguishes the protective carrying surface from the lower surface involved in equipment contact. That general distinction helps organize an investigation; it does not diagnose this conveyor or establish a GRAM cover grade.

Edge Damage Should Remain Separate from a Centreline Wear Complaint

Record whether the damage reaches the edge, follows one side or changes with loading. Edge contact may involve the belt path and adjacent structure, while broad centre wear concerns a different region. Do not combine these observations into a single statement that the old rubber was inadequate.

The supplier can assess a proposed belt more effectively when the request describes the affected positions and the retained clearance. Corrective alignment or structural work may need separate approval. A stronger carcass is not permission to continue rubbing an edge against an unsuitable contact, and a new cover does not establish the cause of that contact.

When the edge has lost material, distinguish the measured remaining width from the originally ordered width. A worn edge is not a reliable drawing of the belt that the conveyor was designed to carry. Retrieve the accepted installation dimensions where possible, then record the damage separately. This prevents a replacement request from reproducing a damaged condition as if it were an intentional specification.

The same caution applies to cover thickness measured at a heavily worn location. The remaining rubber can help document the condition, but it does not necessarily identify the original cover specification. Ask the supplier to compare an identified previous construction with the proposed one, and make clear which observations came from the worn belt. The order should improve the duty match without disguising uncertain measurements as verified manufacturing dimensions.

Make the Replacement Proposal Traceable to the Failed Construction

The technical comparison should identify the old construction, proposed construction and reasons for each change. Where the old details are uncertain, mark them as uncertain instead of converting a visual estimate into an approved specification. This allows the supplier and responsible engineer to resolve the actual unknown.

For a textile replacement, the relevant comparison includes reinforcement identity, specified ply arrangement, covers and joining method. For steel cord, it must retain the proposed cord construction and joint requirements. Requested dimensions should belong to that same proposal. Do not approve a cover change against one document and order reinforcement against another without confirming that they describe one complete belt.

Receiving checks should follow the approved changes. If a different cover was the reason for replacement, obtain the identifying construction documentation for that offered belt. If the carcass changed, retain its agreed identification and joining information. Neither a dark rubber surface nor an impressive roll size demonstrates that the intended change has actually been supplied.

For the quarry’s repeated narrow cut, write the corrective contact investigation beside the belt revision. If the identified obstruction is removed, that action and the revised cover proposal have separate evidence. If the obstruction remains unresolved, a different belt cannot be credited with correcting it before installation. This separation gives the buyer a practical way to question a proposed upgrade: which identified condition does this construction change address, and which condition still requires work on the conveyor?

Transport instructions also need to match the replacement roll. Agree its handling and support requirements from the actual mass and supplied construction, and protect the edges and faces that will be inspected. Do not assume the new roll can use the previous roll’s supports simply because the ordered width is similar. Preserve its identity through receiving and installation so the replacement can be linked to the accepted proposal.

The existing heavy-duty belt buying guide provides the broader construction discussion. For a repeat failure, carry the damage record into that discussion first. Release the next order when the proposed belt change and the conveyor correction address the identified conditions together; otherwise the replacement may inherit the same unresolved contact that damaged the previous belt.

/by

Mining Conveyor Rollers Supplier: Matching a Shutdown Replacement to the Existing Frame

Steel conveyor rollers stacked with bearing ends and shaft interfaces visible

A shutdown date can be fixed while the replacement roller specification is still uncertain. For a mine maintenance planner, the useful mining conveyor rollers supplier is the one that can match the installed frame, the duty at each position and the operating environment—not merely offer a tube with the right outside diameter. Start with GRAM’s steel conveyor rollers for the carrying positions, then separate impact, suspended and tracking components before releasing the order.

Give the Mining Conveyor Rollers Supplier the Installed Frame Interface

The roller shell is visible, so it often becomes the first dimension recorded. The installation interface is less obvious but can stop the replacement from being fitted. A shaft may have flats, slots or another end arrangement that locates it in a particular bracket. The face length, overall shaft length and distance between supports describe different things. Put them on one marked drawing rather than sending several photographs with an unlabelled length.

For a contractor replacing an old idler bank, the complication may be inconsistent modifications along the conveyor. One frame has been repaired, another has a different retaining arrangement, and a third has been moved to accommodate a chute. Treat those positions as separate interfaces until measurement shows that they are interchangeable. Do not turn a mixed installation into a single stock item by averaging its dimensions.

Steel Roller Shafts Must Seat in the Existing Brackets

GRAM’s steel roller range is relevant to carrying heavy material, but a steel shell alone does not establish fit. Confirm where the shaft bears on the bracket, how it is retained and whether removal clearance remains available after the belt is supported. A change in shaft length can affect both installation and access. An apparently stronger roller can be awkward to replace if the revised shaft cannot be lifted out of the existing frame.

When the old component is badly worn, measure an unworn representative from the same position as well. A damaged shaft end, distorted bracket or worn retaining slot should not become the reference geometry for a new production batch. If the frame needs repair, decide whether the order will reproduce the original interface or match a deliberately revised frame. Those are different engineering instructions.

Mark the roller face relative to both shaft supports, not only its total length. An offset face can place the working surface differently under the belt even when the overall shaft length appears correct. On a troughing station, the centre and wing positions may also have different interfaces. Keep their drawings and quantities separate until the responsible engineer confirms interchangeability. This avoids opening a shipment of apparently identical steel rollers and discovering that only one position can use them.

For a replacement sample, request identification that follows the approved drawing revision and conveyor position. A photographed shaft end should carry an orientation label so the supplier can distinguish the drive-side view from the opposite end. Retain that labelled reference with the order. If a later clarification changes a flat, slot or retaining detail, update the drawing rather than relying on an email instruction that the receiving crew may never see.

The Rulmeca conveyor roller catalog separates roller diameter selection by speed from roller selection by load. That distinction is useful here: matching the visible diameter is a compatibility check, not a complete load assessment.

Which Mining Conveyor Rollers Belong in the Shutdown Order?

A mine conveyor contains different support duties. Carrying rollers support the loaded belt, loading-zone rollers experience incoming material impact, and suspended sets have their own connection and movement requirements. The replacement list should identify these positions explicitly. Buying one roller construction for every location can leave the transfer point under-protected while adding unnecessary cost elsewhere.

Separate the installed positions before combining quantities
Position being replaced GRAM family to examine Interface that needs agreement
Regular carrying position Steel conveyor roller Face length, shaft ends, bracket support and rated duty
Material landing zone Conveyor impact roller Working diameter over the rings, support arrangement and impact duty
Suspended carrying station Carrying garland Connections, suspension points and assembled geometry
Tracking correction station Self-aligning idler Frame movement, belt contact and installation position

Impact Roller Rings Belong Where the Material Lands

GRAM’s conveyor impact rollers support the belt where incoming material creates an impact load. Their rubber-ring construction should be considered together with the material landing position. The working diameter over the rings, their arrangement and the support below the belt matter; the steel tube diameter underneath is not the whole installed dimension.

Consider a quarry transfer where coarse material falls onto a short bank of rollers. If the most damaged components sit immediately below the material stream, the replacement question is not simply whether to buy thicker carrying rollers. Review the loading arrangement, impact support and belt protection together. An impact roller can address a support duty; it cannot correct a badly positioned chute or remove oversize material from the feed.

Rubber-ring impact rollers arranged together, showing the working surface and exposed shaft ends
The ringed working surface is part of an impact roller’s installed diameter. Identify the complete assembly when requesting a replacement.

Carrying Garland Connections Are Part of the Replacement

The carrying garland range is a different assembly from a set of independently mounted rigid rollers. Its linked arrangement provides a suspended carrying station. The connecting pieces and suspension interface therefore belong in the order, not in a later discussion after the rollers have been delivered.

Photograph a complete installed garland from a safe position, mark the conveyor direction and record which connecting parts will be retained. If only the roller bodies are being replaced, establish that the retained connections are suitable. If a complete assembly is intended, list that clearly. A photograph of a garland laid on the ground does not, by itself, define its installed geometry or suspended operating envelope.

Red carrying garland rollers with linked suspension connections visible beside the shaft ends
For suspended carrying stations, identify the connections as well as the roller bodies. A linked set is not specified by tube dimensions alone.

A Mine Roller Bearing Arrangement Must Match the Contamination Route

Dusty ore handling, wet fines and intermittent washdown create different conditions around roller ends. Record what reaches the bearing area: airborne dust, slurry splashing from below, material carried back on the return belt or cleaning water directed across the frame. The material name alone is not enough to describe those exposures.

GRAM’s polymer rollers provide a relevant construction to compare: a machined polymer tube or solid bar, sealed precision bearings, non-contact rubber seals and metal end caps. These are construction details, not a blanket guarantee for every wet or abrasive mine. The buyer still needs the proposed assembly’s allowable load, speed, temperature and chemical exposure confirmed for the intended position.

Polymer Tubes Need the Same Load and Bearing Review as Steel Tubes

A lighter roller body can be attractive where maintenance access is difficult. It does not remove the need to establish the duty on the bearing and shaft. Compare the proposed polymer construction with the installed steel assembly using the same position, belt speed and support geometry. Otherwise the decision becomes a comparison of material names rather than of complete rollers.

Ask for a section drawing that identifies the bearing, sealing arrangement and end cap. If the order changes the tube material but retains the shaft interface, show that relationship explicitly. If it changes both, assess both changes. The Metso heavy-duty roller brochure illustrates how sealing and runout are treated as distinct design considerations. Its proprietary construction belongs to Metso; it is not a specification or performance claim for a GRAM roller.

Do not write a promised service life into the comparison without an agreed basis. Actual life depends on the duty, contamination, alignment and handling as well as the component. A supplier’s construction drawing and the mine’s failure observations can support a better decision than an unsupported statement that one material always lasts longer.

Separate Mine Belt Tracking Problems from Worn Roller Replacement

A seized or damaged roller can affect belt travel, but replacing it does not prove that the frame, loading pattern and belt alignment are correct. Before adding tracking equipment to the same order, identify whether mistracking is local to a damaged support or persists along several stations. That distinction affects which GRAM products deserve consideration.

Self-aligning Idlers and Guide Rollers Perform Different Jobs

GRAM offers both self-aligning idlers and guide rollers. A self-aligning assembly provides a tracking-related support arrangement; a guide roller contacts and guides the belt at its designated location. Neither should be treated as a universal substitute for correcting skewed frames, uneven loading or damaged belt edges.

A maintenance planner may find that only one transfer area mistracks after a feed change. In that situation, examine the material landing pattern and surrounding supports before replacing every station with a tracking device. If a self-aligning assembly is selected, confirm its permitted movement and clearance. If a guide roller is selected, identify its contact surface and position without assuming that continuous force against an already damaged edge is acceptable.

The Sandvik conveyor components application brochure distinguishes component functions across a conveyor system. It supports a position-by-position review; its models and ratings must not be substituted for the proposed GRAM equipment.

Release the Roller Order in the Sequence the Shutdown Can Use

First agree the fit-critical drawing for each distinct position. Then agree which assembly is being supplied, which parts remain on the conveyor and which checks demonstrate conformity. For a steel carrying roller, that may mean the shaft-end geometry and shell dimensions. For a garland, it includes the assembled connections. For an impact roller, it includes the working ring arrangement.

Identify the dimensional checks on the approved drawing and agree the inspection record before shipment. Runout or starting resistance limits, where required, should be supplied by the responsible engineer or agreed technical specification; this guide does not assign universal acceptance values. Avoid requesting an impressive-sounding test that has no defined method or connection to the actual failure risk.

Packaging must preserve those fit-critical features. Ask how shaft ends will be protected, how ringed rollers will be supported and how linked garland sets will be identified. Agree separate package labels for carrying, impact and suspended positions. Record these protection measures and labels in the order instead of assuming that a particular packing arrangement is included.

For the shipment plan, distinguish production completion from dispatch, transport and receipt at the mine. A shutdown order needs an agreed receiving window and time to check the delivered interfaces. No general product description can confirm that window. If a sample or first assembly is needed for a trial fit, make that approval stage explicit before the full quantity is released.

Physical measurement and trial fitting must follow the site’s isolation procedures. The Occupational Safety and Health Administration’s hazardous-energy guidance explains the importance of controlling energy during maintenance. Apply the mine’s local requirements and approved work procedure; photographs or measurements never justify reaching into an operating conveyor.

For a wider view of the installed components, GRAM’s mining conveyor belt roller overview explains the roller families, while the coal-mining steel tube return roller article addresses a different belt position. Use that context to identify the assembly, then return to the measured frame drawing.

Before the shutdown order is approved, the maintenance planner should be able to place the replacement drawing beside the installed frame record and explain every difference. If the shaft ends, retained connections or roller position are still ambiguous, resolve them while the conveyor is available for a controlled inspection—not when the replacement pallets are opened beside a stopped production line.

/by
