The Importance of Impact Load Zone Belt Support

Conveyor belt systems are the lifeline of a myriad of industries, from mining and manufacturing to logistics and beyond. These complex systems, composed of numerous mechanical parts, are designed to transport materials efficiently and continuously over varying distances. At the heart of these systems is the conveyor belt, a critical component that demands utmost care and attention. Preserving the integrity and efficiency of a conveyor belt is of utmost importance. The belt is constantly subjected to various forces and loads, especially at impact load zones where materials are loaded onto the belt. This continuous impact can lead to wear and tear, reducing the belt’s lifespan and efficiency. A damaged or inefficient belt not only leads to increased downtime and maintenance costs but can also pose significant safety risks and productivity losses.

Online Consultation or Need a Quote?

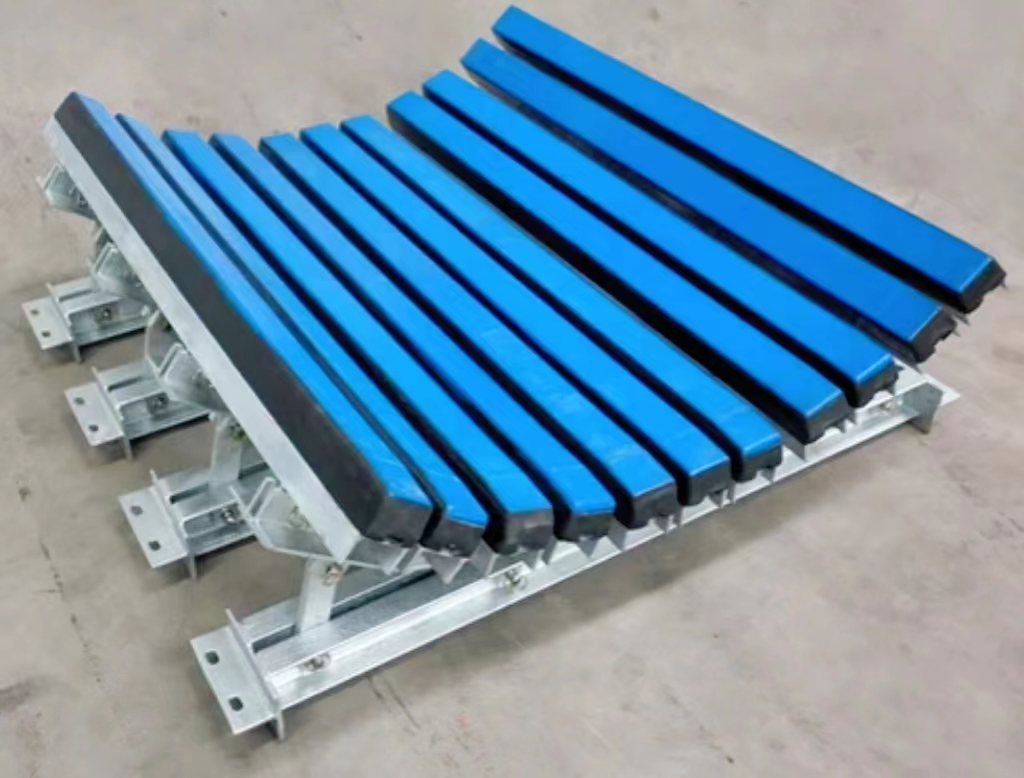

The Role of Impact Load Zone Belt Support

In conveyor systems, the impact load zone is a critical area where materials are dropped onto the belt, often from a significant height. This zone is subjected to the most stress due to the high impact forces exerted by falling materials. The severity of these impacts can lead to significant wear and tear if not properly managed. This is where Impact Load Zone Belt Support systems become essential.

Impact Load Zone Belt Support systems typically consist of specialized components such as impact beds, saddles, and idlers, all meticulously designed to absorb the impact of the materials being loaded onto the belt. These supports play a crucial role in distributing the force evenly across the belt’s surface, preventing the creation of concentrated stress points that could potentially damage the belt. By evenly distributing the load, these systems help in mitigating the risk of punctures, rips, tears, and premature wear.

Proper support in the impact load zone is paramount for maintaining the longevity and efficiency of a conveyor belt. Without adequate support, the belt is vulnerable to significant damage, leading to frequent repairs or replacements. Such damages not only incur high maintenance costs but also result in unplanned downtime, severely affecting the overall productivity of the operation. Efficient impact load zone support systems minimize these risks by providing a robust protective layer that absorbs and disperses the impact forces, safeguarding the belt from direct damage.

Moreover, these support systems play a vital role in maintaining the alignment and tension of the belt, which are critical for smooth and uninterrupted operation. Misalignment and improper tension can lead to operational inefficiencies and further wear and tear on the conveyor belt. By ensuring proper alignment and tension, impact load zone support systems contribute to the seamless functioning of the conveyor, reducing the likelihood of breakdowns and enhancing overall efficiency.

Investing in high-quality impact load zone support systems is not just about protecting the conveyor belt; it is about optimizing the entire material handling process. These systems are designed to prolong the life of the conveyor belt, making the operation more cost-effective and reliable. By minimizing the need for frequent maintenance and reducing downtime, they help in achieving higher productivity and operational efficiency.

Impact load zone belt support systems are an invaluable investment for any operation that relies on conveyor systems. They ensure that the conveyor belt remains in good condition for a longer period, providing a stable and efficient material handling process. By absorbing and evenly distributing impact forces, these systems protect the belt from damage, maintain its alignment and tension, and ultimately, contribute to a smoother, more reliable, and cost-effective operation.

The Role of Impact Load Zone Belt Support

Advantages of Impact Load Zone Idlers

In the realm of conveyor systems, the continuous dropping of materials can create significant stress points on the conveyor belt, leading to accelerated wear and tear. Gram’s idlers play a critical role in mitigating these issues by providing a cushioning effect that evenly distributes the forces exerted by falling materials. This even distribution of impact greatly reduces the risk of damage to the belt, ensuring its longevity and efficient operation.

One of the primary benefits of using Gram’s idlers is their ability to reduce belt wear. Without proper cushioning, the constant impact of materials can cause severe stress points, leading to rips, tears, and other forms of wear. Gram’s idlers absorb these impact forces, minimizing direct stress on the belt and significantly lowering the likelihood of damage. This protective cushioning helps maintain the belt’s integrity, reducing the need for frequent repairs or replacements, and thus cutting down maintenance costs.

In addition to reducing belt wear, Gram’s idlers are instrumental in preventing belt sag. Conveyor belts can sag between idlers if not adequately supported, leading to material spillage and potential belt damage. Sagging belts also disrupt the smooth flow of materials, causing inefficiencies in the transport process. By providing robust support, Gram’s idlers ensure that the belt maintains its optimal shape, which is crucial for efficient material transport. This consistent support prevents sagging, keeps the belt aligned, and reduces the risk of spillage, thereby enhancing the overall efficiency of the conveyor system.

Safety in material loading operations is another significant advantage of Gram’s impact saddles and idlers. These components provide a stable and secure platform for material loading, reducing the risk of spillage and the associated hazards. In high-capacity loading operations, where large volumes of materials are handled, this stability is essential for maintaining a safe working environment. The secure platform not only protects the equipment from damage but also ensures the safety of personnel working in close proximity to the conveyor system.

Furthermore, Gram’s idlers contribute to the overall operational efficiency of the conveyor system. By maintaining the belt’s optimal shape and alignment, they ensure that materials are transported smoothly and efficiently. This leads to fewer disruptions and a more reliable conveyor operation, which is vital for meeting production targets and maintaining high levels of productivity.

Gram’s Impact Saddles and Idlers offer a comprehensive solution for enhancing the longevity, efficiency, and safety of conveyor belts. They are designed not only to prolong the life of the conveyor belt by reducing wear and preventing sagging but also to improve the overall safety of the material loading process. By investing in high-quality impact saddles and idlers, operations can achieve more reliable, efficient, and safe conveyor systems, ultimately leading to improved productivity and reduced operational costs.

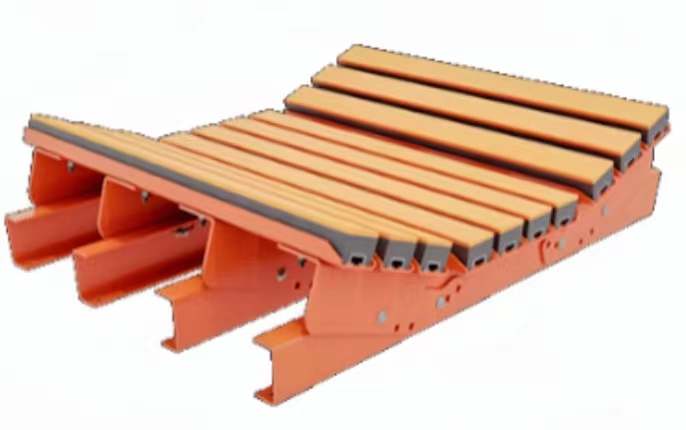

What is the Significance of Impact Load Zone Belt Support?

Impact Load Zone Belt Support systems are critical components of conveyor systems, specifically designed to absorb and distribute the enormous forces exerted on the conveyor belt when bulk materials handling are loaded. This zone is the most vulnerable part of the conveyor system due to the intense and repeated impact it endures. The support system typically includes specialized impact beds, bars, and idlers, which work together to cushion the belt and evenly spread the load.

Protecting the Conveyor Belt from Damage

The primary function of Impact Load Zone Belt Support systems is to protect the conveyor belt from damage caused by heavy and sharp materials. When bulk materials are dropped onto the conveyor belt, the impact beds and bars provide a robust surface that absorbs the force of these falling materials. This absorption is crucial in preventing tears, punctures, and premature wear of the belt. By cushioning the impact, these support systems ensure the belt’s integrity and longevity, reducing the need for frequent maintenance and replacement. This protection is vital for maintaining the smooth operation of the conveyor system and avoiding costly downtime.

Enhancing Spillage Control

In addition to protecting the belt from physical damage, Impact Load Zone Belt Support systems play a significant role in spillage control. By stabilizing the belt and reducing its sagging, these systems ensure that materials are contained within the bounds of the belt. This containment is essential for minimizing spillage, which not only helps in maintaining a clean and safe work environment but also ensures that all materials are efficiently transported to their intended destination. Reducing spillage directly impacts the productivity of the conveyor system, as it minimizes material loss and enhances the overall efficiency of the operation.

Improving Operational Efficiency

The benefits of Impact Load Zone Belt Support systems extend beyond just protection and spillage control. These systems are integral to maintaining the proper alignment and tension of the conveyor belt. Proper alignment and tension are critical for the smooth and efficient operation of the conveyor system. Misalignment and improper tension can lead to operational inefficiencies, increased wear and tear, and potential system failures. By ensuring that the belt remains correctly aligned and tensioned, Impact Load Zone Belt Support systems help in reducing the risk of these issues, thereby improving the reliability and performance of the conveyor system.

An Investment in Reliability and Efficiency

Impact Load Zone Belt Support systems are an essential investment for any operation that relies on conveyor systems for material handling. They provide comprehensive protection for the conveyor belt, enhance spillage control, and improve the overall operational efficiency. By absorbing and evenly distributing the impact forces, these systems prevent damage to the belt, reduce maintenance costs, and extend the lifespan of the conveyor system. Additionally, by maintaining proper alignment and tension, they ensure that the conveyor operates smoothly and efficiently, leading to increased productivity and reduced operational costs. Investing in high-quality Impact Load Zone Belt Support systems is crucial for achieving a reliable, efficient, and cost-effective conveyor operation.

What is the Significance of Impact Load Zone Belt Support

How to choose right Impact Load Zone Belt Support

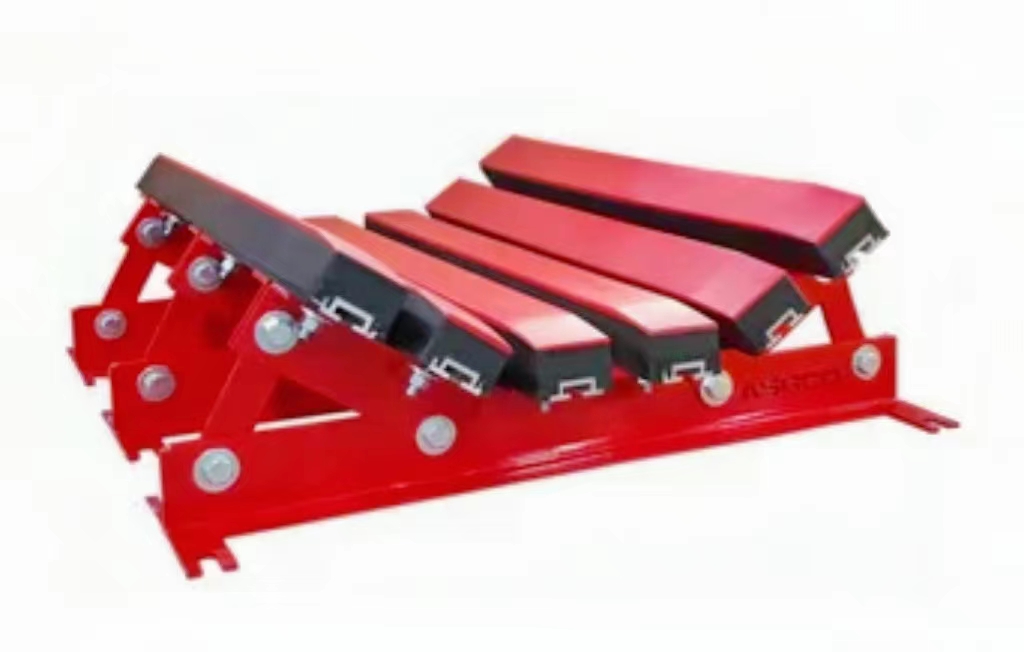

How to choose right Impact Load Zone Belt Support?

Choosing the right Impact Load Zone Belt Support involves considering several key factors to ensure optimal performance and longevity of your conveyor system. Here are the critical aspects to keep in mind:

1. Conveyor Belt Size and Type
The first step in selecting the appropriate support system is to match it to the width and type of your conveyor belt. Different conveyor belts are designed for various applications, and their sizes and materials must be compatible with the support system. Ensuring the right match helps maintain the integrity and efficiency of the conveyor belt.

2. Material Characteristics
Consider the characteristics of the materials being conveyed. The type, size, weight, and sharpness of the materials play a significant role in determining the necessary robustness of the support system. For instance, heavier and sharper materials require more robust support to prevent damage to the belt and ensure smooth operation. Understanding these characteristics allows for the selection of a support system that can handle the specific demands of your material handling operations.

3. Impact Energy
Assess the level of impact energy at the load zone. The impact energy refers to the force exerted when materials are loaded onto the conveyor belt. Higher impact forces necessitate more durable and absorbent support systems. By evaluating the impact energy, you can choose a support system that effectively absorbs shocks and minimizes wear and tear on the belt, extending its service life.

4. Load Capacity
Ensure that the support system can handle the maximum load of your operations. Overloading the conveyor belt can lead to premature failure and increased maintenance costs. Selecting a support system with adequate load capacity ensures that it can support the maximum expected load, maintaining operational efficiency and reducing the risk of downtime.

5. Environmental Conditions
Consider environmental conditions such as temperature, humidity, and chemical exposure, which can affect the material and performance of the support system. For example, high temperatures can degrade certain materials, while chemical exposure can cause corrosion. Choosing a support system made from materials that can withstand these conditions ensures reliable performance and longevity.

6. Maintenance and Durability
Evaluate the ease of maintenance and the durability of the support system. Systems that offer easy replacement of wear components can significantly reduce maintenance time and costs. Look for support systems designed with durable materials that can withstand the rigors of your operating environment, ensuring long-term reliability and minimal downtime.

7. Customization and Flexibility
Choose a support system that can be customized to fit your specific conveyor setup and operational needs. Customization options, such as adjustable impact beds and modular designs, allow for precise alignment with your conveyor belt and material handling requirements. Flexibility in design ensures that the support system can adapt to changes in your operations, providing continued efficiency and protection.

8. Vendor Reputation and Support
Opt for products from reputable vendors who offer robust customer support and warranties. Vendors like Gram are known for their high-quality products and excellent customer service. Working with a reputable vendor ensures that you receive reliable support throughout the lifespan of the support system, from installation to maintenance and beyond.

By considering these factors, you can select an Impact Load Zone Belt Support system that enhances the performance, safety, and longevity of your conveyor belt, ensuring smooth and efficient operations in your facility.

Tailoring Solutions to Specific Needs

Gram’s impact beds and idlers are meticulously designed with a focus on customization to address the unique challenges and requirements of every conveyor system. Recognizing that each conveyor setup comes with its own set of complexities, Gram offers a diverse range of materials, sizes, and configurations. This extensive variety ensures that their impact beds and idlers can be tailored to seamlessly integrate with your specific conveyor system, providing optimal performance and durability.

Our impact beds are built to absorb and distribute the impact energy from heavy, sharp, or abrasive materials being loaded onto the conveyor belt. By doing so, they prevent damage and reduce wear on the belt and the supporting structure, ensuring smooth and continuous operation. Similarly, our impact idlers are designed to maintain the belt’s shape and alignment, reducing wear and preventing sagging, which is crucial for maintaining the efficiency and longevity of the conveyor system.

Customization is at the heart of Gram’s approach. Whether you need to adapt to different belt widths, accommodate unique material characteristics, or manage varying levels of impact energy, Gram has the solution. Our products are engineered to meet these diverse needs, ensuring that they provide the support and protection required for your specific operational environment.

For instance, if your conveyor system handles heavy loads with high impact, we can provide impact beds with reinforced materials to withstand such stress. If your system operates in a highly abrasive environment, our idlers can be customized with abrasion-resistant coatings. This level of customization ensures that your conveyor belt support system is not only effective but also durable, reducing maintenance costs and downtime.

If you’re looking for a conveyor belt support system that perfectly aligns with your specific needs, contact Gram today. Our team of experts is ready to provide a customized solution that enhances the performance and longevity of your conveyor system. We pride ourselves on delivering solutions that are precisely tailored to your unique operational needs, ensuring that your conveyor system runs efficiently and reliably.

Trust Gram to deliver a solution that is precisely tailored to your unique operational needs. Our commitment to customization and quality ensures that you receive a conveyor belt support system that not only meets but exceeds your expectations. Contact us today to learn more about how our impact beds and idlers can be customized to fit your specific requirements and to schedule a consultation with our experts. With Gram, you can be confident in the performance, durability, and efficiency of your conveyor system.

Tailoring Solutions to Specific Needs

Impact Load Zone Belt Support2

CONTACT US

Let us help you find a better solution!

    Input this code: captcha

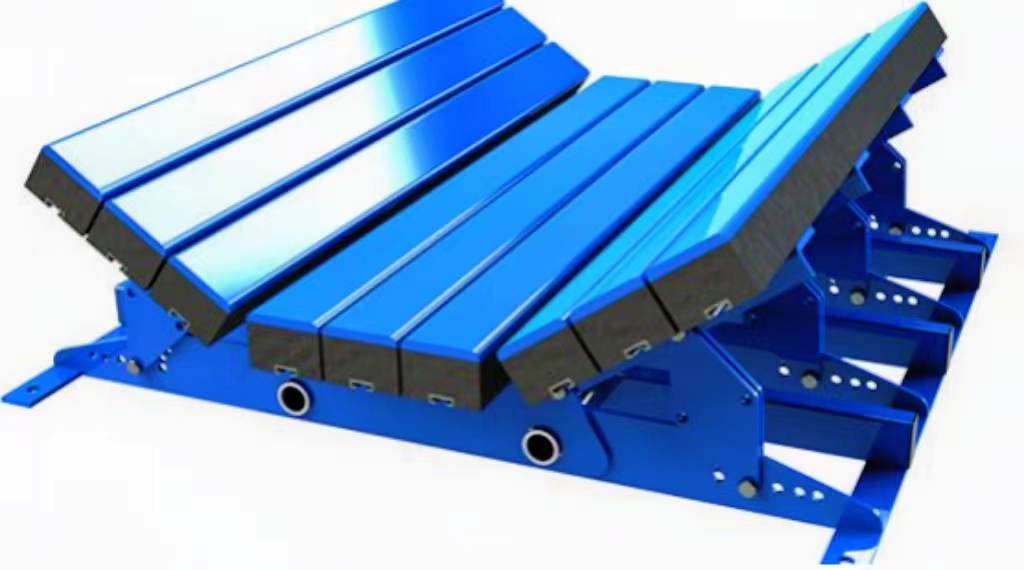

    Components of Impact Load Zone Belt Support Systems

    Impact beds play a crucial role in reducing spillage and absorbing the shock that occurs when bulk materials are loaded onto conveyor belts. These beds are specifically designed to support the conveyor belt in high-impact areas, typically where materials are dropped onto the belt from a height. By providing a cushioning effect, impact beds minimize the damage to the conveyor belt supporting structure. This cushioning not only prevents tears and rips in the belt but also helps in maintaining a smooth and efficient flow of materials. Products like ASGCO Impact Beds are engineered to withstand heavy impacts and are known for their durability and effectiveness in various industrial applications. They help in enhancing the life of the conveyor belt and reducing maintenance costs by preventing the frequent breakdowns caused by impact damage.

    Impact rollers are another essential component in maintaining the shape and alignment of the conveyor belt. These rollers are designed to absorb the energy from the impact of materials being loaded onto the belt, thereby reducing the wear and tear on the belt itself. By maintaining the belt’s shape, impact rollers ensure that the belt runs smoothly and efficiently, preventing issues such as belt sag and misalignment. This not only prolongs the life of the belt but also ensures consistent material transport, which is crucial for maintaining operational efficiency. The importance of impact rollers cannot be overstated, as they play a vital role in reducing the overall stress on the conveyor system, thereby preventing costly downtime and repairs.

    Conveyor belt trainers are used to prevent misalignment, which is a common issue in conveyor systems. Misalignment can cause significant wear and tear on the belt and can lead to material spillage, both of which can disrupt operations and increase maintenance costs. Belt trainers work by automatically adjusting the position of the belt to ensure it stays aligned with the conveyor structure. This is particularly important in long conveyor systems or in systems where the belt may be subjected to varying loads and conditions. Specific products such as conveyor belt trainers are designed to detect any deviation from the correct path and make real-time adjustments to correct it. This continuous adjustment helps in maintaining the belt’s alignment, ensuring smooth and efficient operation of the conveyor system. By preventing misalignment, belt trainers help in reducing wear and tear, preventing material spillage, and ultimately improving the overall efficiency of the conveyor system.

    Components of Impact Load Zone Belt Support Systems

    FAQs about Impact Load Zone Belt Support

    Impact load zone idlers in a belt conveyor installation provide critical protection against damage from the force of materials being loaded onto the conveyor. They absorb the shock and dissipate the energy of falling materials, which helps in preventing belt damage, reducing wear and tear, and extending the life of the conveyor belt. These idlers are especially important in heavy-duty or high-capacity conveyor systems where the material drop can be significant.

    Impact damage in a conveyor belt occurs when materials being loaded onto the belt exert excessive force, leading to deformations, tears, or punctures in the belt. This type of damage is common in systems where heavy or large materials are dropped from a height onto the conveyor. Impact damage can compromise the integrity of the belt and lead to costly repairs or replacements.

    The support of a belt conveyor refers to the structures and components that hold up the conveyor belt and ensure its stable and efficient operation. This includes the frame, idlers, rollers, and any additional supporting elements. Proper support is crucial for maintaining the alignment and tension of the belt, as well as for supporting the weight of the materials being conveyed.

    Impact idlers are used in belt conveyors to absorb the shock and distribute the force of materials falling onto the conveyor belt. They are typically located at the loading point of the conveyor, where materials are transferred onto the belt. Impact idlers are designed with a robust structure and cushioning materials to minimize the impact on the belt and prevent damage.

    The function of an impact idler is to provide a cushioned, shock-absorbing surface for materials as they are loaded onto a conveyor belt. This helps in reducing the impact force and protecting the belt from damage. Impact idlers are essential for maintaining the integrity and longevity of the conveyor belt, especially in applications involving heavy or abrasive materials.

    The spacing for impact idlers depends on the type of material being conveyed and the height from which it is dropped. Generally, closer spacing is required for heavier and larger materials to ensure adequate support and shock absorption. The typical spacing can range from about 300 mm (12 inches) to 600 mm (24 inches), but it should be determined based on specific operational requirements.

    To prevent conveyor belt damage, regular maintenance and inspections are crucial. Ensure proper alignment and tension of the belt, use impact idlers at loading points, and keep the belt and rollers clean to prevent material buildup. Also, avoid overloading the conveyor and ensure that the material is evenly distributed across the width of the belt. Using appropriate belt material for the specific application is also important.

    Impact idlers or impact beds are components of a conveyor system that reduce the impact of load movement across the belt. They are installed at the loading points and are designed to absorb the energy of falling materials, thereby protecting the belt from damage and reducing wear.

    Belt roller support in a conveyor system is used to support the conveyor belt and facilitate its smooth movement. These rollers help distribute the weight of the material being conveyed, reduce friction and wear on the belt, and maintain proper belt alignment. Effective roller support is crucial for the efficient and reliable operation of the conveyor system.

    Disadvantages of conveyor belts include the initial high cost of installation, limited flexibility in changing layouts, potential for mechanical failures leading to downtime, and the need for regular maintenance. They can also pose safety hazards if not properly operated and maintained.

    Yes, conveyor belts need to be guarded to ensure safety. Guards are necessary to prevent access to moving parts like rollers, pulleys, and belts, which can pose entanglement, pinch-point, and injury risks. Guarding helps prevent accidents and is a critical aspect of complying with safety regulations and standards.

    Calculating the belt load capacity involves several steps to ensure the conveyor belt can handle the required load without failure. Here are the key steps:

    1. Determine the Conveyor Belt Speed: Measure the speed at which the belt moves, typically in meters per second (m/s) or feet per minute (fpm).
    2. Calculate the Belt Width and Thickness: Identify the width and thickness of the belt, which directly impact its load-carrying capacity.
    3. Calculate the Material Density: Determine the density of the material being transported, usually expressed in kilograms per cubic meter (kg/m³) or pounds per cubic foot (lb/ft³).
    4. Determine the Load Cross-Section: Measure the cross-sectional area of the load on the belt, taking into account the belt’s angle of inclination.
    5. Calculate the Load Weight: Use the formula: Load Weight (kg)=Material Density (kg/m³)×Load Cross-Section (m²)×Belt Speed (m/s)\text{Load Weight (kg)} = \text{Material Density (kg/m³)} \times \text{Load Cross-Section (m²)} \times \text{Belt Speed (m/s)}
    6. Consider Safety Factors: Apply a safety factor to account for variations in load and operating conditions. This typically ranges from 1.2 to 1.5.

    By accurately calculating these parameters, you can determine the belt load capacity, ensuring the conveyor system operates efficiently without overloading.

    Preventing conveyor belt misalignment is crucial for maintaining efficient operations and reducing wear and tear on the system. Here are several strategies to prevent misalignment:

    1. Regular Inspections: Conduct regular inspections to check for any signs of misalignment or wear. Early detection can prevent more severe issues.
    2. Proper Installation: Ensure the conveyor belt is installed correctly with proper alignment and tension. Misalignment often starts with improper installation.
    3. Use of Tracking Devices: Install belt tracking devices such as sensors and pneumatic tracking systems. These devices monitor and adjust the belt’s alignment in real-time.
    4. Alignment of Pulleys and Rollers: Ensure all pulleys and rollers are properly aligned and in good condition. Misaligned pulleys and rollers are a common cause of belt misalignment.
    5. Clean the Belt and Components: Keep the belt and all conveyor components clean from debris and buildup. Contaminants can cause the belt to drift off track.
    6. Proper Tensioning: Maintain the correct tension on the conveyor belt. Over-tensioning or under-tensioning can lead to misalignment.
    7. Load Centering: Ensure the load is centered on the belt to avoid uneven distribution of weight, which can cause the belt to track off-line.

    Implementing these strategies can significantly reduce the risk of conveyor belt misalignment, ensuring smoother and more reliable operation.

    The belt tension rating, also known as the belt’s tensile strength, is a measure of the maximum amount of force that the belt can withstand before breaking. It is a critical parameter in selecting the appropriate conveyor belt for specific applications. Here are key aspects to understand about belt tension rating:

    1. Unit of Measurement: The tension rating is typically expressed in Newtons per millimeter (N/mm) or pounds per inch (PIW).
    2. Determining Factors: The tension rating depends on several factors, including the belt material, construction, and thickness.
    3. Role in Belt Selection: A higher tension rating indicates a stronger belt capable of handling heavier loads and higher stresses. It is essential to choose a belt with a tension rating that exceeds the maximum expected load to ensure safety and longevity.
    4. Calculation: The belt tension can be calculated using the formula: Tension (N)=Mass (kg)×Acceleration due to gravity (9.81 m/s²)\text{Tension (N)} = \text{Mass (kg)} \times \text{Acceleration due to gravity (9.81 m/s²)} Tension (PIW)=Weight (lb)×Distance (in)\text{Tension (PIW)} = \text{Weight (lb)} \times \text{Distance (in)}
    5. Safety Margins: Always include a safety margin in the tension rating to accommodate dynamic loads and unexpected stresses.

    Understanding and correctly applying the belt tension rating is crucial for the safe and efficient operation of conveyor systems.
