Types of Pulleys in Pulley Conveyor Systems: A Guide

conveyor assembly parts

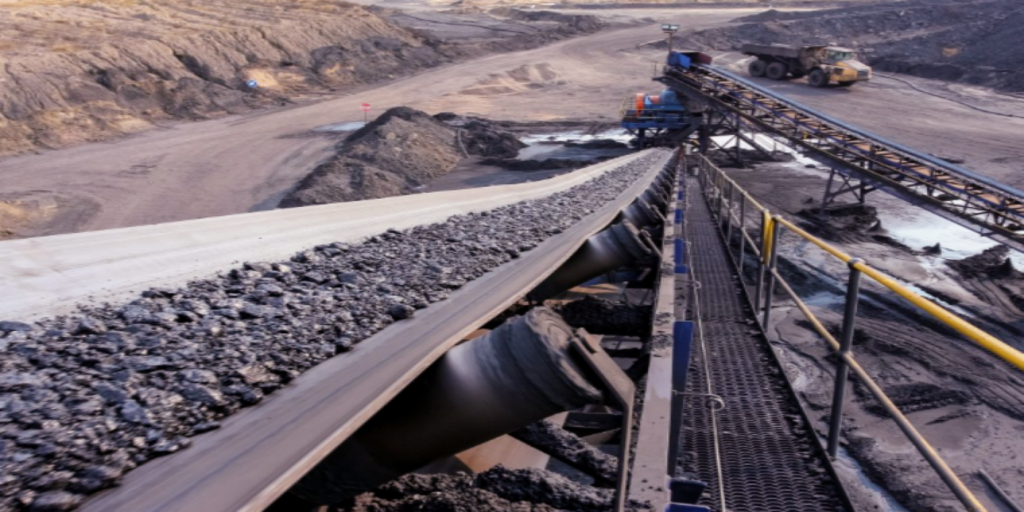

Conveyor systems are essential in various industries, including manufacturing, mining, and logistics, for efficient material handling. These systems streamline operations, reduce labor costs, and enhance productivity by automating the movement of goods. Within these systems, the pulley conveyor plays a pivotal role. Pulley conveyors are integral components that drive and guide the conveyor belt, ensuring smooth and continuous movement of materials. They consist of various types of pulleys, such as drive pulleys and idler pulleys, each serving a specific function. Understanding the significance and functionality of pulley conveyors is crucial for optimizing conveyor system performance and achieving operational efficiency in diverse industrial applications.

What are Pulley Conveyor Parts

Definition and Function

Pulley conveyors are a vital component of conveyor systems, playing an essential role in the movement and direction of materials. In a conveyor system, pulley conveyors function as the driving force, controlling the conveyor belt’s motion and ensuring the smooth and efficient transport of goods. The primary function of pulley conveyors is to provide the necessary tension and support to the conveyor belt, enabling it to move materials over various distances and through different processes within an industrial setting.

Key Components of Pulley Conveyors

Pulley conveyors consist of several key components, each serving a specific purpose within the conveyor system. Understanding these components and their roles is crucial for optimizing the performance and efficiency of the conveyor system. The main types of pulleys used in pulley conveyors include drive pulleys, tail pulleys, and idler pulleys.

Pulley TypeLocationFunctionSurface Treatment
Drive PulleyDischarge endDrives the conveyor belt forwardRubber coating for grip
Tail PulleyReceiving endMaintains tension and alignment of the conveyor beltSurface covering for grip
Idler PulleyBetween drive and tail pulleysSupports the conveyor belt along its return pathVarious types (flat, troughing, impact)

How Pulley Conveyors Function Within a Conveyor System

Pulley conveyors function by utilizing the mechanical advantage of rotating pulleys to move the conveyor belt and the materials it carries. The drive pulley, connected to a motor, provides the initial force required to move the belt. As the drive pulley rotates, it pulls the belt along with it, creating a continuous loop of movement. The tail pulley ensures the belt remains taut and properly aligned, while the idler pulleys provide additional support and prevent sagging.

The interaction between these components is critical for the efficient operation of the conveyor system. Proper tension and alignment are essential to prevent belt slippage, reduce wear and tear on the components, and ensure smooth and consistent material flow. Regular maintenance and inspection of the pulleys are necessary to identify and address any issues that may arise, such as misalignment, wear, or damage.

Importance of Understanding Pulley Conveyor Parts

A thorough understanding of pulley conveyor parts is essential for optimizing the performance and efficiency of conveyor systems. By knowing the roles and functions of each pulley type, operators can ensure that the conveyor system operates smoothly and efficiently. This knowledge also helps in identifying and troubleshooting potential issues, allowing for timely maintenance and repairs to prevent costly downtime and disruptions.

Pulley conveyors are a critical component of conveyor systems, providing the necessary force and support to move materials efficiently. Understanding the various pulley types and their functions is key to maintaining a well-functioning conveyor system and achieving optimal operational efficiency.

Types of Pulleys Used in Pulley Conveyors

Drive Pulley Conveyor Belt (Head Pulley)

The drive pulley, also known as the head pulley, is a crucial component in the pulley conveyor system. It is located at the discharge end of the conveyor and is responsible for driving the conveyor belt forward. The drive pulley is connected to a motor that provides the necessary torque to rotate the pulley, thus moving the belt. This pulley plays a pivotal role in the overall functioning of the conveyor system as it generates the force needed to transport materials along the conveyor belt.

The material and surface treatment of the drive pulley are essential to its performance. The surface of the drive pulley is often coated with a material such as rubber, known as lagging, to enhance grip and reduce wear. Lagging increases the friction between the pulley and the conveyor belt, preventing slippage and ensuring efficient operation. Additionally, lagging helps to extend the lifespan of both the pulley and the belt by reducing abrasion and wear.

Conveyor Head and Tail Pulley

The head pulley and tail pulley serve distinct functions within a pulley conveyor system. The head pulley, as previously mentioned, drives the conveyor belt forward. The tail pulley, on the other hand, is located at the receiving end of the conveyor system. Its primary function is to provide a return path for the conveyor belt and to help maintain the proper tension and alignment.

Differences and Functions:

  • Head Pulley: Located at the discharge end, drives the conveyor belt, connected to a motor.
  • Tail Pulley: Located at the receiving end, returns the conveyor belt, maintains tension and alignment.

Importance in Tension Regulation and Direction Change:

Both head and tail pulleys are essential for tension regulation and direction change in the conveyor belt system. Proper tension is critical to prevent belt slippage, reduce wear and tear, and ensure smooth operation. The tail pulley is often adjustable, allowing operators to make precise tension adjustments to maintain optimal belt performance.

Examples:

  1. Steel Head Pulley with Rubber Lagging: Used in heavy-duty applications for enhanced grip.
  2. Aluminum Tail Pulley: Lightweight and corrosion-resistant, ideal for food processing.
  3. Wing Tail Pulley: Designed for self-cleaning, reducing material build-up.
  4. Ceramic Lagged Head Pulley: Provides superior grip and wear resistance.
  5. Stainless Steel Tail Pulley: Suitable for environments requiring high hygiene standards.

Conveyor Drum Pulley

Drum pulleys are another vital type of pulley used in pulley conveyor systems. These pulleys are typically cylindrical and can be used as drive, tail, or idler pulleys depending on the application. Drum pulleys are designed to provide stable and efficient belt support, and they come in various sizes and configurations to suit different needs.

Common Features and Applications:

Drum pulleys are characterized by their cylindrical shape and robust construction. They are commonly used in applications that require heavy-duty performance and can withstand high loads and harsh operating conditions. Drum pulleys are also available in different variations, such as wing pulleys, which are designed for self-cleaning and reducing material build-up.

Importance in Heavy-Duty Applications:

Drum pulleys are essential in heavy-duty applications where durability and reliability are crucial. The robust construction of drum pulleys allows them to handle high loads and provide consistent performance over long periods. Variations like wing pulleys are particularly beneficial in environments where material build-up can be an issue, as they help to keep the conveyor belt clean and reduce maintenance requirements.

Examples:

  1. Heavy-Duty Steel Drum Pulley: Used in mining and aggregate applications for high load capacity.
  2. Rubber Coated Drum Pulley: Enhances grip and reduces wear, suitable for industrial applications.
  3. Wing Drum Pulley: Self-cleaning design for environments with material build-up.
  4. Stainless Steel Drum Pulley: Corrosion-resistant, ideal for food and pharmaceutical industries.
  5. Custom Engineered Drum Pulley: Designed for specific applications, offering tailored performance.
Pulley TypeLocationFunctionSurface TreatmentExamples
Drive Pulley (Head)Discharge endDrives the conveyor belt forwardRubber lagging for gripSteel Head Pulley with Rubber Lagging
Tail PulleyReceiving endReturns the conveyor belt, maintains tension and alignmentAdjustable for tension controlAluminum Tail Pulley, Wing Tail Pulley
Drum PulleyVarious positionsProvides stable belt support, handles heavy-duty applicationsVarious, including self-cleaning wingsHeavy-Duty Steel Drum Pulley, Wing Drum Pulley

Understanding the different types of pulleys used in pulley conveyors is essential for selecting the right components for specific applications. Drive pulleys, tail pulleys, and drum pulleys each have unique roles and features that contribute to the efficient operation of conveyor systems. By choosing the appropriate pulley types and configurations, operators can ensure optimal performance, reduce maintenance requirements, and extend the lifespan of their conveyor systems.

Discussing Pulley Conveyor Sizes and Specifications

Standard Sizes and Customizations

When it comes to pulley conveyors, the size of the pulleys plays a crucial role in the system’s overall functionality and efficiency. Standard pulley sizes are typically defined by their diameter and width, with common ranges varying depending on the application and industry requirements.

Typical Pulley Size Ranges:

  • Diameter: Pulley diameters can range from as small as 50 millimeters (2 inches) to over 1 meter (40 inches). Smaller pulleys are generally used in light-duty applications, while larger pulleys are necessary for heavy-duty industrial processes.
  • Width: The width of a pulley is determined by the width of the conveyor belt it supports. Standard widths can range from 300 millimeters (12 inches) to over 2 meters (80 inches), accommodating various belt sizes.

Impact on Conveyor Functionality:

The size of the pulley directly impacts the conveyor system’s performance. Larger pulleys can handle heavier loads and higher speeds, making them ideal for demanding applications. They also provide better belt traction and reduce the risk of slippage. Conversely, smaller pulleys are more suitable for lighter loads and slower speeds, offering greater flexibility in compact spaces.

Selecting the Right Pulley Size:

Choosing the correct pulley size involves considering several factors:

  1. Load Capacity: The weight and volume of the materials being transported dictate the size of the pulley. Heavier loads require larger pulleys to ensure adequate support and minimize wear.
  2. Speed: Conveyor speed is another critical factor. High-speed applications benefit from larger pulleys, which can maintain stability and reduce the risk of belt damage.
  3. Conveyor Length: The length of the conveyor system affects tension and alignment. Longer conveyors may require larger pulleys to maintain proper tension and prevent belt sagging.

Material and Design Innovations

The materials and design of pulley conveyors have evolved significantly, leading to enhanced efficiency, durability, and performance. Various materials are used in the construction of pulleys, each offering distinct advantages.

Materials Used:

  • Steel: Steel is a common material for pulleys due to its strength and durability. It can withstand high loads and harsh operating conditions, making it ideal for heavy-duty applications. Steel pulleys are often coated with protective layers to resist corrosion and wear.
  • Rubber Coatings: Rubber lagging on steel pulleys improves grip and reduces belt slippage. The rubber surface provides better traction, minimizes wear on the belt, and extends the pulley’s lifespan.
  • Ceramics: Ceramic lagging is used in applications where extreme wear resistance is required. Ceramic-coated pulleys offer superior durability and are suitable for abrasive environments.
  • Aluminum: Lightweight and corrosion-resistant, aluminum pulleys are used in industries where hygiene and cleanliness are paramount, such as food processing and pharmaceuticals.

Design Innovations:

Modern pulley designs incorporate several innovations to enhance conveyor efficiency and durability:

  • Wing Pulleys: Wing pulleys feature a unique design with vanes or fins that allow debris to fall through the pulley rather than accumulating on the belt. This self-cleaning feature reduces maintenance and improves belt life.
  • Crowned Pulleys: These pulleys have a slightly tapered design, with the center diameter larger than the edges. The crown helps to center the belt on the pulley, improving tracking and reducing the risk of misalignment.
  • Spiral Drum Pulleys: Spiral drum pulleys have a helical groove pattern that helps to shed water, mud, and other contaminants, preventing build-up and maintaining belt traction.
  • Custom Engineered Pulleys: Customization allows pulleys to be tailored to specific applications, considering factors like load, speed, and environmental conditions. Custom pulleys can be designed with specific materials, coatings, and dimensions to optimize performance.

Benefits of Material and Design Innovations

The advancements in materials and design have led to several benefits for pulley conveyor systems:

  • Increased Efficiency: Improved materials and innovative designs reduce friction, enhance grip, and ensure smoother operation, resulting in higher conveyor efficiency.
  • Extended Lifespan: Durable materials like steel and ceramics, combined with protective coatings, extend the lifespan of pulleys, reducing the need for frequent replacements.
  • Reduced Maintenance: Features like self-cleaning wing pulleys and crowned designs minimize maintenance requirements, saving time and costs associated with conveyor upkeep.
  • Enhanced Performance: Custom-engineered pulleys tailored to specific applications ensure optimal performance, whether in high-speed, heavy-load, or corrosive environments.

The sizes and specifications of pulleys in pulley conveyor systems are vital to their overall performance and efficiency. Standard sizes and customizations allow for tailored solutions that meet specific application requirements. Material choices and design innovations further enhance the durability, efficiency, and lifespan of pulley conveyors, making them indispensable components in various industrial processes. By selecting the right pulley sizes and leveraging advanced materials and designs, operators can achieve optimal conveyor performance and reliability.

Major Pulley Conveyor Manufacturers

Leading Brands in the Market

The pulley conveyor industry is dominated by several well-known manufacturers who have established themselves as leaders through their commitment to quality, innovation, and customer service. Among these, PROK and Heinrich Brothers stand out as prominent names.

PROK:

PROK is a global leader in the manufacture of conveyor pulley components, with a reputation for producing high-quality products that meet the demanding needs of various industries. The company has a rich history of innovation and excellence, dating back to its founding. PROK’s products are known for their durability, reliability, and superior performance, making them a preferred choice for many industrial applications.

What sets PROK apart is its focus on continuous improvement and technological advancement. The company invests heavily in research and development to stay at the forefront of the industry, introducing new materials, designs, and manufacturing techniques that enhance the efficiency and longevity of their pulley conveyors. PROK also places a strong emphasis on customer satisfaction, offering comprehensive support and services to ensure their products meet the specific needs of each client.

Heinrich Brothers:

Heinrich Brothers is another leading name in the pulley conveyor industry, known for its high-quality products and exceptional customer service. With decades of experience, Heinrich Brothers has built a solid reputation for delivering reliable and efficient conveyor solutions. The company offers a wide range of conveyor pulleys designed to cater to various industrial requirements.

Heinrich Brothers distinguishes itself through its commitment to customization and customer-centric approach. The company works closely with clients to understand their unique needs and develop tailored solutions that optimize their conveyor systems’ performance. This personalized service, combined with the company’s expertise and innovative products, has made Heinrich Brothers a trusted partner for many businesses.

Custom Solutions and Services

Major pulley conveyor manufacturers like PROK and Heinrich Brothers offer a range of custom solutions and services to meet the diverse needs of their clients. These services include custom engineering, design consultations, and ongoing support to ensure the optimal performance of pulley conveyor systems.

Custom Engineering:

Custom engineering is a critical service offered by leading manufacturers, allowing them to design pulley conveyors that meet specific application requirements. This process involves a detailed analysis of the client’s operational needs, including load capacities, environmental conditions, and other factors that impact the conveyor system’s performance. By leveraging their technical expertise and advanced manufacturing capabilities, companies like PROK and Heinrich Brothers can create custom pulley conveyors that deliver superior efficiency and reliability.

Design Consultations:

Design consultations are another valuable service provided by major pulley conveyor manufacturers. These consultations involve working closely with clients to assess their current conveyor systems and identify areas for improvement. Manufacturers can recommend the best pulley designs, materials, and configurations to enhance the system’s performance and extend its lifespan. This collaborative approach ensures that the final product is tailored to the client’s specific needs and operational goals.

Ongoing Support:

Ongoing support is essential for maintaining the performance and reliability of conveyor pulleys systems. Leading manufacturers offer comprehensive support services, including installation assistance, maintenance, and troubleshooting. This support helps clients address any issues that may arise and ensures that their conveyor systems continue to operate at peak efficiency. Companies like PROK and Heinrich Brothers provide extensive training and resources to help clients properly maintain and manage their pulley conveyors, reducing downtime and extending the equipment’s lifespan.

Case Study: Customized Pulley Solutions

A case study highlighting the benefits of custom solutions and services involves a mining operation that required a specialized conveyor pulleys system to handle high-capacity loads and abrasive materials. The client approached PROK for a solution that could withstand the harsh operating conditions and deliver reliable performance.

PROK’s engineering team conducted a thorough assessment of the mining operation’s requirements and designed a custom pulley conveyor system with reinforced steel pulleys and ceramic lagging to enhance durability and grip. The system also included custom-designed idler pulleys to support the heavy loads and maintain proper alignment.

The result was a highly efficient and durable pulley conveyor system that significantly improved the mining operation’s productivity and reduced maintenance costs. This case study demonstrates the value of working with leading manufacturers to develop customized solutions that meet specific industrial needs.

Major pulley conveyor manufacturers like PROK and Heinrich Brothers play a crucial role in the industry by providing high-quality products, innovative solutions, and exceptional customer service. Their ability to offer custom engineering, design consultations, and ongoing support ensures that clients receive tailored conveyor systems that enhance their operational efficiency and reliability. By partnering with these leading brands, businesses can achieve optimal performance and longevity for their pulley conveyor systems.

FAQs About Pulley Conveyor

What is a pulley on a conveyor?

A pulley on a conveyor is a mechanical component used to drive and support the conveyor belt. Pulleys play a critical role in the overall function of conveyor systems, ensuring the smooth and efficient movement of materials. They work by providing the necessary tension and support to the conveyor belt, allowing it to transport goods over various distances. Pulleys are typically made of robust materials like steel and can be coated with rubber or other materials to enhance grip and reduce wear. By rotating, these pulleys move the belt forward, thereby enabling the continuous flow of materials in industrial applications.

What are the names of conveyor pulleys?

Conveyor pulleys come in various types, each serving a specific function within the conveyor system. The main types of conveyor pulleys include:
Drive Pulley (Head Pulley): This pulley is located at the discharge end and drives the conveyor belt forward.
Tail Pulley: Positioned at the receiving end, this pulley returns the conveyor belt and helps maintain proper tension and alignment.
Idler Pulley: Also known as return pulleys, these support the conveyor belt along its return path and help prevent sagging or misalignment.
Snub Pulley: This pulley increases the angle of contact between the belt and the drive pulley, improving traction and belt control.
Bend Pulley: Used to change the direction of the belt, often found in longer conveyor systems to help manage belt tension. Understanding these different pulleys and their roles is essential for maintaining an efficient conveyor system.

What is the purpose of a head pulley?

The head pulley, also known as the drive pulley, is crucial in a conveyor system. Located at the discharge end of the conveyor, its primary purpose is to drive the conveyor belt forward. It achieves this by being connected to a motor that provides the necessary torque to rotate the pulley, thus moving the belt and the materials it carries. The head pulley is often coated with rubber or another high-friction material, known as lagging, to enhance grip and prevent slippage. This ensures efficient and reliable operation, making the head pulley an integral component for the overall performance and functionality of the conveyor system.

What is the difference between a head pulley and a tail pulley?

The head pulley and tail pulley serve distinct but complementary roles within a conveyor system. The head pulley, located at the discharge end, is responsible for driving the conveyor belt forward. It is connected to a motor that provides the necessary power to rotate the pulley, thereby moving the belt and the materials on it. The surface of the head pulley is often treated with rubber lagging to enhance grip and prevent belt slippage.
In contrast, the tail pulley is situated at the receiving end of the conveyor system. Its primary function is to provide a return path for the conveyor belt and help maintain proper tension and alignment. The tail pulley ensures that the belt remains taut and runs smoothly, preventing sagging and misalignment. Unlike the head pulley, the tail pulley is usually not driven by a motor but is often adjustable to allow for tension control. By working together, the head and tail pulleys ensure efficient and consistent operation of the conveyor system.
