How to Calculate Conveyor Belt Length: Guide and Tips

how to calculate conveyor belt length

In various industries, from manufacturing to logistics, the role of conveyor systems is pivotal for smooth operations. An essential aspect of maintaining these systems is understanding how to calculate conveyor belt length accurately. This calculation is not just a technical requirement but a necessity to prevent operational downtime and enhance system efficiency. Precise conveyor belt length calculations ensure that the belt fits perfectly, avoiding issues such as slippage or excessive tension that can lead to wear and tear or even system failure. By mastering this crucial step, businesses can ensure their conveyor systems operate at peak performance, contributing to overall productivity and reliability.

Mastering How to Calculate Conveyor Belt Length: Key Concepts and Terminology

Navigating through the complexities of conveyor systems, one quickly realizes the pivotal role that precise belt length calculations play. This precision is not merely a matter of mathematical exercise; it directly impacts the efficiency, safety, and longevity of the conveyor system itself. As we delve into the foundational aspects of how to calculate conveyor belt length, it’s crucial to familiarize ourselves with the key concepts and terminology that form the backbone of these calculations. Understanding these elements is the first step in mastering the art and science of conveyor belt length calculation, ensuring that the systems we design, operate, or maintain perform optimally under various industrial conditions.

Introduction to Basic Concepts and Terminology

In the intricate world of conveyor systems, the accuracy of belt length calculations is not just beneficial but essential. Grasping how to calculate conveyor belt length requires a deep understanding of several fundamental concepts and terms that are the bedrock of these calculations:

  1. Center-to-Center Distance: This refers to the linear distance between the centers of the drive and tail pulley conveyor. It’s a critical measurement as it directly influences the length of the conveyor belt needed to ensure smooth operation without excessive tension or slack.
  2. Belt Tension: This is the force exerted by the conveyor system to propel the belt and the load it carries. Proper tension is crucial as it affects the belt’s grip on the pulleys and its overall movement efficiency. Incorrect tension can lead to slippage, overstretching, or even snapping of the belt.
  3. Drive Pulley: The primary pulley that drives the belt, usually connected to a motor. The diameter and speed of the conveyor belt drive pulley play significant roles in determining the belt speed and, consequently, the conveyor’s throughput.
  4. Tail Pulley: Positioned at the conveyor’s end, this pulley works in conjunction with the drive pulley to loop the belt. Its alignment and condition are vital for the belt’s return path and overall tension balance.
  5. Belt Width: This dimension is crucial for determining the conveyor’s capacity. The width must be sufficient to handle the load size and volume without spillage, while also fitting within the conveyor structure.
  6. Pulley Diameter: The size of the pulleys around which the belt wraps affects the belt’s required length and its tension. Larger pulleys can reduce the belt’s bending stress, extending its life.
  7. Belt Speed: The velocity at which the belt moves, crucial for calculating the conveyor’s material handling capacity. It’s determined by the drive pulley’s rotational speed and diameter.
  8. Conveyor Length: The total end-to-end length of the conveyor system. This measurement is foundational, as it sets the baseline for calculating the required belt length to span the entire conveyor path.
Conveyor Length

Significance of Accurate Measurements

Delving into why precise measurements in calculating conveyor belt length are indispensable unveils a multitude of operational benefits:

  1. Minimized Downtime: Accuracy in belt length calculations ensures that the conveyor belt is neither too tight nor too loose, preventing operational halts due to belt slippage, over-tensioning, or unexpected maintenance.
  2. Cost Efficiency: Correctly sized belts eliminate the need for frequent adjustments or replacements, thereby reducing operational costs and increasing the return on investment in conveyor infrastructure.
  3. Load Handling: An accurately calculated belt ensures optimal tension and grip on the pulleys, enabling the conveyor to handle the intended load efficiently without the risk of slippage or belt sagging.
  4. Energy Efficiency: A belt that is correctly sized for its application requires less energy to move, as it operates within its optimal tension range, reducing the overall energy consumption of the conveyor system.
  5. Safety: Ensuring the correct belt length and tension minimizes the risk of belt failure, which can lead to accidents, product spillage, or damage to the conveyor components.
  6. Maintenance: Proper belt sizing and tensioning lead to uniform wear, reducing the frequency and cost of maintenance while extending the lifespan of both the belt and the conveyor components such as bearings and pulleys.
  7. System Longevity: Accurate belt length calculations contribute to the overall health of the conveyor system, extending its operational life and ensuring consistent performance over time.
  8. Operational Consistency: A well-calculated belt length maintains consistent belt movement and speed, which is particularly crucial for operations that require precise timing and synchronization of conveyor movements.
  9. Compliance: Adhering to industry standards and regulations regarding conveyor belt specifications not only ensures safety but also enhances the reliability and efficiency of the conveyor system.

Mastering how to calculate length of conveyor belt is a critical skill that impacts every aspect of a conveyor system’s operation, from efficiency and safety to cost management and maintenance.

The Fundamentals of Conveyor Belt Length Calculation: How to Calculate Conveyor Belt Length

Understanding the intricacies of how to calculate conveyor belt length is pivotal for the design, installation, and maintenance of an efficient conveyor system. This section delves into the belt length calculation formula and provides a detailed, step-by-step guide to accurately determine the necessary belt length for your conveyor system.

Belt Length Calculation Formula Explained

Belt Length Calculation Formula Explained

The belt length calculation is not merely about finding the right length of the belt but ensuring the conveyor operates efficiently and reliably. Here are nine critical points that underline the importance and complexity of this calculation:

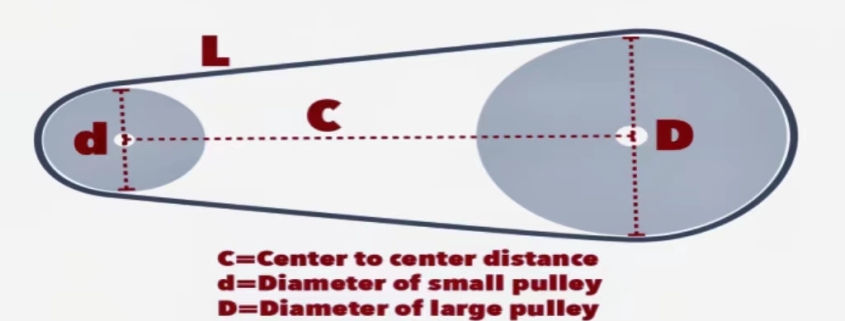

  1. Basic Formula: The fundamental formula for belt length (L) in a two-pulley system is (L = 2C + \frac{\pi}{2}(D+d) + \frac{(D-d)^2}{4C}), where (L) is the belt length, (C) is the center-to-center distance between the pulleys, (D) is the diameter of the large pulley, (d) is the diameter of the small pulley, and (\pi) is the mathematical constant approximately equal to 3.1416.
  2. Center-to-Center Distance (C): This is the distance between the centers of the two pulleys. An accurate measurement of (C) is crucial as it significantly influences the belt length.
  3. Pulley Diameters (D and d): The diameters of the large and small pulleys affect how the belt wraps around each pulley, thereby impacting the total belt length required.
  4. Belt Wrap Angle: The angle over which the belt wraps around the pulleys can alter the effective diameter of the pulleys and, consequently, the belt length. This factor is especially important in systems where the belt does not encompass the pulleys entirely.
  5. Belt Stretch: Over time, belts can stretch. The initial calculation should account for this potential stretch to avoid excessive slack or tension in the future.
  6. System Tension Requirements: The tension required to efficiently drive the conveyor without slippage must be considered, as it can affect the chosen belt length.
  7. Adjustment for Belt Thickness: The thickness of the belt can influence the calculation, especially in the wrap around the pulleys, and should be accounted for in the conveyor belt thickness calculation formula.
  8. Temperature and Environmental Factors: Changes in temperature and environmental conditions can affect the conveyor belt’s material properties and, subsequently, its length. These factors should be considered, especially for outdoor conveyor systems.
  9. Safety Margins: Incorporating a safety margin into the calculation can prevent operational issues due to unforeseen variables or measurement inaccuracies.

Step-by-Step Guide on How to Calculate Conveyor Belt Length

To accurately calculate the conveyor belt length, follow these detailed steps, incorporating the center-to-center distance formula:

  1. Measure Center-to-Center Distance (C): Accurately measure the distance between the centers of the two pulleys. This measurement is foundational for the calculation.
  2. Determine Pulley Diameters (D and d): Measure the diameters of the large and small pulleys. Ensure these measurements are precise, as they significantly impact the calculation.
  3. Calculate the Belt Wrap Angle: If the belt does not wrap around the pulleys completely, calculate the belt wrap angle for each pulley to adjust the effective pulley diameter in the calculation.
  4. Account for Belt Stretch: Estimate the potential stretch of the belt material over time and incorporate this into your length calculation to ensure long-term operational efficiency.
  5. Consider System Tension Requirements: Determine the tension required to move the conveyor belt and load efficiently. This tension can affect the length of the belt needed.
  6. Adjust for Belt Thickness: If the belt is particularly thick, adjust the calculation to account for the increased diameter it adds to the pulleys.
  7. Factor in Environmental Conditions: Consider any environmental factors that might affect the belt material and, consequently, its length. Adjust the calculation accordingly.
  8. Apply the Belt Length Formula: Using the measurements and considerations above, apply the belt length formula to calculate the required belt length.

By meticulously following these steps and understanding the underlying principles of the belt length calculation formula, you can ensure that your conveyor system is designed with the optimal belt length, leading to efficient and reliable operation.

Conveyor Belts
Try Gram Conveyor Belt Now!

🔒 Innovative conveyor belts designed for your business.

Advanced Conveyor Belt Calculations: Navigating Complex Systems

Delving deeper into the realm of conveyor belt systems, especially those with more than two pulleys, requires a more sophisticated approach to understanding how to calculate conveyor belt length. This section explores the intricate calculations necessary for complex systems and the application of the v-belt center distance formula in ensuring precise conveyor belt length measurements.

Complex Calculations for Multi-Pulley Systems

Complex Calculations for Multi-Pulley Systems

When dealing with conveyor systems that incorporate more than two pulleys, the calculation for determining the correct belt length becomes more complex. Here are seven critical points to consider:

  1. System Configuration: Understand the layout and configuration of the pulleys within the system. The arrangement and number of pulleys significantly impact the belt length calculation.
  2. Path of the Belt: Trace the path of the belt through all the pulleys in the system. This path determines the contact points and wrap angles around each pulley, which are crucial for accurate length calculation.
  3. Sequential Calculation: Break down the system into segments between each pair of pulleys and calculate the belt length for each segment. Summing up these lengths gives the total belt length required for the system.
  4. Tensioner Pulleys: Account for any tensioner pulleys that may adjust the belt’s path or tension. The position and function of these pulleys can affect the overall belt length.
  5. Belt Crossover: In systems where the belt crosses over itself, ensure that the crossover point is clearly identified and accounted for in the length calculation to avoid underestimation.
  6. Belt Length Calculator for 3 Pulleys: Utilize specialized calculators or software designed for systems with three or more pulleys. These tools can simplify the calculation process by considering the complexities of multi-pulley systems.
  7. Iterative Verification: Due to the complexity of multi-pulley systems, it’s advisable to iteratively verify the calculated belt length. Adjustments may be necessary to account for system dynamics and belt behavior under load.

V-Belt Center Distance Formula in Conveyor Belt Length Calculations

The v-belt center distance formula is a valuable tool in calculating the length of a conveyor belt, especially in systems where v-belts are used. Here are eight applications of this formula:

  1. Optimal Tensioning: The formula helps in determining the ideal center distance between pulleys to ensure optimal tensioning of the v-belt, which is crucial for efficient power transmission.
  2. Adjustment Range: It provides insights into the permissible adjustment range for the center distance, allowing for tensioning flexibility and accommodating belt stretch over time.
  3. Pulley Diameter Compatibility: The formula assists in verifying the compatibility of pulley diameters with the desired center distance, ensuring that the belt maintains proper contact with the pulleys.
  4. Belt Lifespan: By optimizing the center distance, the formula contributes to extending the belt’s lifespan by reducing excessive wear and tear due to improper tensioning.
  5. System Efficiency: Proper application of the formula enhances the overall efficiency of the conveyor system by minimizing slippage and energy loss.
  6. Custom Belt Lengths: The formula is instrumental in calculating custom belt lengths for unique system configurations, where standard belt sizes may not be applicable.
  7. Dynamic Adjustments: It allows for dynamic adjustments to the center distance in response to changes in load conditions, maintaining consistent belt performance.
  8. Preventive Maintenance: Regular application of the formula in maintenance routines helps in preemptively identifying issues related to belt tension and pulley alignment, preventing system downtime.

Mastering how to calculate conveyor belt length in complex systems and applying the v-belt center distance formula are essential skills for designing, maintaining, and troubleshooting advanced conveyor belt systems. These calculations ensure that the conveyor operates efficiently, reliably, and safely, even in the most intricate configurations.

Belt Length Calculator for 3 Pulleys

Understanding how to calculate conveyor belt length for systems with three pulleys can be more complex than for two-pulley systems. Below, we explore the challenges, provide a detailed formula, and walk through a practical example to help clarify the process.


Calculating the belt length in a three-pulley system presents unique challenges. Unlike two-pulley systems, where the calculation is relatively straightforward, three-pulley systems require accounting for additional variables and pulley interactions. The key challenges include:

  1. Multiple Contact Points: Each pulley adds complexity due to multiple contact points where the belt touches the pulleys.
  2. Variable Pulley Sizes: Different diameters of pulleys can affect the belt length calculation.
  3. Alignment and Positioning: The spatial arrangement of the pulleys (whether they are in a linear, triangular, or other configuration) influences the belt path and length.


The formula for calculating the belt length in a three-pulley system can be broken down into segments, considering the distance between each pair of pulleys and the arc of contact around each pulley. The general approach involves summing the straight-line distances between the pulleys and the arcs of contact around each pulley.

[ L = (D_1 \times \theta_1) + (D_2 \times \theta_2) + (D_3 \times \theta_3) + \sum_{i=1}^{3} d_{i,j} ]


  • ( L ) is the total belt length.
  • ( D_1, D_2, D_3 ) are the diameters of the three pulleys.
  • ( \theta_1, \theta_2, \theta_3 ) are the angles of contact around each pulley.
  • ( d_{i,j} ) represents the straight-line distance between the centers of pulleys ( i ) and ( j ).

Example Calculation

Let’s walk through a practical example to illustrate how to calculate conveyor belt length for a three-pulley system. Assume we have three pulleys with diameters ( D_1 = 10 ) inches, ( D_2 = 15 ) inches, and ( D_3 = 20 ) inches. The distances between the pulleys are ( d_{1,2} = 40 ) inches, ( d_{2,3} = 50 ) inches, and ( d_{1,3} = 60 ) inches. The angles of contact around each pulley are ( \theta_1 = 120^\circ ), ( \theta_2 = 90^\circ ), and ( \theta_3 = 60^\circ ).

First, convert the angles of contact from degrees to radians:

[ \theta_1 = 120^\circ \times \frac{\pi}{180^\circ} = \frac{2\pi}{3} ]
[ \theta_2 = 90^\circ \times \frac{\pi}{180^\circ} = \frac{\pi}{2} ]
[ \theta_3 = 60^\circ \times \frac{\pi}{180^\circ} = \frac{\pi}{3} ]

Next, calculate the arc lengths for each pulley:

[ \text{Arc length around } D_1 = D_1 \times \theta_1 = 10 \times \frac{2\pi}{3} = \frac{20\pi}{3} ]
[ \text{Arc length around } D_2 = D_2 \times \theta_2 = 15 \times \frac{\pi}{2} = \frac{15\pi}{2} ]
[ \text{Arc length around } D_3 = D_3 \times \theta_3 = 20 \times \frac{\pi}{3} = \frac{20\pi}{3} ]

Finally, add the straight-line distances between the pulleys and the arc lengths:

[ L = \left(\frac{20\pi}{3}\right) + \left(\frac{15\pi}{2}\right) + \left(\frac{20\pi}{3}\right) + 40 + 50 + 60 ]

[ L = \left(\frac{40\pi}{3}\right) + \left(\frac{15\pi}{2}\right) + 150 ]

[ L = 41.89 + 23.56 + 150 ]

[ L \approx 215.45 \text{ inches} ]

This example demonstrates how to calculate conveyor belt length for a three-pulley system, incorporating both the arc lengths around each pulley and the straight-line distances between pulleys. This method ensures an accurate measurement, critical for efficient conveyor system operation.

Practical Examples and Applications: Implementing How to Calculate Conveyor Belt Length

In this section, we delve into practical examples and applications, demonstrating how to calculate conveyor belt length in real-world scenarios. These examples will illustrate the application of formulas in belt conveyor design calculations and the use of a timing belt length calculator for achieving precise synchronization in conveyor systems.

Belt Conveyor Design Calculation Examples

Belt Conveyor Design Calculation Examples

To understand the practical application of conveyor belt length calculations, let’s explore seven examples:

  1. Straight Conveyor System: For a simple conveyor with two pulleys, the belt length can be calculated using the basic formula, taking into account the center-to-center distance and pulley diameters. This example serves as a foundation for more complex calculations.
  2. Inclined Conveyor: When dealing with an inclined conveyor, additional factors such as the height of the incline and the effect of gravity on the load must be considered in the belt length calculation to ensure proper tension and load support.
  3. Curved Conveyor System: In systems with curved sections, the belt length calculation must account for the additional length required to navigate the curves, ensuring that the belt maintains proper tension and contact with the pulleys throughout the system.
  4. Multiple Load Points: For conveyors with multiple loading and unloading points, the calculation must consider the varying tensions and slack requirements at different points along the belt path, ensuring efficient operation across the entire system.
  5. Variable Speed Conveyor: In scenarios where the conveyor operates at variable speeds, the belt length calculation must ensure that the belt can accommodate changes in tension without slipping or excessive stretching.
  6. Reversible Conveyor Systems: For conveyors designed to operate in both directions, the belt length calculation must ensure that the belt maintains proper tension and alignment regardless of the direction of movement.
  7. Conveyor with Accessories: When accessories such as guides, cleats, or sidewalls are added to the belt, the calculation must account for the additional material and space requirements, ensuring that the belt fits and functions correctly with the added components.

Using a Timing Belt Length Calculator for Precise Synchronization

Timing belts are crucial for applications requiring precise synchronization between the conveyor belt and other system components. Here are eight points on how to use a timing belt length calculator effectively:

  1. Input Pulley Specifications: Start by entering the specifications of the pulleys, including diameter and number of teeth, into the calculator to determine the pitch and size of the timing belt needed.
  2. Specify Center-to-Center Distance: Input the desired or existing center-to-center distance between the pulleys to ensure the calculator provides a belt length that maintains optimal tension.
  3. Adjust for Belt Pitch: The calculator will use the belt pitch (the distance between belt teeth) to ensure that the belt meshes correctly with the pulley teeth, maintaining precise synchronization.
  4. Consider Belt Width: Specify the required belt width to ensure the calculator accounts for the load-carrying capacity and stability of the belt in the system.
  5. Factor in Drive Requirements: Input the drive requirements, including speed and torque, to ensure the calculator selects a belt capable of transmitting the necessary power without slipping or stretching.
  6. Account for Environmental Factors: If the calculator allows, input environmental factors such as temperature and humidity that might affect the belt material and, consequently, the belt length.
  7. Review Tensioning Requirements: Use the calculator to understand the tensioning requirements for the selected belt length, ensuring that the system can accommodate the necessary adjustments for optimal operation.
  8. Iterative Calculation: Use the calculator iteratively, adjusting inputs as needed based on system changes or to refine the calculation, ensuring the final belt length meets all operational requirements.

By applying these practical examples and utilizing a timing belt length calculator, designers and engineers can ensure that their conveyor systems are equipped with belts of the correct length, leading to efficient, reliable, and synchronized operation across a wide range of industrial applications.

Tools and Resources for Conveyor Belt Calculations: Enhancing How to Calculate Conveyor Belt Length

In the quest to accurately calculate conveyor belt length, various tools and resources have been developed to aid engineers and technicians. This section provides an overview of these invaluable aids, including conveyor belt calculation PDFs and Excel tools, and discusses the advantages of using online conveyor belt calculators.

Conveyor Belt Calculation PDFs and Excel Tools

The digital era has brought forth a plethora of resources designed to streamline the process of conveyor belt length calculations. Here are seven key points highlighting these resources:

  1. Comprehensive Guides: Conveyor belt calculation PDFs serve as comprehensive guides, offering detailed explanations of calculation formulas and factors affecting belt length, providing a solid theoretical foundation.
  2. Step-by-Step Instructions: These PDFs often include step-by-step instructions for various scenarios, making it easier to understand how to calculate conveyor belt length for specific system configurations.
  3. Excel Calculation Templates: Excel tools for conveyor belt calculations come equipped with pre-programmed formulas, allowing users to input system parameters and receive instant calculations, enhancing efficiency and accuracy.
  4. Customizable Parameters: Excel tools offer the flexibility to adjust parameters such as pulley diameters, center-to-center distances, and load requirements, catering to unique system needs.
  5. Visual Aids: Many PDFs and Excel tools include diagrams and charts, aiding in the visualization of complex concepts and helping users better understand the calculation process.
  6. Error Checking: Excel tools often feature built-in error checking, alerting users to potential inconsistencies or unrealistic values in their input, thereby reducing calculation errors.
  7. Accessibility: Both PDF guides and Excel tools are widely accessible and can be easily shared among team members, facilitating collaboration in conveyor system design and troubleshooting.

Custom conveyor belts tailored to your specifications. Contact us!

    Input this code: captcha

    Online Conveyor Belt Calculators

    The advent of online calculators has revolutionized how conveyor belt length calculations are performed. Here are eight advantages of using these online tools:

    1. User-Friendly Interface: Online conveyor belt calculators typically feature a user-friendly interface, making it easy for individuals of all skill levels to input data and perform calculations.
    2. Real-Time Calculations: These calculators provide real-time results, allowing for quick adjustments and comparisons between different system configurations.
    3. Comprehensive Database: Many online calculators have a built-in database of belt types and materials, enabling users to select the most appropriate options for their specific applications.
    4. Integration with Design Software: Some online calculators can be integrated with conveyor design software, allowing for seamless transition from calculation to design.
    5. Mobile Accessibility: Online calculators are accessible on various devices, including smartphones and tablets, providing the flexibility to perform calculations on the go.
    6. Up-to-Date Information: Online tools are regularly updated to reflect the latest industry standards and practices, ensuring that users have access to the most current information.
    7. Cost-Effective: Many online conveyor belt calculators are available for free or at a minimal cost, making them an economical choice for businesses of all sizes.
    8. Global Accessibility: Being online, these calculators can be accessed from anywhere in the world, making them an invaluable resource for international teams and projects.

    By leveraging these tools and resources, professionals involved in conveyor system design and maintenance can enhance their ability to accurately calculate conveyor belt length, leading to more efficient and reliable conveyor operations.

    Troubleshooting Common Calculation Challenges in How to Calculate Conveyor Belt Length

    Navigating the complexities of conveyor belt length calculations can sometimes lead to errors and challenges. This section aims to identify common pitfalls in the calculation process and provide practical tips to ensure accuracy and reliability in your measurements and calculations.

    Common Pitfalls and Errors in Conveyor Belt Length Calculations

    Understanding where errors commonly arise in how to calculate conveyor belt length can help prevent miscalculations that could affect the efficiency and functionality of the conveyor system. Here are seven common pitfalls to be aware of:

    1. Incorrect Pulley Measurements: Using inaccurate pulley diameters can significantly skew belt length calculations. Ensure that pulley measurements are precise and account for the pulley’s groove depth where the belt sits.
    2. Overlooking Belt Stretch: Failing to consider the stretch characteristics of the belt material can result in a belt that’s too tight or too loose, affecting system performance.
    3. Misjudging Center-to-Center Distance: Inaccurate measurements of the distance between pulley centers can lead to incorrect belt length calculations, potentially causing excessive tension or slack.
    4. Neglecting System Load: Not accounting for the load the conveyor is designed to carry can lead to selecting a belt that’s not suited for the application, leading to premature wear or failure.
    5. Ignoring Environmental Factors: Environmental conditions such as temperature and humidity can affect belt materials. Calculations should consider these factors to ensure long-term durability and performance.
    6. Improper Tensioning: Incorrectly estimating the required belt tension can lead to operational issues, such as slippage or excessive wear on conveyor components.
    7. Using Outdated Data: Relying on outdated or generic data for belt properties and specifications can lead to inaccuracies in calculations. Always use the most current and specific data available for the belt material and type.

    Tips for Ensuring Accuracy in Measurements and Calculations

    Ensuring accuracy in how to calculate conveyor belt length is crucial for the optimal design and operation of conveyor systems. Here are nine tips to enhance the precision of your calculations:

    1. Use Precision Measuring Tools: Employ high-quality measuring instruments to obtain accurate pulley diameters and center-to-center distances.
    2. Consult Manufacturer Specifications: Refer to the belt manufacturer’s specifications for stretch characteristics and other critical parameters to ensure your calculations are based on reliable data.
    3. Account for Belt Tension: Utilize tension calculation formulas or tools to accurately determine the necessary belt tension for your specific application.
    4. Consider Belt Overlap: When calculating belt length for systems with belt overlap, ensure the overlap length is included in the total belt length calculation.
    5. Factor in Pulley Groove Depth: Measure the effective diameter of pulleys where the belt actually rides, considering the groove depth, to ensure accurate diameter measurements.
    6. Adjust for Environmental Conditions: Make allowances in your calculations for potential expansion or contraction of the belt material due to temperature changes or exposure to chemicals.
    7. Validate with a Belt Length Calculator: Use a reputable online belt length calculator as a secondary check to validate your manual calculations.
    8. Regularly Calibrate Measuring Tools: Ensure that all measuring instruments are regularly calibrated to maintain measurement accuracy.
    9. Document and Review Calculations: Keep detailed records of all measurements and calculations, and consider having them reviewed by a colleague or expert to catch any potential errors.

    By being mindful of these common pitfalls and adhering to these accuracy-enhancing tips, you can significantly improve the reliability of your conveyor belt length calculations, leading to more efficient and trouble-free conveyor system operations.

    FAQs about How to Calculate Conveyor Belt Length

    How do you measure the length of a conveyor belt?

    Measuring the length of a conveyor belt involves several steps to ensure accuracy, especially since the belt forms a loop around the conveyor system. The most straightforward method is to measure a belt that is not currently installed on the conveyor. Lay the belt flat on a large surface or floor, and measure from one end of the belt to the other. For belts installed on the conveyor, especially those that cannot be removed, a different approach is needed. Mark a starting point on the belt with a piece of chalk or a sticker. Roll the belt along the conveyor system until the mark returns to the starting position, keeping track of the distance covered, which corresponds to the belt’s length. This method requires the conveyor to be manually moved and may need several rotations to ensure accuracy. It’s crucial to ensure the belt is tensioned correctly during measurement to avoid slack that could lead to inaccurate readings.

    How do you measure the length of a belt?

    Measuring the length of a belt, such as a V-belt or timing belt, that is not installed is relatively simple. You can lay the belt out flat and measure from one end to the other using a flexible tape measure. For installed belts or belts that are looped and cannot be laid flat, you can use a piece of string to trace the belt’s path, then measure the length of the string. Another method involves marking a point on the belt and the corresponding point on the pulley, then rotating the pulley by hand until the belt completes one full cycle, returning to the starting point. Measure the distance traveled by the mark on the belt, which equals the belt’s length. It’s important to ensure the belt is properly tensioned during measurement to avoid inaccuracies due to stretching or sagging. You can also to calculate conveyor belt length, multiply the center-to-center distance of pulleys by two, add the diameters of the pulleys, and use the belt length formula.

    What is the formula for V belt length?

    The formula for calculating the length of a V-belt, especially when designing or modifying a belt drive system, involves several key dimensions of the pulleys and their distance apart. The formula is often expressed as: ( L = 2C + \frac{\pi}{2}(D+d) + \frac{(D-d)^2}{4C} ), where (L) is the belt length, (C) is the center-to-center distance between the pulleys, (D) is the diameter of the larger pulley, (d) is the diameter of the smaller pulley, and (\pi) is the mathematical constant Pi (approximately 3.1416). This formula accounts for the length of the belt wrapped around each pulley and the straight distance between the pulleys, providing a theoretical length that can be used to select an appropriate standard belt size.

    What is the formula for belt roll length?

    The formula for calculating the length of a belt on a roll involves understanding the roll’s geometry and the belt’s thickness. The formula can be expressed as: ( L = \frac{N(D+d)}{2} + \frac{N^2t}{D} ), where (L) is the length of the belt on the roll, (N) is the number of turns the belt makes around the roll, (D) is the diameter of the roll’s core, (d) is the diameter of the roll including the belt, and (t) is the thickness of the belt. This formula takes into account the increasing diameter of the roll as the belt is wound around it, providing an estimate of the total length of the belt on the roll. It’s particularly useful for inventory management and when preparing belts for installation on conveyor systems

    How to calculate the belt length?

    To calculate the belt length, measure the center-to-center distance between the two pulleys and multiply this distance by two. Then, add the diameters of the pulleys to this result. This accounts for the belt length on both the top and bottom of the pulleys. Use the formula:
    Belt Length=(2×Center Distance)+Pulley Diameter\text{Belt Length} = (2 \times \text{Center Distance}) + \text{Pulley Diameter}Belt Length=(2×Center Distance)+Pulley Diameter

    Jordan Smith

    Jordan Smith, a seasoned professional with over 20 years of experience in the conveyor system industry. Jordan’s expertise lies in providing comprehensive solutions for conveyor rollers, belts, and accessories, catering to a wide range of industrial needs. From initial design and configuration to installation and meticulous troubleshooting, Jordan is adept at handling all aspects of conveyor system management. Whether you’re looking to upgrade your production line with efficient conveyor belts, require custom conveyor rollers for specific operations, or need expert advice on selecting the right conveyor accessories for your facility, Jordan is your reliable consultant. For any inquiries or assistance with conveyor system optimization, Jordan is available to share his wealth of knowledge and experience. Feel free to reach out at any time for professional guidance on all matters related to conveyor rollers, belts, and accessories.
