The Ultimate Guide to Choosing Chevron Conveyor Belt Solutions

about conveyor belt

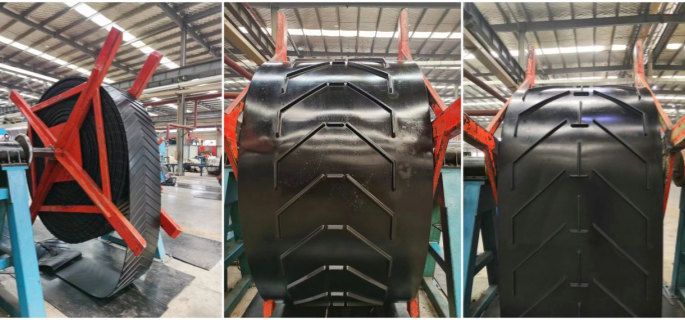

A chevron conveyor belt is designed for transporting loose, bulk materials over steep inclines. This type of belt features a unique pattern that helps prevent materials from sliding back. Chevron conveyor belts are commonly used in various industries, including agriculture for grain transport, mining for ore handling, construction for moving sand and gravel, recycling for transporting waste materials, and the food industry for bulk product movement.This design effectively prevents spillage and ensures that materials are moved efficiently without sliding back. The conveyor belt chevron’s patterns are crucial for maintaining a steady flow of materials, especially in challenging conditions.

Advantages and Specifications of Chevron Conveyor Belt

Chevron Belt Specifications

Chevron conveyor belts are specifically designed to transport loose, bulk materials over steep inclines efficiently. The following are the key technical aspects that define these belts:


Chevron conveyor belts are typically made from durable materials such as rubber, PVC, or polyurethane. These materials are selected for their resistance to abrasion, oil, and weather conditions, ensuring longevity and consistent performance.

  1. Rubber Chevron Conveyor Belt: Suitable for heavy-duty applications in mining and construction, offering excellent resistance to impact and wear.
  2. PVC Chevron Conveyor Belt: Ideal for light to medium-duty applications, providing good flexibility and resistance to oils and chemicals.
  3. Polyurethane Chevron Conveyor Belt: Used in food processing industries due to its high resistance to fats, oils, and chemicals while being easy to clean.
  4. Heat-Resistant Chevron Conveyor Belt: Designed for industries such as cement and steel, where the belt must withstand high temperatures.
  5. Flame-Retardant Chevron Conveyor Belt: Used in environments with a high risk of fire, such as underground mining and power plants.

Pattern Height

The chevron patterns on these belts come in various heights, typically ranging from 5mm to 32mm. The height of the pattern determines the belt’s ability to transport materials at steeper inclines and handle different types of loads.

Belt Width

Chevron conveyor belts come in various widths to accommodate different conveyor systems and material handling needs. Standard widths include:

Benefits over Smooth Conveyor Belts

Chevron conveyor belts offer several significant advantages over smooth conveyor belts, especially when it comes to efficiency and handling steep inclines.

Increased Efficiency

The unique chevron patterns on these belts enhance their grip on materials, reducing the risk of spillage and ensuring a consistent flow.

  1. Enhanced Material Control: The chevron patterns prevent materials from sliding back, maintaining a steady flow and reducing waste.
  2. Improved Loading Capacity: These belts can handle larger volumes of materials, increasing overall efficiency.
  3. Reduced Downtime: The superior grip and reduced spillage minimize interruptions, leading to higher productivity.
  4. Energy Efficiency: Chevron belts often require less power to operate, as the reduced material loss means less energy is needed to move materials.
  5. Versatility: Suitable for a wide range of materials and applications, making them a versatile choice for various industries.

Angle of Inclination Benefits

Chevron conveyor belts are particularly effective for transporting materials over steep inclines, where smooth belts would struggle.

  1. Steeper Angles: These belts can transport materials at angles up to 40 degrees, compared to the typical 15-20 degrees of smooth belts.
  2. Better Traction: The chevron patterns provide superior traction, preventing materials from slipping and sliding.
  3. Stability on Inclines: The design ensures materials remain stable and do not roll back, which is critical in high-angle transport.
  4. Reduced Material Loss: The patterns help contain materials within the belt, reducing spillage and ensuring more efficient transport.
  5. Safety: By preventing materials from sliding back, chevron belts reduce the risk of accidents and injuries, making them safer for operators.

Chevron conveyor belts are a superior choice for material handling, particularly on steep inclines. Their robust construction, versatile design, and efficient material handling capabilities make them indispensable in various industries, ensuring optimal performance and reliability.

Chevron Conveyor Belt Designs and Sizes

Design Considerations

When designing a chevron conveyor belt, several factors are taken into account to ensure optimal performance and operational efficiency. The chevron pattern, material selection, and overall belt construction play crucial roles in determining the belt’s effectiveness in various applications.

Chevron Pattern Design

The chevron pattern is integral to the belt’s functionality, providing the necessary grip to transport materials over steep inclines. The pattern is typically designed in a V-shape, which helps in directing materials towards the center of the belt, minimizing spillage and maximizing load stability.

  1. V-Shape Pattern: This design directs materials towards the belt’s center, reducing the risk of spillage and ensuring a more efficient transport process.
  2. Height and Spacing: The height and spacing of the chevron patterns are tailored to specific material types and transport conditions. For example, taller patterns are used for heavier materials and steeper inclines, while shorter patterns are suitable for lighter loads and gentler slopes.
  3. Symmetrical vs. Asymmetrical Patterns: Symmetrical patterns provide uniform support and are suitable for consistent load types, whereas asymmetrical patterns can be customized for specific applications where materials require varied support levels.
  4. Chevron Angle: The angle of the chevron pattern affects the belt’s grip on materials. Steeper angles provide better grip for steeper inclines, while shallower angles are used for moderate slopes.

Material Selection

The material used in conveyor belt chevron impacts their durability, flexibility, and suitability for different environments. Common materials include rubber, PVC, and polyurethane, each offering unique benefits.

  1. Rubber: Offers excellent durability and resistance to abrasion, making it ideal for heavy-duty applications.
  2. PVC: Provides good flexibility and resistance to chemicals, suitable for light to medium-duty applications.
  3. Polyurethane: Known for its resistance to oils and chemicals, often used in the food processing industry.
  4. Specialty Materials: Heat-resistant, flame-retardant, and oil-resistant materials are available for specific industrial needs, ensuring that the belts can perform under extreme conditions.

Belt Construction

The overall construction of the chevron conveyor belt, including the number of plies and the type of reinforcement used, determines its strength and lifespan.

  1. Single-Ply Belts: Suitable for light-duty applications, offering good flexibility and ease of installation.
  2. Multi-Ply Belts: Designed for heavy-duty applications, providing additional strength and durability.
  3. Reinforcement Materials: Steel cables, fabric, or synthetic fibers can be used to reinforce the belt, enhancing its resistance to stretching and tearing.

Size Variations

Chevron conveyor belts come in a wide range of sizes to meet the diverse needs of different industries. Choosing the right size is crucial for ensuring efficient material handling and optimal performance.


The width of the chevron conveyor belt is a critical factor, as it determines the amount of material that can be transported at once.

  1. 500mm Width: Commonly used in small-scale operations and light material handling applications.
  2. 650mm Width: Ideal for medium-duty applications such as recycling and agricultural transport.
  3. 800mm Width: Suitable for construction and mining, providing a balance between capacity and flexibility.
  4. 1000mm Width: Frequently used in heavy-duty industries like cement and steel for bulk material transport.
  5. 1200mm Width: Designed for large-scale industrial applications, offering high capacity for transporting large quantities of materials.


The length of the conveyor belt depends on the specific requirements of the application, including the distance to be covered and the layout of the conveyor system.

  1. Short Lengths: Suitable for compact operations and localized material handling.
  2. Medium Lengths: Used in moderate-sized facilities with a balanced need for flexibility and capacity.
  3. Long Lengths: Essential for large industrial plants and mining operations, where materials need to be transported over significant distances.

Pattern Heights

The height of the chevron pattern varies to accommodate different types of materials and inclines.

  1. 5mm Pattern Height: Suitable for transporting light materials over moderate inclines.
  2. 10mm Pattern Height: Ideal for handling materials like gravel and wood chips, offering good grip and stability.
  3. 16mm Pattern Height: Commonly used for medium-heavy materials such as coal and ores on steep inclines.
  4. 25mm Pattern Height: Designed for heavy materials like stones and construction debris.
  5. 32mm Pattern Height: Utilized in extreme incline situations, ensuring that even the heaviest materials do not slide back.

Choosing the Right Size

Selecting the appropriate size for a chevron conveyor belt involves considering the material type, transport distance, and incline angle. It’s important to match the belt width, length, and pattern height to the specific requirements of the application to ensure efficient and reliable performance.

  1. Assess Material Characteristics: Consider the weight, size, and flow properties of the materials being transported.
  2. Determine Transport Distance: Choose a belt length that covers the required distance with minimal joints and transitions.
  3. Evaluate Incline Angle: Select a pattern height that provides sufficient grip for the incline angle of the conveyor system.
  4. Consult with Suppliers: Work with experienced suppliers to ensure that the selected belt meets all operational requirements and industry standards.

The design and size variations of chevron conveyor belts are critical factors that influence their efficiency and suitability for different material handling applications. By understanding these elements, businesses can make informed decisions to optimize their conveyor systems and improve overall productivity.

Cost and Suppliers of Chevron Conveyor Belt

Chevron Conveyor Belt Price

The cost of a chevron conveyor belt can vary significantly based on several factors, each of which plays a crucial role in determining the overall price. Understanding these factors can help businesses make informed purchasing decisions and get the best value for their investment.

Material Quality

The material used in the construction of the chevron conveyor belt greatly influences its price. High-quality materials such as premium-grade rubber, specialized PVC, or durable polyurethane tend to be more expensive but offer better performance and longevity.

  1. Premium Rubber: Offers excellent resistance to wear and tear, making it ideal for heavy-duty applications, but comes at a higher cost.
  2. Specialized PVC: More affordable than rubber and suitable for light to medium-duty applications, but may not last as long in harsh environments.
  3. Polyurethane: Priced higher due to its resistance to oils and chemicals, commonly used in food processing industries.

Pattern Height and Design

The complexity and height of the chevron pattern also affect the price. Higher patterns and intricate designs require more material and precision in manufacturing, leading to increased costs.

  1. 5mm Pattern Height: Generally less expensive due to lower material usage, suitable for light-duty applications.
  2. 16mm Pattern Height: Moderately priced, offering a balance between cost and functionality for medium-duty tasks.
  3. 32mm Pattern Height: Higher cost due to the additional material and manufacturing precision needed, ideal for heavy-duty applications.

Belt Width and Length

The dimensions of the conveyor belt chevron directly impact its price. Wider and longer belts require more material, leading to higher costs.

  1. 500mm Width: Less expensive, suitable for small-scale operations.
  2. 1000mm Width: Moderately priced, commonly used in industrial applications.
  3. 1200mm Width: Higher cost due to increased material requirements, used in large-scale operations.

Additional Features

Additional features such as heat resistance, flame retardance, and oil resistance can also influence the price. These specialized features enhance the belt’s performance in specific conditions but come at an additional cost.

  1. Heat-Resistant Belts: Priced higher due to the specialized materials needed to withstand high temperatures.
  2. Flame-Retardant Belts: More expensive because of the advanced materials used to prevent fire hazards.
  3. Oil-Resistant Belts: Higher cost due to the need for materials that resist degradation from oils and chemicals.

Manufacturer and Brand

The manufacturer and brand of the chevron conveyor belts can also affect the price. Well-established brands with a reputation for quality may charge a premium, but they often provide better reliability and customer support.

  1. Reputable Brands: Higher initial cost but can offer better long-term value due to superior quality and support.
  2. Lesser-Known Brands: Lower cost but may not offer the same level of quality or customer service.

Finding the Right Suppliers

Selecting reliable suppliers and manufacturers is crucial for obtaining high-quality chevron conveyor belts at a reasonable price. Here are some guidelines to help in choosing the right supplier:

Research and Reviews

Conduct thorough research and read customer reviews to gauge the reliability and quality of potential suppliers. Look for feedback on product performance, customer service, and overall satisfaction.

  1. Online Reviews: Platforms like Google Reviews, Trustpilot, and industry-specific forums can provide valuable insights into a supplier’s reputation.
  2. Case Studies: Review case studies and success stories on the supplier’s website to understand their expertise and experience in delivering solutions similar to your needs.

Certifications and Standards

Ensure that the supplier adheres to industry standards and holds relevant certifications. This guarantees that the chevron conveyor belts meet quality and safety requirements.

  1. ISO Certification: Indicates that the supplier follows international quality management standards.
  2. CE Marking: Ensures that the products meet European safety, health, and environmental protection requirements.

Product Range and Customization

Choose a supplier that offers a wide range of chevron conveyor belts and provides customization options to meet specific application requirements.

  1. Wide Product Range: Indicates the supplier’s capability to cater to diverse needs and applications.
  2. Customization Services: Essential for getting a belt tailored to specific operational requirements, enhancing performance and efficiency.

After-Sales Support

Select a supplier that offers robust after-sales support, including installation guidance, maintenance services, and warranty options. This ensures that any issues can be promptly addressed, minimizing downtime.

  1. Installation Support: Assistance with the initial setup to ensure optimal performance.
  2. Maintenance Services: Regular maintenance and troubleshooting support to extend the belt’s lifespan.
  3. Warranty Options: Protects your investment by covering repairs or replacements within the warranty period.

Price Transparency

Ensure that the supplier provides transparent pricing with no hidden costs. Request detailed quotes that break down the costs of materials, design features, and any additional services.

  1. Detailed Quotes: Helps in comparing prices and understanding what you are paying for.
  2. No Hidden Costs: Ensures that the quoted price is the final price, avoiding unexpected expenses.

Understanding the factors that affect the cost of chevron conveyor belts and following the guidelines for selecting reliable suppliers can help businesses make informed decisions. By prioritizing quality, transparency, and support, companies can ensure they invest in conveyor belts that offer excellent performance and long-term value.

Practical Insights Chevron Conveyor Belt

Installation and Maintenance

Proper installation and maintenance are crucial for ensuring the longevity and optimal performance of a chevron conveyor belt. Following best practices can help prevent premature wear and failures, thus maximizing the belt’s efficiency and lifespan.

Installation Best Practices

  1. Site Preparation: Before installation, ensure the conveyor system is properly aligned and that all components are clean and free from debris. A well-prepared site minimizes the risk of misalignment and premature wear.
  2. Correct Tensioning: Proper tensioning is essential to avoid belt slippage and excessive wear. Follow the manufacturer’s guidelines to achieve the correct tension for your specific chevron conveyor belt.
  3. Alignment: Ensure the belt is properly aligned during installation. Misalignment can cause uneven wear and reduce the belt’s lifespan. Use laser alignment tools if necessary to achieve precise alignment.
  4. Seamless Splicing: Proper splicing techniques are critical for maintaining the integrity of the chevron conveyor belt. Use the recommended splicing method, whether it be mechanical fasteners or vulcanization, to ensure a strong and durable splice.
  5. Initial Run-In: After installation, run the belt under a no-load condition to check for proper tracking and tension. This initial run-in helps identify and correct any issues before the conveyor system is fully operational.

Maintenance Best Practices

  1. Regular Inspections: Conduct regular inspections to identify signs of wear, damage, or misalignment. Look for frayed edges, cracks, or uneven wear patterns on the chevron conveyor belt.
  2. Timely Repairs: Address any damage or wear promptly to prevent further deterioration. Small issues like minor cuts or abrasions can be repaired to extend the belt’s service life.
  3. Cleaning: Keep the belt clean to prevent material buildup that can cause increased wear and tear. Use appropriate cleaning methods, such as brushing or washing, to maintain the belt’s surface.
  4. Lubrication: Ensure that all moving parts of the conveyor system, such as rollers and pulleys, are adequately lubricated to reduce friction and wear on the chevron belt conveyor.
  5. Scheduled Maintenance: Establish a regular maintenance schedule based on the belt’s usage and operating conditions. Scheduled maintenance helps in early detection of potential problems and keeps the belt running smoothly.

Applications and Case Studies

Chevron conveyor belts are versatile and widely used across various industries for handling bulk materials, especially in applications involving steep inclines. Below are some real-world applications and case studies highlighting the impact and benefits of using chevron conveyor belts.


  1. Agriculture: In the agricultural sector, chevron conveyor belts are used for transporting grains, seeds, and other agricultural products. Their ability to handle steep inclines without spillage makes them ideal for loading and unloading grain silos.
  2. Mining: Chevron conveyor belts are extensively used in the mining industry for transporting ores, coal, and other mined materials. Their robust design and high traction patterns enable efficient movement of heavy loads over challenging terrains.
  3. Construction: In construction, these belts are employed to move sand, gravel, and crushed stone. The chevron pattern ensures that materials are transported efficiently on inclined conveyors, reducing material loss and enhancing productivity.
  4. Recycling: The recycling industry utilizes chevron conveyor belts for handling waste materials, including plastics, metals, and paper. Their ability to maintain material flow on inclines makes them essential for sorting and processing facilities.
  5. Food Processing: In the food processing industry, chevron conveyor belts are used for transporting bulk food products. Their design ensures hygienic handling and minimizes product spillage during transport.

Chevron conveyor belts are an indispensable solution in various industries, providing enhanced material handling capabilities and operational efficiency. By following best practices for installation and maintenance and understanding the wide range of applications, businesses can maximize the benefits of these versatile conveyor belts.

Secondary Market About Chevron Conveyor Belt

Used Chevron Conveyor Belts

Opting for used chevron conveyor belts can be a cost-effective solution for many businesses. While new belts offer the latest features and longer life spans, used belts provide a viable alternative for those looking to reduce costs without compromising too much on quality. Here, we discuss the viability and considerations of choosing used chevron conveyor belts, along with five examples of scenarios where they can be effectively utilized.

Viability of Used Chevron Conveyor Belts

Used chevron conveyor belts can be a practical option for businesses operating on a tight budget or those requiring belts for temporary applications. These belts can still offer reliable performance if they are carefully inspected and maintained. Here are some key points to consider:

  1. Cost Savings: The most significant advantage of purchasing used chevron conveyor belts is the cost savings. Used belts can be significantly cheaper than new ones, making them an attractive option for businesses looking to minimize expenses.
  2. Sustainability: Opting for used belts is an environmentally friendly choice. By reusing belts, businesses can reduce waste and contribute to a circular economy, aligning with sustainability goals.
  3. Availability: Used belts are often readily available from various suppliers and auctions. This availability can be crucial for businesses needing a quick replacement or additional belts for short-term projects.
  4. Short-Term Projects: For projects with a limited duration, used chevron conveyor belts can be a cost-effective solution. They provide the necessary functionality without the high upfront cost of new belts.
  5. Testing and Prototyping: When developing new systems or testing prototypes, used belts can serve as a temporary solution. This allows businesses to test and refine their processes without investing heavily in new equipment.

Considerations When Opting for Used Belts

While used chevron belt conveyor offers several advantages, it is essential to consider certain factors to ensure they meet your operational needs.

  1. Condition and Wear: Inspect the condition of the used belts thoroughly. Look for signs of excessive wear, damage, or repairs. Ensure that the chevron patterns are intact and the belt material is still robust.
  2. History and Usage: Understand the history of the belt. Knowing how long it was used and in what conditions can give you an idea of its remaining lifespan and suitability for your application.
  3. Compatibility: Ensure the used belt is compatible with your existing conveyor system. Check the dimensions, material, and pattern height to confirm that it will fit and function correctly.
  4. Supplier Reliability: Purchase used belts from reputable suppliers who provide detailed information about the condition and history of the belts. Reliable suppliers may also offer warranties or return policies.
  5. Cost vs. Benefit: Weigh the cost savings against the potential downsides of reduced lifespan and performance. In some cases, investing in a new belt may offer better long-term value.

While new chevron conveyor belts offer the latest technology and longer life spans, used belts can be a viable and cost-effective alternative for many applications. By carefully considering the condition, compatibility, and supplier reliability, businesses can effectively use used chevron conveyor belts to meet their operational needs and achieve significant cost savings.

FAQs About Chevron Conveyor Belt

What is Chevron conveyor belt?

A Chevron conveyor belt is a type of conveyor belt that features a distinct pattern of chevrons, or V-shaped ridges, molded onto the surface. These chevrons help to increase the belt’s grip, making it ideal for transporting loose, bulk materials over steep inclines. The unique design prevents materials from slipping back or spilling off the sides, ensuring efficient and reliable transport. Chevron conveyor belts are commonly used in various industries such as agriculture, mining, construction, recycling, and food processing, where the ability to move materials at angles of up to 40 degrees is particularly beneficial.

What is the type of conveyor belt?

Conveyor belts come in a variety of types, each designed for specific applications and material handling needs. Some common types include:
Flat Conveyor Belts: Used for moving products along a straight path, ideal for transporting goods in manufacturing and packaging.
Modular Conveyor Belts: Made of interlocking plastic modules, these belts are used for complex conveying paths including curves and inclines.
Cleated Conveyor Belts: Feature vertical cleats or barriers to prevent materials from sliding back, used in applications requiring steep incline transportation.
Chevron Conveyor Belts: Have V-shaped patterns to enhance grip and prevent material rollback on steep inclines.
Roller Bed Conveyor Belts: Utilize rollers to support the belt and are used for heavy loads over long distances.
Wire Mesh Conveyor Belts: Made from metal wire or strips, used in high-temperature applications or for handling products that need air circulation.

What are the biggest conveyor belt companies?

The global conveyor belt industry is dominated by several key companies known for their high-quality products and innovative solutions. Some of the biggest conveyor belt companies include:
Continental AG: A leading German company, Continental offers a wide range of conveyor belts and systems, known for their durability and performance.
gestone Corporation**: A Japanese multinational, Bridgestone is renowned for its advanced conveyor belt technologies and extensive product range. 3. Fenner Dunlop: With operations in North America, Europe, and Australia, Fenner Dunlop is a major player in the conveyor belt market, providing robust solutions for heavy-duty applications. 4. Sempertrans: Part of the Semperit Group, this Austrian company is known for its high-quality conveyor belts used in mining, cement, and steel industries. 5. Goodyear Belting: Known for its innovative products, Goodyear Belting offers a wide range of conveyor belts catering to various industries, including mining and manufacturing.
These companies lead the market through continuous innovation, extensive product lines, and commitment to quality, making them reliable choices for industrial conveyor belt needs.

What is the biggest conveyor belt in the world?

The world’s longest conveyor belt system is located in the Western Sahara, specifically in the phosphate mines of Bou Craa. This conveyor belt is an incredible 98 kilometers (61 miles) long, making it the largest conveyor system in the world. The belt is used to transport phosphate rock from the mines to the port of El-Aaiun. What makes this conveyor belt remarkable is not just its length but also the challenging conditions it operates in, including harsh desert environments. The system is designed to handle a continuous flow of material, demonstrating the efficiency and reliability of conveyor belt technology on a massive scale. This conveyor belt has become an iconic example of industrial engineering, showcasing the capabilities of modern material handling systems.

Jordan Smith

Jordan Smith, a seasoned professional with over 20 years of experience in the conveyor system industry. Jordan’s expertise lies in providing comprehensive solutions for conveyor rollers, belts, and accessories, catering to a wide range of industrial needs. From initial design and configuration to installation and meticulous troubleshooting, Jordan is adept at handling all aspects of conveyor system management. Whether you’re looking to upgrade your production line with efficient conveyor belts, require custom conveyor rollers for specific operations, or need expert advice on selecting the right conveyor accessories for your facility, Jordan is your reliable consultant. For any inquiries or assistance with conveyor system optimization, Jordan is available to share his wealth of knowledge and experience. Feel free to reach out at any time for professional guidance on all matters related to conveyor rollers, belts, and accessories.
