# Conveyor Belt Load Calculation Methods

The accuracy of **conveyor belt load calculation** is pivotal in the design and operation of conveyor systems, ensuring they are both efficient and safe. This process determines the maximum capacity a conveyor belt can handle, which is crucial for preventing overloading and potential system failures. Various tools and resources are available to assist with these calculations, including specialized Excel sheets, online calculators, and comprehensive handbooks. These instruments provide a solid foundation for engineers and designers to create conveyor systems that are not only reliable but also optimized for specific operational requirements. Incorporating precise conveyor belt load calculation into the planning phase contributes significantly to the overall success and longevity of conveyor system projects.

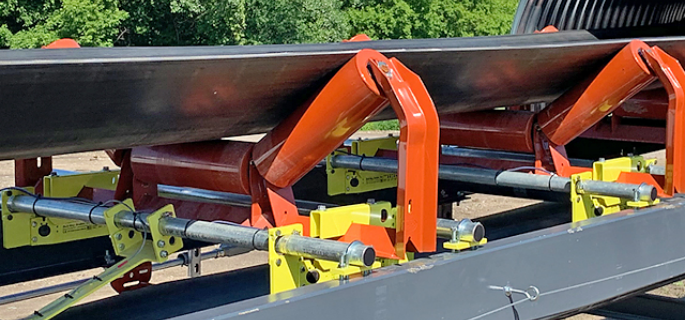

## The Basics of Conveyor Belt Load Calculation

Understanding the fundamentals of conveyor belt load calculation is essential for the design, efficiency, and longevity of conveyor systems. This process involves determining the amount of load that a conveyor belt can support while operating at optimal efficiency. Accurate load calculations ensure that the conveyor belt selected is suitable for the material handling requirements, preventing potential system failures and extending the conveyor system’s life.

### Importance of Conveyor Belt Load Calculation

Conveyor belt load calculation is critical for several reasons:

**System Efficiency**: Proper load calculations ensure that the conveyor system operates within its designed capacity, maintaining efficiency and preventing overloading that can lead to equipment wear and tear.**Belt Longevity**: By ensuring that the conveyor belt is not overloaded, its lifespan is extended, reducing the need for frequent replacements and maintenance.**Safety**: Accurate load calculations contribute to the overall safety of the conveyor system, preventing accidents that can occur due to overloading or mechanical failures.

### Key Terms and Variables

Several key terms and variables are essential in the process of conveyor belt load calculation:

**Belt Speed (V)**: The speed at which the conveyor belt moves, typically measured in feet per minute (fpm) or meters per minute (mpm).**Load per Unit Length (W)**: The weight of the material that the conveyor belt is carrying over a specific unit of length, usually expressed in pounds per foot (lbs/ft) or kilograms per meter (kg/m).**Total Weight of the Conveyed Material (Wm)**: The total weight of the material being transported on the conveyor belt over the entire length of the conveyor.**Belt Width (B)**: The width of the conveyor belt, which directly influences the belt’s load capacity.**Material Density (ρ)**: The density of the material being conveyed, which affects the volume of material that can be transported on the belt.**Conveyor Angle (θ)**: The incline or decline angle of the conveyor, which impacts the effective load capacity of the conveyor belt.

### Calculating Conveyor Belt Load

The basic formula for calculating the load on a conveyor belt is as follows:

[ Total Load = Load per Unit Length \times Conveyor Length + Additional Loads ]

Where additional loads include the weight of the belt itself, any accessories attached to the belt, and the impact of the conveyor angle on the material’s effective weight.

**Determine the Load per Unit Length**: This involves calculating the weight of the material that will be carried on the conveyor belt over a specific unit of length, taking into account the material density and the cross-sectional area of the material load on the belt.**Calculate the Total Weight of the Conveyed Material**: Multiply the load per unit length by the total length of the conveyor to get the total weight of the material being conveyed.**Factor in the Conveyor Angle**: For inclined or declined conveyors, adjust the calculated load based on the angle, considering the gravitational effect on the material’s effective weight.**Include the Weight of the Belt and Accessories**: Add the weight of the conveyor belt itself and any accessories or additional equipment attached to the belt to the total load calculation.

Accurate conveyor belt load calculation is a foundational aspect of designing an efficient and reliable conveyor system. By understanding and applying the key terms and variables involved in load calculation, engineers and system designers can ensure that the conveyor belt selected meets the required material handling specifications, optimizing both the performance and lifespan of the conveyor system. This careful calculation and selection process not only enhances operational efficiency but also contributes to the safety and durability of the conveyor system.

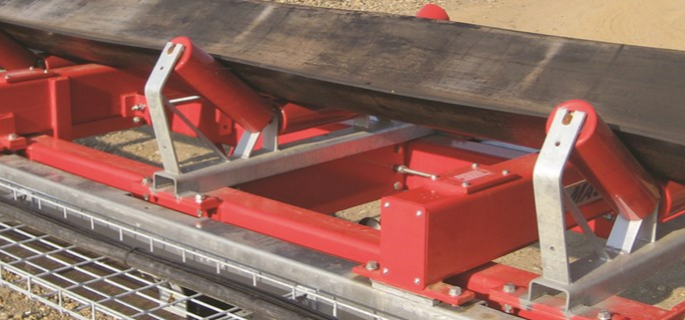

## Conveyor Belt Load Calculation Parameters

To calculate the load on a conveyor belt, various parameters must be considered. Here’s a detailed description of these parameters:

### Belt Speed (V)

**Definition**: The speed at which the conveyor belt moves, usually measured in meters per second (m/s) or feet per minute (fpm).**Impact**: The belt speed influences the capacity of the conveyor. Higher speeds increase the throughput but may also require more power and a stronger belt.

### Belt Width (B)

**Definition**: The width of the conveyor belt, typically measured in meters (m) or inches (in).**Impact**: The width determines the cross-sectional area of the material that can be carried. A wider belt can carry more material, thus increasing the load capacity.

### Belt Length (L)

**Definition**: The total length of the conveyor belt from the head pulley to the tail pulley, measured in meters or feet.**Impact**: The length affects the total load the belt can carry over its entire span. Longer belts require more power to operate, especially if there are inclines or declines.

### Material Flow Rate (Q)

**Definition**: The volume or mass of material that the conveyor transports per unit of time, usually expressed in cubic meters per hour (m³/h) or tons per hour (tph).**Impact**: The flow rate is directly related to the conveyor load. Higher flow rates increase the load on the belt.

### Density of Material (ρ)

**Definition**: The mass per unit volume of the material being transported, commonly measured in kilograms per cubic meter (kg/m³) or pounds per cubic foot (lb/ft³).**Impact**: The density affects the mass of material on the conveyor belt. Denser materials increase the load, impacting the required power and belt strength.

### Belt Tension (T)

**Definition**: The force required to move the belt and its load, measured in newtons (N) or pounds-force (lbf).**Impact**: Proper belt tension is crucial for the efficient operation of the conveyor. Insufficient tension can cause slippage, while excessive tension can damage the belt or the drive system.

### Inclination Angle (θ)

**Definition**: The angle at which the conveyor is inclined relative to the horizontal plane, measured in degrees.**Impact**: The inclination angle influences the load due to the gravitational component acting on the material. Steeper angles require more power and affect the belt’s load capacity.

### Load Per Unit Length (W)

**Definition**: The amount of material load per unit length of the conveyor belt, typically expressed in kilograms per meter (kg/m) or pounds per foot (lb/ft).**Impact**: This parameter is used to calculate the total load on the conveyor, which is crucial for determining the required motor power and belt strength.

### Drive Efficiency (η)

**Definition**: The efficiency of the conveyor’s drive system, a dimensionless factor usually expressed as a percentage.**Impact**: Higher efficiency means less power is lost in the drive system, allowing for more effective operation and potentially reducing the required power for a given load.

### Friction Factor (f)

**Definition**: The coefficient of friction between the conveyor belt and the rollers or between the material and the belt, a dimensionless quantity.**Impact**: The friction factor impacts the required power to move the belt and its load. Higher friction requires more power, which influences motor selection and energy consumption.

### Belt Load (F)

**Definition**: The total force or load that the belt must carry, calculated by multiplying the material’s weight per unit length by the length of the belt section under consideration.**Impact**: The belt load determines the necessary motor power, belt strength, and overall conveyor system design. Accurately calculating this load is essential for the safe and efficient operation of the conveyor system.

### Motor Power (P)

**Definition**: The power required to drive the conveyor belt, measured in kilowatts (kW) or horsepower (HP).**Impact**: Motor power is directly related to the belt load, speed, and efficiency. Correct sizing of the motor ensures smooth operation without overloading or excessive energy consumption.

By considering these parameters, you can accurately calculate the load on a conveyor belt, ensuring that the conveyor system is designed and operated efficiently and safely.

## Factors Affecting Conveyor Belt Load Calculation

Calculating the load on a conveyor belt is a crucial aspect of designing and optimizing conveyor systems. The load calculation determines the required power, tension, and overall design parameters. Here’s a detailed breakdown of the key factors that influence conveyor belt load calculation:

1. **Material Characteristics**

**Material Type:**The type of material being transported significantly impacts the load calculation. Different materials have varying densities, friction coefficients, and flow characteristics.**Bulk Density:**The bulk density of the material (usually expressed in kg/m³) is essential to determine the weight of material on the belt per unit length.**Angle of Repose:**This is the angle at which material naturally settles on the belt. It affects the cross-sectional area of the material load and the stability during transportation.

2. **Belt Width and Speed**

**Belt Width:**The width of the belt affects how much material can be carried at any given time. A wider belt can transport more material, which increases the load.**Belt Speed:**The speed at which the belt moves impacts the rate of material transport. Higher speeds can increase the load due to the greater amount of material being moved per unit of time.

3. **Conveyor Inclination**

**Inclination Angle:**If the conveyor is inclined, the load calculation must account for the additional force required to move the material upward. The steeper the incline, the greater the load due to gravity’s opposition.**Height of Elevation:**The vertical distance the material is lifted also impacts the load. More energy and power are required to lift materials to higher elevations.

4. **Length of the Conveyor**

**Conveyor Length:**The longer the conveyor, the more frictional resistance there will be. This increases the load and the power needed to drive the belt.**Transfer Points:**Multiple transfer points along the conveyor can add to the load due to material drop-offs and pick-ups, as well as the frictional losses at these points.

5. **Idler Spacing and Type**

**Idler Spacing:**The spacing of idlers (support rollers) impacts the load on the belt. Closer spacing reduces the belt sag, leading to more stable load distribution but increases frictional resistance.**Idler Type:**The type of idlers used (e.g., trough, flat, or impact idlers) affects how the load is distributed and supported. Different idlers can cause variations in the load due to changes in resistance and material stability.

6. **Belt Tension**

**Tension Requirements:**The required tension to keep the belt taut and maintain the load without slipping is a critical factor. Higher tension increases the load on the drive system and can affect the belt’s lifespan.**Take-up Mechanism:**The type and efficiency of the take-up mechanism (gravity, screw, or hydraulic) also affect how tension is maintained and, consequently, the load calculation.

7. **Environmental Factors**

**Ambient Temperature:**Temperature can affect the belt material’s elasticity and, therefore, the tension required to carry the load.**Humidity and Moisture:**These can affect both the material being transported and the belt, leading to changes in friction and load calculation.**Dust and Debris:**Accumulation on the belt can increase the load and cause additional wear, which must be accounted for in the calculation.

8. **Drive System Efficiency**

**Motor Power and Efficiency:**The power of the motor and its efficiency directly influence the load the conveyor system can handle. Inefficient motors may require more power to move the same load, impacting the overall load calculation.**Gearbox and Drive Efficiency:**The efficiency of the gearbox and other drive components also plays a role. Losses in the drive system can increase the effective load on the conveyor.

9. **Safety Factors**

**Design Safety Margins:**Often, a safety factor is included in the load calculation to account for unexpected variations in material flow, environmental conditions, or operational changes.**Overload Protection:**The system must be designed to handle occasional overloads without failure, which affects the load calculation.

Conveyor belt load calculation is a complex process that involves multiple factors, each contributing to the overall load and performance of the conveyor system. By carefully considering material characteristics, conveyor dimensions, environmental conditions, and drive system efficiency, engineers can ensure that the conveyor belt operates effectively and safely under all expected conditions.

## Conveyor Belt Load Calculation Formula

To calculate the load on a conveyor belt, the following formulas are typically used. These formulas take into account various parameters that contribute to the overall load and the power required to move the conveyor belt.

### 1. **Load per Unit Length (W)**

This is the load per meter of belt length and is calculated as:W=(Q×ρ)/B

**W**= Load per unit length (kg/m or lb/ft)**Q**= Material flow rate (m³/h or ft³/h)**ρ**= Material density (kg/m³ or lb/ft³)**B**= Belt width (m or ft)

### 2. **Total Load (F)**

The total load on the conveyor belt load calculation by multiplying the load per unit length by the length of the belt:F=W×L

**F**= Total load on the belt (kg or lb)**W**= Load per unit length (kg/m or lb/ft)**L**= Conveyor belt length (m or ft)

### 3. **Power Required (P)**

The power required to move the conveyor belt is calculated using the following formula:P=(F×V)/η

**P**= Power required (kW or HP)**F**= Total load on the belt (N or lb)**V**= Belt speed (m/s or ft/min)**η**= Drive efficiency (dimensionless, often a percentage)

### 4. **Tension Calculation (T)**

The tension in the conveyor belt is an essential parameter and is calculated as:T=F×g×cos(θ)+f×F×sin(θ)

**T**= Tension in the belt (N or lbf)**F**= Total load on the belt (kg or lb)**g**= Acceleration due to gravity (9.81 m/s² or 32.2 ft/s²)**θ**= Inclination angle of the conveyor (degrees)**f**= Friction factor (dimensionless)

### 5. **Material Load on the Belt**

For the case where the material is uniformly loaded along the belt, the total mass of material on the belt can be calculated as:M=ρ×A×L

**M**= Total mass of material on the belt (kg or lb)**ρ**= Material density (kg/m³ or lb/ft³)**A**= Cross-sectional area of the load on the belt (m² or ft²)**L**= Conveyor belt length (m or ft)

### 6. **Cross-Sectional Area (A)**

For a uniformly loaded belt, the cross-sectional area can be estimated as:A=B×h

**A**= Cross-sectional area (m² or ft²)**B**= Belt width (m or ft)**h**= Height of the load on the belt (m or ft)

### 7. **Belt Power (P) Considering Load Incline**

When the belt is inclined, the power requirement also needs to account for the incline, using:P=(F×V)/η+(F×g×sin(θ))×V

**θ**= Inclination angle of the conveyor (degrees)

These formulas provide a comprehensive way to calculate the load on a conveyor belt, including the power required to move the load. The parameters such as belt speed, material flow rate, belt width, and inclination angle all play a crucial role in determining the total load and the power needed for operation.

## Tools and Resources for Accurate Conveyor Belt Load Calculation

The accuracy of conveyor belt load calculation significantly impacts the design, efficiency, and safety of conveyor systems. Fortunately, several tools and resources are available to engineers and designers that facilitate precise calculations. These tools range from Excel-based applications and online calculators to comprehensive design handbooks, each offering unique benefits to streamline the conveyor design process.

### Conveyor Belt Load Calculation Excel

Excel-based tools are among the most accessible and widely used resources for conveyor belt load calculation. These tools leverage the power of Excel’s computational and organizational capabilities, providing a user-friendly interface for inputting data and receiving immediate calculations. Features typically include:

**Predefined Formulas**: Excel sheets come with embedded formulas for calculating load per unit length, total material weight, and the impact of conveyor angles, among other parameters.**Customizable Inputs**: Users can input specific data related to their conveyor system, such as material density, belt speed, and conveyor length, allowing for tailored calculations.**Immediate Results**: Excel tools provide instant calculations, enabling designers to quickly assess different scenarios and make informed decisions about belt selection and system design.

### Belt Conveyor Calculation Excel & Online Tools

In addition to downloadable Excel programs, online calculators offer another convenient option for performing conveyor belt load calculation. These web-based tools allow users to perform calculations from anywhere, without the need for specific software. Features include:

**User-Friendly Interface**: Online calculators typically feature a straightforward interface, guiding users through the input process.**Wide Accessibility**: Being web-based, these tools can be accessed from any device with an internet connection, facilitating collaboration among team members.**Real-Time Adjustments**: Users can easily adjust input values to explore different design scenarios and immediately see the impact on load calculations.

### Belt Conveyor Design Handbook PDF

For those seeking a more in-depth understanding of conveyor belt load calculation, design handbooks such as the CEMA Belt Conveyor Design Manual offer comprehensive guidance. These PDF handbooks cover:

**Comprehensive Methodologies**: Detailed explanations of the methodologies for calculating conveyor belt loads, including considerations for different materials and conveyor configurations.**Best Practices**: Insights into industry best practices for conveyor design, focusing on optimizing efficiency and safety.**Case Studies**: Real-world examples that illustrate the application of load calculation principles in various scenarios.

### Advantages of Using Specialized Tools and Resources

Utilizing these tools and resources for conveyor belt load calculation offers several advantages:

**Accuracy**: By relying on proven formulas and methodologies, engineers can ensure accurate calculations that reflect the real-world performance of conveyor systems.**Efficiency**: Tools like Excel sheets and online calculators speed up the calculation process, allowing for more time to be spent on design optimization and problem-solving.**Informed Decision-Making**: Access to comprehensive resources like design handbooks empowers designers with the knowledge to make informed decisions regarding conveyor system design and belt selection.

The selection of tools and resources for conveyor belt load calculation plays a crucial role in the design and implementation of efficient and safe conveyor systems. Whether opting for the convenience of Excel-based tools and online calculators or seeking the depth of information provided by design handbooks, engineers and designers have access to a wealth of resources that aid in the accurate calculation of conveyor belt loads. By leveraging these tools, professionals can ensure that their conveyor systems are designed to meet the specific demands of their applications, optimizing performance and extending the lifespan of the conveyor belt.

## Step-by-Step Guide to Conveyor Belt Load Calculation

Understanding how to calculate the load on a conveyor belt is crucial for designing a system that meets operational requirements without exceeding the belt’s capabilities. Here’s a straightforward approach to performing these calculations, avoiding complex formulas and special characters for clarity.

### Conveyor Belt Load Calculation Example

Let’s consider a practical example to illustrate how to calculate the load on a conveyor belt:

**Identify the Material Specifications**: Determine the material’s density you intend to convey. For instance, if you’re conveying sand with a density of approximately 1600 kg/m³, this value will be crucial for your calculations.**Determine the Conveyor Belt Speed**: Assume the conveyor belt operates at a speed of 1 meter per second (m/s).**Calculate the Cross-sectional Area of the Material on the Belt**: If the material forms a shape that can be approximated to a rectangle on the belt, measure the width and height of this rectangle. For example, if the material layer is 0.5 meters wide across the belt and 0.2 meters high, the cross-sectional area would be 0.1 square meters (m²).**Calculate the Load per Meter**: Multiply the material’s density by the cross-sectional area to find the load per meter. Using the sand example, the load per meter would be 160 kg/m (1600 kg/m³ * 0.1 m²).**Determine the Total Load**: Multiply the load per meter by the length of the conveyor belt to find the total load. If the conveyor belt is 100 meters long, the total load would be 16,000 kg.

### Conveyor Calculation Sheet

To streamline the process, engineers often use standardized calculation sheets. These sheets are designed to input known values (like material density, belt speed, and dimensions of the material on the belt) and automatically calculate the load per meter and total load. Using a conveyor calculation sheet can significantly reduce the time spent on calculations and minimize the risk of errors.

**Accessibility**: These sheets are usually available in Excel format or as online calculators, making them easily accessible to engineers.**Customization**: While standardized, these sheets often allow for customization to accommodate specific operational parameters or unique aspects of the conveyor design.

A step-by-step guide to **conveyor belt load calculation** provides a clear path for engineers to determine the necessary parameters for designing an efficient and effective conveyor system. By following this guide and utilizing tools like conveyor calculation sheets, engineers can ensure their designs meet the required specifications and operate within safe limits.

This practical approach to load calculation, exemplified through a straightforward example and the use of standardized calculation tools, underscores the importance of accurate calculations in the design and optimization of conveyor systems. Ensuring that a conveyor belt is not overloaded is key to maintaining operational efficiency, prolonging the system’s lifespan, and safeguarding against potential failures.

Exploring advanced considerations in conveyor belt load calculation is essential for designing systems that are both efficient and resilient under varying operational conditions. This section delves into the complexities of dynamic loads, impact loading, and the influence of conveyor angles on load capacity, providing insights into the nuanced aspects of conveyor design.

## Advanced Considerations in Conveyor Belt Load Calculation

### Dynamic Loads Due to Starting and Stopping

When a conveyor starts or stops, it doesn’t just deal with the static load of the material it carries. Dynamic loads come into play, significantly affecting the system’s stress levels. These loads can be substantially higher than the static load due to the acceleration and deceleration of the conveyor belt. Calculating these dynamic loads requires understanding the conveyor’s operational profile, including start-up and shut-down sequences, and the inertia of the conveyor and the material. Engineers must design the conveyor system’s drive and control systems to manage these dynamic loads effectively, ensuring that the belt can handle the increased stress without compromising its integrity or lifespan.

### Impact Loading

Impact loading occurs when material is dropped onto the conveyor belt, introducing a force that can be significantly higher than the static load of the material. This is especially relevant in systems where materials are fed onto the conveyor from a height, such as from a hopper or a chute. The impact can cause damage to the belt and the conveyor structure if not properly accounted for in the design phase. To mitigate the effects of impact loading, engineers can use impact idlers, which are designed to absorb the force of falling material, and design the feed system to minimize the drop height.

### Effect of Inclined Angles on Load Capacity

The angle of inclination of a conveyor belt affects its load-carrying capacity. As the angle increases, the potential for material to slip back down the belt also increases, effectively reducing the conveyor’s capacity to move material uphill. To calculate the load capacity of an inclined conveyor, engineers must consider the material’s angle of repose and the coefficient of friction between the material and the belt. In some cases, cleated belts or sidewalls may be necessary to prevent slippage and maintain the desired throughput.

### Calculating for Varied Operational Conditions

Conveyor systems often operate under a range of conditions, including varying loads, speeds, and environmental factors. Engineers must consider these variations in their calculations to ensure the conveyor system is versatile and robust. For example, a conveyor that transports both light and heavy materials must be designed to handle the maximum expected load without excessive wear or energy consumption when moving lighter loads.

Advanced considerations in conveyor belt load calculation highlight the importance of a comprehensive approach to conveyor design. By accounting for dynamic loads, impact loading, and the effects of inclined angles, engineers can create conveyor systems that are not only efficient but also durable and adaptable to a wide range of operational scenarios. These considerations ensure that the conveyor system can withstand the rigors of everyday use, minimizing downtime and maintenance requirements while maximizing productivity and lifespan.

## Selecting the Right Conveyor Belt Based on Load Calculations

The process of selecting the appropriate conveyor belt for a system is a critical decision that impacts the efficiency, safety, and cost-effectiveness of material handling operations. Conveyor belt load calculation provides essential data that help in making this decision. Understanding how to interpret and use this data is key to choosing a conveyor belt that meets the operational requirements without being over-specified, which can unnecessarily increase costs.

### Factors Influencing Belt Selection

**Belt Strength and Durability**: The calculated load directly impacts the required belt strength, which is determined by the belt’s tensile rating and the maximum operating tension. The belt must be strong enough to handle the peak loads without stretching excessively or failing.**Belt Width**: The width of the belt is determined by the load’s size and density, the belt speed, and the conveyor’s troughing angle. A wider belt may be necessary to distribute the load more evenly and prevent spillage.**Material Characteristics**: The type of material being conveyed affects the choice of belt material and surface texture. Abrasive materials require belts with high wear resistance, while sticky materials might need belts with special coatings to prevent material build-up.**Operational Environment**: Environmental factors such as temperature, moisture, and exposure to chemicals or UV light influence the selection of belt materials that can withstand these conditions without degrading.

### Using Load Calculations for Belt Selection

**Determine Maximum Load Capacity**: Use conveyor belt load calculations to determine the maximum load the belt must support. This includes both the weight of the material and any additional dynamic loads that may occur during operation.**Calculate Safety Margin**: It’s prudent to select a belt with a capacity that exceeds the maximum calculated load by a safety margin. This accounts for unforeseen stresses and variations in material flow, ensuring the belt can handle occasional overloads without damage.**Consider Future Load Variations**: Anticipate potential changes in the material handling requirements, such as increases in production volume or changes in material characteristics. Selecting a belt that can accommodate these future variations ensures the system’s scalability and longevity.**Evaluate Belt Specifications**: Compare the calculated requirements with the specifications of available conveyor belts. Consider factors such as tensile strength, modulus of elasticity, and manufacturer recommendations for specific applications.**Consult with Manufacturers**: Engage with conveyor belt manufacturers or suppliers to discuss the application specifics. Their expertise can provide valuable insights into the most suitable belt options based on the calculated loads and operational conditions.

Selecting the right conveyor belt based on load calculations is a meticulous process that balances operational requirements with cost considerations. By thoroughly analyzing the calculated loads and considering the material characteristics and environmental conditions, engineers can make informed decisions that optimize the performance and durability of the conveyor system. This careful selection process ensures that the conveyor belt not only meets the current operational demands but is also capable of accommodating future changes, thereby maximizing the investment and ensuring the system’s reliability and efficiency over its lifespan.

The integration of accurate** conveyor belt load calculation** into the conveyor belt selection process is essential for designing a system that is both effective and economical. This approach ensures that the chosen conveyor belt is perfectly matched to the system’s requirements, providing a foundation for safe, efficient, and long-lasting material handling operations.

**Fill out the inquiry form to receive a customized quote for Conveyor Belts.**

## FAQs about Conveyor Belt Load Calculation

**How do you calculate conveyor belt load?**

To calculate the load on a conveyor belt, you need to consider the weight of the material being transported over a specific length and the belt’s speed. The formula to calculate the conveyor belt load is:**Load (kg/m) = ρ × A × V****ρ** is the density of the material (kg/m³),**A** is the cross-sectional area of the material load on the belt (m²), which can be calculated based on the material pile shape and belt width,**V** is the volumetric flow rate (m³/s), which can be calculated as the product of the belt speed (m/s) and the cross-sectional area of the material.

This calculation gives you the load per meter of the belt, which helps in determining the total load that the conveyor needs to transport over a given period.

**What is the power equation for a conveyor belt?**

The power required to drive a conveyor belt can be calculated using the following equation:**P = (F × v) / 1000****P** is the power in kilowatts (kW),**F** is the total force exerted by the belt on the material to move it along, which includes the gravitational force of the material, the friction force between the material and the belt, and any additional forces due to incline or resistance (N),**v** is the belt speed in meters per second (m/s).

This equation calculates the power required to move the belt and the material on it at a constant speed.

**How do you calculate belt force?**

Belt force, or tension, can be calculated using the following formula:**T = (μ × Fg) + (m × a)****T** is the tension or force in the belt (N),**μ** is the coefficient of friction between the belt and the material or rollers,**Fg** is the gravitational force of the load and belt, which is the mass (m) times the acceleration due to gravity (g, approximately 9.81 m/s²),**m** is the mass of the belt and the material on it (kg),**a** is the acceleration or deceleration of the belt (m/s²).

This formula helps in determining the required tension in the belt to move the material without slipping or stalling.

**What determines conveyor belt carrying capacity?**

The carrying capacity of a conveyor belt is determined by several factors:**Belt width**: Wider belts can carry more material than narrower ones.**Belt speed**: Higher speeds allow for quicker transportation of materials, affecting how much material can be moved in a given time.**Troughing angle**: The angle of the troughing idlers determines how much material the belt can hold. A higher troughing angle means more material can be carried.**Material density**: Denser materials will weigh more, affecting the total weight the belt can carry.**Cross-sectional area of the load**: This depends on the material’s lump size and the belt’s troughing angle. A larger cross-sectional area means a higher carrying capacity.**Incline or decline of the conveyor**: Conveyors moving material uphill have a reduced carrying capacity due to the additional force required to lift the material.

**How to calculate material load on conveyor belt?**

To calculate the material load on a conveyor belt, you first determine the cross-sectional area of the material on the belt by multiplying the belt width, material height, and a troughing factor (if applicable). Then, calculate the volume of material per unit time by multiplying this area by the belt speed. Finally, multiply the volume by the material’s bulk density to get the material load on the belt, which is expressed as weight per unit length (e.g., kg/m or lb/ft).

**What is the formula for belt load factor?**

The formula for the belt load factor is:

Load Factor(LF)=M/(T×S)

M = Actual material load on the belt (in kg/m or lb/ft)

T

TT = Maximum theoretical load capacity of the belt (in kg/m or lb/ft)

S = Belt speed (in m/s or ft/s)

The load factor helps to determine how much of the belt’s capacity is being utilized.Calculating the load on a conveyor belt is a crucial aspect of designing and optimizing conveyor systems. The load calculation determines the required power, tension, and overall design parameters. Here’s a detailed breakdown of the key factors that influence conveyor belt load calculation:

1. **Material Characteristics****Material Type:** The type of material being transported significantly impacts the load calculation. Different materials have varying densities, friction coefficients, and flow characteristics.**Bulk Density:** The bulk density of the material (usually expressed in kg/m³) is essential to determine the weight of material on the belt per unit length.**Angle of Repose:** This is the angle at which material naturally settles on the belt. It affects the cross-sectional area of the material load and the stability during transportation.

2. **Belt Width and Speed****Belt Width:** The width of the belt affects how much material can be carried at any given time. A wider belt can transport more material, which increases the load.**Belt Speed:** The speed at which the belt moves impacts the rate of material transport. Higher speeds can increase the load due to the greater amount of material being moved per unit of time.

3. **Conveyor Inclination****Inclination Angle:** If the conveyor is inclined, the load calculation must account for the additional force required to move the material upward. The steeper the incline, the greater the load due to gravity’s opposition.**Height of Elevation:** The vertical distance the material is lifted also impacts the load. More energy and power are required to lift materials to higher elevations.

4. **Length of the Conveyor****Conveyor Length:** The longer the conveyor, the more frictional resistance there will be. This increases the load and the power needed to drive the belt.**Transfer Points:** Multiple transfer points along the conveyor can add to the load due to material drop-offs and pick-ups, as well as the frictional losses at these points.

5. **Idler Spacing and Type****Idler Spacing:** The spacing of idlers (support rollers) impacts the load on the belt. Closer spacing reduces the belt sag, leading to more stable load distribution but increases frictional resistance.**Idler Type:** The type of idlers used (e.g., trough, flat, or impact idlers) affects how the load is distributed and supported. Different idlers can cause variations in the load due to changes in resistance and material stability.

6. **Belt Tension****Tension Requirements:** The required tension to keep the belt taut and maintain the load without slipping is a critical factor. Higher tension increases the load on the drive system and can affect the belt’s lifespan.**Take-up Mechanism:** The type and efficiency of the take-up mechanism (gravity, screw, or hydraulic) also affect how tension is maintained and, consequently, the load calculation.

7. **Environmental Factors****Ambient Temperature:** Temperature can affect the belt material’s elasticity and, therefore, the tension required to carry the load.**Humidity and Moisture:** These can affect both the material being transported and the belt, leading to changes in friction and load calculation.**Dust and Debris:** Accumulation on the belt can increase the load and cause additional wear, which must be accounted for in the calculation.

8. **Drive System Efficiency****Motor Power and Efficiency:** The power of the motor and its efficiency directly influence the load the conveyor system can handle. Inefficient motors may require more power to move the same load, impacting the overall load calculation.**Gearbox and Drive Efficiency:** The efficiency of the gearbox and other drive components also plays a role. Losses in the drive system can increase the effective load on the conveyor.

9. **Safety Factors****Design Safety Margins:** Often, a safety factor is included in the load calculation to account for unexpected variations in material flow, environmental conditions, or operational changes.**Overload Protection:** The system must be designed to handle occasional overloads without failure, which affects the load calculation.

Conclusion

Conveyor belt load calculation is a complex process that involves multiple factors, each contributing to the overall load and performance of the conveyor system. By carefully considering material characteristics, conveyor dimensions, environmental conditions, and drive system efficiency, engineers can ensure that the conveyor belt operates effectively and safely under all expected conditions.
