In the realm of manufacturing, logistics, and material handling, the precision of conveyor belt length calculations cannot be overstated. Across various industries, from food processing to mining, the efficiency and safety of conveyor systems hinge on the accuracy of these measurements. An incorrect length can lead to operational disruptions, increased wear and tear on equipment, and significant financial losses. Recognizing this critical need, our blog post aims to serve as a definitive resource, offering a comprehensive guide on belt conveyor length calculation formulas and tools. By delving into the intricacies of these calculations, we equip engineers, technicians, and industry professionals with the knowledge to optimize their conveyor systems, ensuring peak performance and longevity. Through this exploration, the conveyor belt length calculation formula emerges not just as a mathematical expression, but as a cornerstone of modern industrial operations.

What Is the Conveyor Belt Length Calculation Formula and the Basics of Conveyor Belts

In the world of industrial operations and material handling, the conveyor belt stands out as a critical tool for moving goods and materials in a streamlined and efficient manner. The effectiveness of a conveyor belt system, however, is not just about having the right type of belt for the job; it’s also about ensuring that the belt is of the correct length. This is where the conveyor belt length calculation formula comes into play, offering a mathematical approach to determining the ideal belt size for various applications. Before diving into the specifics of this formula, it’s essential to understand the diverse range of conveyor belts available and their respective uses. This knowledge not only aids in selecting the appropriate belt type but also informs the calculation process, ensuring that the resulting measurements are as accurate as possible.

Overview of Conveyor Belts

Conveyor belts are integral components of material handling systems, designed to transport materials efficiently from one point to another. There are various types of conveyor belts, each serving different purposes across industries. Here, we explore at least eight types and their common applications:

  1. Flat Belts: The most common type, used for general material handling and moving items along an assembly line. Flat belts are versatile, supporting various applications from small, lightweight products to large, heavier items.
  2. V-Belts: Characterized by their V-shaped cross-section, these belts are primarily used for transmitting power between axles. They are commonly found in automotive and industrial applications where precise alignment is crucial.
  3. Modular Plastic Belts: Comprising interconnected plastic modules, these belts are durable and easy to clean, making them ideal for food processing applications where hygiene is a priority.
  4. Cleated Belts: Featuring raised sections, or cleats, on their surface, these belts are used for incline and decline applications to prevent products from sliding backward.
  5. Wire Mesh Belts: Known for their ability to withstand high temperatures, wire mesh belts are often used in baking and food processing industries where the belt is exposed to heat.
  6. Timing Belts: With teeth on the inner surface that match gears on the end pulleys, timing belts are used in applications requiring precise synchronization of mechanical components, such as in automotive engines.
  7. Roller Belts: Incorporating rollers into the belt design reduces friction and energy consumption, making them suitable for long-distance transport in warehouses and distribution centers.
  8. Spiral Wire Belts: Ideal for cooling and freezing applications, spiral wire belts offer excellent air circulation around the products, commonly used in the food industry for blast freezing.

Why Accurate Measurement Matters

The impact of precise conveyor belt length calculations on efficiency, safety, and cost-effectiveness cannot be overstated. Here are nine critical points highlighting the importance of accurate measurements:

  1. Minimized Downtime: Accurate conveyor belt length calculation formula ensures that replacement belts fit perfectly, reducing downtime for adjustments or replacements.
  2. Enhanced Safety: Properly sized belts prevent slippage and misalignment, significantly reducing the risk of accidents and injuries on the production floor.
  3. Improved Efficiency: Correct belt length optimizes tension, leading to smoother operations and increased productivity.
  4. Extended Equipment Life: Accurate measurements prevent excessive wear and tear on pulleys and motors, prolonging the lifespan of the entire conveyor system.
  5. Reduced Maintenance Costs: By avoiding premature conveyor belt damage and equipment failures, companies can significantly lower their maintenance expenses.
  6. Optimal Material Handling: Precise belt sizing ensures that materials are transported effectively, without spillage or accumulation that could lead to bottlenecks.
  7. Energy Savings: A well-fitted belt requires less energy to move, contributing to lower operational costs and a smaller carbon footprint.
  8. Quality Assurance: In industries where product integrity is paramount, such as food processing, the right belt size helps maintain quality by preventing contamination and damage.
  9. Regulatory Compliance: In certain sectors, compliance with safety and operational standards is non-negotiable. Accurate conveyor belt length calculations contribute to adherence to these conveyor belt regulations, avoiding fines and legal issues.

The conveyor belt length calculator formula is not just a technical necessity but a strategic asset that influences multiple facets of operational success. By understanding the types of conveyor belts and the significance of precise measurements, businesses can achieve a harmonious balance between productivity, safety, and cost-efficiency.

Mastering the Conveyor Belt Length Calculation Formula and Its Variations

In the intricate world of conveyor belt systems, the precision in the length of a conveyor belt is pivotal for operational efficiency. This section delves into the conveyor belt length calculation formula and its essential variations, catering to different types of belts and their unique requirements.

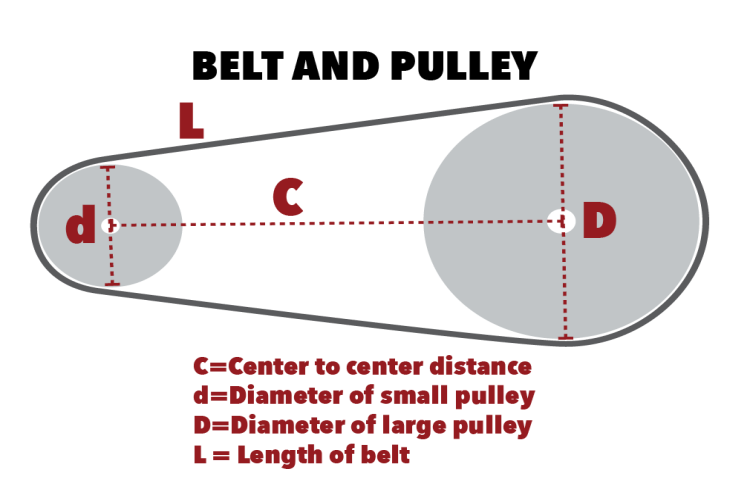

Center-to-Center Distance Formula

At the heart of conveyor belt length calculations for systems with two pulleys lies the Center-to-Center Distance Formula. This formula is instrumental in determining the exact length of the conveyor belt needed. It incorporates several critical variables:

  • L (belt length in inches),
  • C (center-to-center distance between the pulleys in inches),
  • D (diameter of the large pulley in inches),
  • d (diameter of the small pulley in inches), and
  • π (Pi, approximately 3.1416).

The formula is expressed as: L = 2C + π(D+d)/2 + (D-d)²/(4C). This calculation accounts for the path of the belt around both pulleys, ensuring that the belt is neither too tight nor too loose, which could affect the conveyor system’s efficiency and longevity.

Basic Formula for Two Pulley Systems

Basic Formula for Two Pulley Systems:


  • ( L ) = belt length
  • ( C ) = center-to-center distance between the pulleys
  • ( D ) = diameter of the large pulley
  • ( d ) = diameter of the small pulley

Alternative Formula (Simplified):

Alternative Formula (Simplified)

Steps to Measure and Calculate

Measure Pulley Diameters:

  • Measure the diameter of the larger pulley ((D)).
  • Measure the diameter of the smaller pulley ((d)).

Measure Center-to-Center Distance:

  • Measure the distance between the centers of the two pulleys ((C)). Ensure accuracy as this distance is crucial for the formula.

Apply the Formula:

  • Plug the measured values of (D), (d), and (C) into the chosen formula to calculate the belt length ((L)).

Example Calculation


  • ( D = 12 ) inches (large pulley diameter)
  • ( d = 6 ) inches (small pulley diameter)
  • ( C = 24 ) inches (center-to-center distance)

Using the basic formula:

So, the required belt length is approximately 76.645 inches.

Tips for Accurate Measurement

  • Consistency: Ensure that measurements are consistent and precise.
  • Tension Adjustments: Consider any adjustments for tensioning the belt, as this can affect the final required length.
  • Use Proper Tools: Utilize appropriate measuring tools such as a tape measure or calipers for diameter measurements.

By following these steps and using the provided formulas, you can accurately determine the required length of a conveyor belt based on the center-to-center distance between pulleys.

Adjusting for Take-Up: The take-up mechanism plays a crucial role in maintaining the tension of the conveyor belt, ensuring smooth operation and preventing slippage. When calculating the length of a conveyor belt, adjustments might be necessary to account for the extension or retraction of the take-up. This adjustment ensures that the belt maintains optimal tension throughout its operation, compensating for wear and stretch over time. Understanding the take-up mechanism’s impact is vital for accurate belt length calculation and system reliability.

V-Belt Length Calculation Formula: V-belts, with their distinctive V-shaped cross-section, are designed to fit snugly into corresponding grooves on pulleys, offering increased surface contact and traction. The V-Belt Length Calculation Formula differs from flat belts due to this unique profile. The formula takes into account the depth of the belt within the groove of the pulley, which affects the effective diameter and, consequently, the length of the belt. Calculating the correct length of a V-belt ensures efficient power transmission and reduces wear on the belt and pulleys.

Belt Conveyor Capacity Calculation Formula: Beyond the length of the belt, understanding the capacity of a conveyor belt is crucial for optimizing the movement of goods and materials. The Belt Conveyor Capacity Calculation Formula considers the belt speed, the width of the belt, and the material’s bulk density to determine the amount of material that can be transported over a given period. This formula is essential for designing a conveyor system that meets production requirements without overloading or underutilizing the conveyor, ensuring economic and efficient operation.

Each of these formulas and considerations plays a pivotal role in the design and maintenance of conveyor belt systems. By applying the conveyor belt length calculation formula and its variations appropriately, engineers and operators can ensure that their conveyor belts are perfectly tailored to their specific applications, enhancing efficiency, safety, and productivity.

Conveyor Belts Get a Quote
Try Gram Conveyor Belt Now!

🔒 Enhance your operations with premium belt conveyors. Get in touch immediately!

Applying the Conveyor Belt Length Calculation Formula: Practical Examples and Precision Tips

The practical application of the conveyor belt length calculation formula is crucial for the design, installation, and maintenance of efficient conveyor systems. This section provides a step-by-step example, explores alternative methods for complex configurations, and offers tips to ensure precision in calculations.

Step-by-Step Calculation Example

To illustrate the use of the center-to-center distance formula, let’s consider a conveyor system with two pulleys. Here’s how to apply the formula in a step-by-step manner:

  1. Identify Pulley Diameters: Assume the diameter of the large pulley (D) is 24 inches, and the small pulley (d) is 16 inches.
  2. Measure Center-to-Center Distance: The distance between the centers of the two pulleys (C) is measured to be 36 inches.
  3. Apply the Formula: Use the conveyor belt length calculation formula: L = 2C + π(D+d)/2 + (D-d)²/(4C).
  4. Calculate the Sum of Diameters: Add the diameters of the large and small pulleys: D+d = 24 inches + 16 inches = 40 inches.
  5. Perform the Calculation: Substitute the values into the formula and solve for L (the length of the conveyor belt).
  6. Determine Belt Length: After performing the calculations, you find that the required belt length (L) is approximately 115 inches.
  7. Verify the Result: Double-check all measurements and calculations to ensure accuracy before ordering or cutting the belt.

Alternative Methods for Complex Systems

In systems with more than two pulleys or non-linear paths, the “start and stop” technique becomes invaluable. This method involves:

  • Marking a starting point on the belt.
  • Measuring the distance as the belt moves over each pulley until it returns to the starting point.
  • Adding these measurements together to determine the total belt length.

This technique is particularly useful for custom or complex conveyor systems where standard formulas may not apply directly.

Applying the Conveyor Belt Length Calculation

Tips for Precision

Ensuring accuracy in conveyor belt length calculations is paramount. Here are eight tips to enhance precision:

  1. Use Accurate Tools: Employ high-quality measuring tapes or laser measuring tools for precise distance measurements.
  2. Verify Pulley Measurements: Measure the diameters of pulleys at the base, where the belt actually sits, not at the edges.
  3. Account for Belt Stretch: Consider the material of the conveyor belt and its potential stretch over time, especially for new belts.
  4. Consider System Tension: Understand how the tensioning mechanism affects belt length and adjust calculations accordingly.
  5. Double-Check Calculations: Always perform calculations at least twice to catch any potential errors.
  6. Consult Manufacturer Specifications: Refer to belt and pulley manufacturer specifications for additional insights into measurement adjustments.
  7. Record Historical Data: Keep records of previous installations and adjustments to inform future calculations.
  8. Seek Professional Advice: When in doubt, consult with a conveyor system engineer or a belt manufacturer for expert guidance.

By meticulously applying the conveyor belt length calculation formula, utilizing alternative methods when necessary, and adhering to precision tips, you can ensure the optimal selection and maintenance of conveyor belts in various industrial applications.

Navigating Tools and Resources for Applying the Conveyor Belt Length Calculation Formula

In the complex world of conveyor belt systems, having the right tools and resources at your disposal can significantly streamline the process of calculating the correct belt length. This section explores various aids, from online calculators to comprehensive guides, designed to assist professionals in accurately determining conveyor belt dimensions.

Conveyor Belt Length Calculator

Several online tools and calculators have been developed to simplify the conveyor belt length calculation process. Here are seven notable examples:

  1. Belt Length Calculator (Precision Pulley & Idler): Offers a user-friendly interface to input pulley diameters, center distances, and belt wrap angles to calculate the belt length.
  2. Conveyor Belt HQ: Provides a straightforward calculator for quick belt length estimations based on standard conveyor configurations.
  3. Dura-Belt Belt Length Calculator: Specializes in calculating the length of round belts and o-ring belts with a simple input method.
  4. Sparks Belting Conveyor Calculator: Aids in determining conveyor belt specifications for custom belt designs and replacements.
  5. Intralox Conveyor Belting Calculator: Focuses on modular plastic conveyor belts, offering calculations for belt length and sprocket placement.
  6. Regina Conveyor Calculation Tool: Offers comprehensive tools for calculating various aspects of conveyor belt systems, including length.
  7. Fenner Drives Online Belt Length Calculator: Provides calculations for a wide range of belt types, including V-belts and round belts.
Conveyor Belt Length Calculator

Belt Conveyor Calculation Excel and Online Tools

Excel spreadsheets,conveyor belt calculations formula and online tools can handle more complex conveyor belt calculations, offering flexibility and precision. Here are eight points highlighting their benefits:

  1. Customization: Excel allows for the customization of formulas to accommodate specific conveyor system parameters.
  2. Complex Calculations: Capable of handling multiple variables and conditions for more accurate results.
  3. Data Storage: Excel spreadsheets can store historical data for future reference and comparison.
  4. Accessibility: Many online tools are accessible from various devices, ensuring calculations can be performed anywhere.
  5. User Support: Some tools come with user guides and customer support for troubleshooting.
  6. Integration: Excel data can be integrated with other software for comprehensive system design and analysis.
  7. Templates: Numerous Excel templates are available online, tailored to conveyor belt calculations.
  8. Updates: Online tools are regularly updated to reflect the latest standards and technologies in conveyor system design.
Belt Conveyor Calculation Excel and Online Tools

Conveyor Belt Calculations PDF

For those who prefer offline resources, numerous PDF guides and manuals offer in-depth explanations and examples of conveyor belt calculations:

  1. Cema Conveyor Handbook: A comprehensive guide covering all aspects of conveyor belt design and calculation.
  2. Dunlop Conveyor Belt Design Manual: Offers detailed guidance on belt selection, installation, and maintenance.
  3. Goodyear’s Handbook of Conveyor & Elevator Belting: Provides an extensive overview of conveyor belt materials, design considerations, and calculation examples.
  4. Bridgestone Conveyor Belt Design Manual: Focuses on the technical aspects of belt conveyor design and calculation.
  5. MIT Calculation Methods for Conveyor Belt Systems: A technical paper detailing methodologies for conveyor belt system design and analysis.
  6. The Conveyor Belt Guide: Offers downloadable content on conveyor belt design and engineering.
  7. ISO Standards for Conveyor Beltings: Provides access to international standards for conveyor belts, including design and calculation criteria.
  8. Practical Belt Conveying Manual: A practical guide with a focus on real-world application and troubleshooting.

Belt Conveyor Design Calculation Example

Real-world examples of conveyor belt system design underscore the practical application of calculation formulas:

  1. Mining Conveyor System: Design calculations for a conveyor system transporting coal from the mine face to a processing plant, considering factors like incline angles and load volume.
  2. Airport Baggage Handling System: Example calculations for a baggage handling system, focusing on belt speed and load capacity to ensure efficient operation.
  3. Food Processing Conveyor: Design considerations for a conveyor belt in a food processing plant, including material selection and cleaning requirements.
  4. Manufacturing Assembly Line: Calculations for an assembly line conveyor belt, considering product weight, spacing, and production speed.
  5. Bulk Material Handling Conveyor: Example of a conveyor system designed for handling bulk materials like grains or minerals, focusing on capacity and durability.
  6. Pharmaceutical Packaging Conveyor: Design calculations for a conveyor belt system in a pharmaceutical packaging line, emphasizing precision and contamination control.

Each of these tools, resources, and examples serves as a valuable asset for professionals tasked with designing, installing, or maintaining conveyor belt systems, ensuring that the application of the conveyor belt length calculation formula leads to optimal system performance.

What Is The Effect of Belt Adjustment on Belt Length?

Belt adjustment typically involves changing the tension of the belt to ensure it operates efficiently and effectively within a belt-driven system. This adjustment can affect the effective length of the belt in the following ways:

  1. Tension and Slack: Adjusting the belt tension can reduce slack in the belt. Tightening the belt reduces its effective length, making it taut and preventing slippage. Conversely, loosening the belt increases its effective length, introducing slack and the potential for slippage.
  2. Stretching and Contraction: Over time, belts can stretch due to wear and material fatigue. Adjusting the tension helps compensate for this stretching. A properly tensioned belt maintains its effective length within the desired range, ensuring consistent performance.
  3. Alignment: Proper adjustment ensures that the belt runs smoothly and is properly aligned with the pulleys. Misalignment can cause the belt to run off-center, effectively altering its path length and potentially leading to uneven wear and reduced efficiency.
  4. Wear and Tear: Regular belt adjustments help distribute wear more evenly across the belt’s surface. A well-maintained belt that is correctly tensioned will wear more uniformly, preserving its effective length and extending its service life.
  5. Load Distribution: Adjusting the belt tension affects how the load is distributed across the belt. Proper tension ensures that the belt grips the pulleys evenly, optimizing the power transfer and maintaining consistent speed and performance.

In summary, adjusting the belt affects its effective length by managing tension, compensating for stretching, ensuring proper alignment, and distributing wear evenly. Regular and proper adjustment is crucial for maintaining the belt’s performance, efficiency, and longevity.

Optimize your system with our top-quality belt conveyors. Act now!

    Input this code: captcha

    FAQs about Conveyor Belt Length Calculation Formula

    What is the formula for the length of a conveyor belt?

    The formula for calculating the length of a conveyor belt, particularly for a two-pulley system, is rooted in understanding the dimensions and distances between the pulleys involved. The primary formula used is: L = 2C + π(D+d)/2 + (D-d)²/(4C), where L represents the belt length, C is the center-to-center distance between the pulleys, D and d are the diameters of the large and small pulleys, respectively, and π is Pi, approximately 3.1416. This formula accounts for the length of the belt as it wraps around both pulleys, ensuring that the belt is neither too tight nor too loose, which could affect the conveyor system’s efficiency and longevity. It’s essential to accurately measure the pulley diameters and the distance between the pulley centers to apply this formula correctly. Misestimations in these measurements can lead to incorrect belt length calculations, potentially causing operational inefficiencies or the need for belt adjustments post-installation.

    What is the formula for V belt length?

    The formula for calculating the length of a V-belt differs slightly from flat belts due to the V-belt’s unique cross-sectional shape and how it fits into the pulley grooves. The V-belt length calculation considers the depth of the belt within the pulley, affecting the effective diameter. A commonly used formula is: L = 2C + π(D+d)/2 + (D-d)²/(4C), with an additional factor to account for the belt’s depth in the pulley grooves. However, manufacturers often provide specific calculation methods or adjustments to this formula to ensure accuracy for V-belts, given their unique profile and the critical importance of tension in their effective operation. It’s advisable to consult with the belt’s manufacturer for the most accurate calculation method for a specific V-belt type.

    How are conveyor belts measured?

    Conveyor belts are typically measured based on their length and width to ensure they fit the conveyor system correctly and perform as expected. The length of a conveyor belt can be determined using the center-to-center distance formula for two-pulley systems or the “start and stop” method for more complex or custom conveyor setups. The “start and stop” method involves marking a starting point on the belt, measuring the distance as the belt moves over each pulley until it returns to the starting point, and adding these measurements together. The width of the conveyor belt is measured directly across the belt at its widest point. Accurate measurements are crucial for the belt’s proper function and longevity, as incorrect sizing can lead to operational issues, such as slippage, misalignment, or excessive wear.

    How do you find the length of a belt around two pulleys?

    Finding the length of a belt around two pulleys involves using a specific formula that accounts for the diameters of both pulleys and the distance between their centers. The formula is: L = 2C + π(D+d)/2 + (D-d)²/(4C). In this formula, L is the belt length, C is the center-to-center distance between the pulleys, D is the diameter of the larger pulley, d is the diameter of the smaller pulley, and π is Pi (approximately 3.1416). This calculation provides the total length of the belt needed to connect the two pulleys while allowing for proper tension and alignment. It’s essential to accurately measure the pulley diameters and the distance between their centers to ensure the calculated belt length meets the system’s requirements. This formula is particularly useful for designing new conveyor systems or replacing belts in existing setups, ensuring minimal downtime and optimal performance.

    Does belt length affect speed?

    While the length of a belt doesn’t affect speed, its thickness does. That’s why it’s important to choose the right type of belt for the pulleys you’re using.
    But, the length of a belt can affect the speed in a belt-driven system, such as those found in machinery or automotive applications. Here are a few ways in which belt length can impact speed:
    Belt Tension: A longer belt may have more slack, which can result in less efficient power transfer and reduced speed. Proper tension is crucial for optimal performance. If the belt is too loose, it can slip, reducing the speed of the driven component.
    Weight and Inertia: Longer belts tend to have more weight, which can increase the inertia of the system. This added inertia can slow down the acceleration and overall speed of the driven component, especially in systems where quick changes in speed are required.
    Flexibility and Vibration: Longer belts can be more prone to vibrations and flexing, which can lead to energy losses and reduced speed. Ensuring that the belt is appropriately supported and tensioned can mitigate these effects.
    Alignment and Wear: Longer belts require more precise alignment to prevent uneven wear and tear. Misalignment can cause friction losses and reduce the speed and efficiency of the system.
    Pulley Sizes: The length of the belt can also affect the choice of pulley sizes. In belt-driven systems, the ratio of the diameters of the driving and driven pulleys determines the speed ratio. A longer belt may necessitate changes in pulley sizes to achieve the desired speed.
    In summary, while the belt length itself does not directly determine speed, it influences various factors such as tension, weight, flexibility, and alignment, all of which can affect the overall speed and efficiency of the system.

    What belt length do I need for two pulleys 56 inches apart?

    Assuming that the pulleys have diameters of 6 and 20 inches, you need a belt that’s exactly 153.72 inches. To find that number on your own, you need to use the belt length formula:
    Belt length = π/2 × (DL+ DS) + 2L + (DL– DS)2/(4L)
    DL is the diameter of the larger pulley (here 20 inches);
    DS is the diameter of the smaller pulley (here 6 inches);
    and L is the distance between the center of the pulleys.
