# Key to Conveyor Success: Angle of Repose in Belt Conveyor

The concept of the** angle of repose in belt conveyor **is fundamental in understanding how these systems efficiently transport materials. This angle, essentially the steepest angle at which material can be piled without sliding, plays a crucial role in conveyor design. It determines the maximum incline angle of the belt that can be used while ensuring that the materials being transported do not slide back. Understanding and accurately determining the angle of repose in belt conveyor systems is vital for optimizing the conveyor’s efficiency, capacity, and safety. This angle varies with different materials, making it a key factor in customizing conveyor solutions for specific industrial needs.

## Basics of Angle of Repose in Belt Conveyor

The angle of repose in belt conveyor systems is a fundamental concept in the design and operation of these systems. It refers to the steepest angle at which loose material can be piled without slumping. In the context of conveyor belts, this angle is crucial for determining how material behaves when being transported.

### Definition of the Angle of Repose

The angle of repose is defined as the maximum angle at which an object can rest on an inclined plane without sliding down. This angle is determined by the interplay between gravitational force and the frictional force between the particles of the material. The angle of repose varies depending on the type of material, its size, shape, and moisture content.

**The Angle of Repose**

### Impact on Material Handling in Belt Conveyors

In belt conveyor systems, the angle of repose plays a significant role in several aspects:

**Loading and Unloading**: The angle at which material is loaded onto the conveyor impacts how it settles and moves. If the loading angle exceeds the material’s angle of repose, it can lead to spillage or uneven distribution.**Conveyor Belt Design**: The design of the conveyor, especially its inclination, is influenced by the angle of repose. A steeper belt angle can be used for materials with a lower angle of repose.**Volume and Speed**: Understanding the angle of repose helps in calculating the maximum volume of material that can be transported on the belt without spillage. It also influences the belt speed; materials with a high angle of repose may require slower belt speeds to prevent displacement.

### Relationship with Conveyor Belt Design

The angle of repose in belt conveyor design dictates several key decisions:

**Belt Width and Depth**: To accommodate the material without spillage, the belt width and depth are designed considering the angle of repose.**Troughing Angles**: The troughing angles of the idlers are selected based on the material’s angle of repose to ensure stability during transport.**Incline Angles**: Conveyor incline angles are often set with respect to the angle of repose to ensure efficient movement of materials uphill or downhill.

Understanding the angle of repose in belt conveyor systems is essential for efficient, safe, and economical material handling. It influences the design, operation, and troubleshooting of these systems, ensuring that materials are transported effectively without loss or damage.

## Angle of Repose in Belt Conveyor and Surcharge Angle

The angle of repose in belt conveyor and the surcharge angle are two critical parameters in the design and operation of belt conveyor systems. While they are related, each plays a unique role in conveyor belt calculations and design.

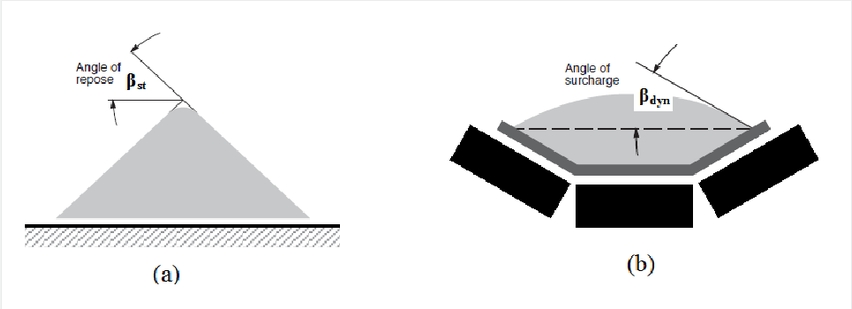

### Explanation of the Angle of Repose and Angle of Surcharge

The angle of repose, as previously defined, is the maximum angle at which a material can be piled without slumping. In contrast, the surcharge angle is the angle to the horizontal which the surface of the material assumes while the material is at rest on a moving conveyor belt. This angle is typically less than the angle of repose, as it accounts for the material’s behavior under motion.

### Differences and Similarities

**Differences**: The main difference lies in their occurrence; the angle of repose is observed when the material is stationary, while the surcharge angle is observed when the material is moving. The surcharge angle is generally smaller due to the compaction of the material during motion.**Similarities**: Both angles are influenced by the material’s properties like size, shape, and moisture content. They are crucial in determining the cross-sectional area of the material on the belt and, consequently, the belt’s capacity.

### Importance in Conveyor Belt Calculations and Design

**Belt Capacity**: Both angles are used to calculate the cross-sectional area of the material load on the belt, which directly impacts the conveyor’s capacity.**Belt Width and Speed**: The angles help determine the optimal belt width and speed, ensuring that the material is transported efficiently without spillage or excessive wear.**Safety and Efficiency**: Correctly accounting for these angles ensures the safety and efficiency of the conveyor system. Overlooking them can lead to material spillage, uneven loading, or even belt slippage.

While the angle of repose and the surcharge angle are distinct concepts, they are both integral to the design and operation of belt conveyor systems. Understanding their interplay is essential for optimizing conveyor performance and ensuring efficient material handling.

**See Also: Incline And Maximum Angle Belt Conveyor**

## Calculating the Angle of Repose in Belt Conveyor

Calculating the angle of repose in belt conveyor systems is crucial for efficient design and operation. This section provides an overview of the formula used for calculation and introduces tools for accurate measurement.

### Overview of the Angle of Repose Formula

The angle of repose is calculated using the formula (\tan^{-1}(\frac{H}{R})), where (H) is the height of the pile of material and (R) is the radius of the base of the pile. This formula derives the angle in radians or degrees, providing a precise measure of the material’s natural rest angle.

### Step-by-Step Guide on How to Calculate the Angle of Repose

**Material Piling**: Pour the material to form a conical pile on a flat surface.**Measure the Height (H)**: Measure the vertical height from the peak of the pile to the flat surface.**Measure the Radius (R)**: Measure the distance from the center of the pile’s base to its edge.**Apply the Formula**: Use the formula (\tan^{-1}(\frac{H}{R})) to calculate the angle of repose.

### Introduction to Tools Like Angle of Repose Calculators

For practical and industrial applications, several tools and calculators are available:

**Digital Protractors**: These tools can directly measure the angle of repose.**Software Applications**: There are software tools designed for calculating the angle of repose, which can be particularly useful for irregular or large-scale piles.**Online Calculators**: Various websites offer angle of repose calculators where you can input your measurements and receive instant calculations.

Understanding and accurately calculating the angle of repose in belt conveyor systems is vital for determining the correct conveyor design, ensuring efficient material handling, and preventing spillage and other operational issues.

## Choosing the Angle of Repose in Belt Conveyor

Choosing the Angle of Repose in Belt Conveyor design is crucial because it directly impacts the conveyor belt’s efficiency, capacity, and safety. The Angle of Repose is defined as the steepest angle at which material on the conveyor belt is stable and won’t slide or roll back.

### Factors Affecting the Angle of Repose

**Material Characteristics**: Different materials have different angles of repose based on their size, shape, moisture content, and cohesiveness. For example, dry sand has a different angle of repose compared to wet sand.**Conveyor Belt Speed**: The speed of the conveyor belt can affect the stability of materials. Higher speeds might require a lower angle of repose to prevent material from sliding back.**Conveyor Belt Surface**: The texture and material of the conveyor belt can affect how materials behave and thus their angle of repose. A rough surface might allow for a steeper angle.**Environmental Conditions**: Conditions such as humidity, temperature, and wind can affect the angle of repose, especially for outdoor conveyor systems.**Safety and Efficiency**: The chosen angle must balance efficiency (higher angles can carry more material) and safety (lower angles reduce the risk of accidents).

### Common Materials and Their Typical Angle of Repose

Material | Angle of Repose (Degrees) | Notes |
---|---|---|

Dry Sand | 34-44 | Higher angles for coarser sand |

Wet Sand | 45-55 | Moisture increases cohesiveness, allowing steeper angles |

Crushed Stone | 45-55 | Depends on stone size and shape |

Coal | 35-45 | Finer coal may have a lower angle |

Grain (e.g., Wheat, Corn) | 20-30 | Smooth surfaces lead to lower angles |

Iron Ore | 35-45 | Larger pieces may allow for a steeper angle |

### Guidelines for Choosing the Angle of Repose

**Material Testing**: Whenever possible, conduct tests with the specific material to determine its angle of repose under expected conditions.**Consult Manufacturer Data**: Conveyor belt and material manufacturers often provide data or guidance on the angle of repose.**Consider Safety Margins**: Always design with a margin of safety in mind, opting for slightly lower angles of repose than the maximum to account for variations in material and environmental conditions.**Adjust for Belt Design**: Factors such as sidewalls and cleats on the conveyor belt can allow for steeper angles by physically supporting the material.

By carefully considering these factors and consulting the table for general guidance, designers can choose an appropriate Angle of Repose for their belt conveyor system, ensuring efficient and safe operation.

## Choosing The Right Size Belt Conveyor

Choosing the right size for a belt conveyor involves a detailed analysis of your operational requirements and the characteristics of the materials you intend to transport. Let’s break down the factors you need to consider and illustrate these points with an image and a table to aid understanding.

### Factors to Consider

**Material Characteristics**

**Type and Behavior**: Is it powdery, granular, wet, or sticky? This influences the belt material and design.**Bulk Density**: Important for calculating the load. Heavier materials require stronger belts.**Size of Material**: Determines the minimum belt width to prevent spillage.

**Conveyor Capacity**

**Throughput**: The volume or mass of material transported over a given period, typically measured in tons per hour (tph) or cubic meters per hour (m³/h).

**Belt Speed**

- Influences the conveyor’s capacity. Higher speeds allow for higher throughput but may not be suitable for all materials.

**Conveyor Dimensions**

**Length and Incline**: Affects the required motor strength and belt type. Inclined conveyors need belts with better grip.**Width**: Directly impacts the conveyor’s capacity and material spillage. Wider belts can carry more and reduce spillage.

**Operating Environment**

- Temperature, humidity, and exposure to chemicals can dictate the choice of belt material.

**Load and Speed Calculations**

- Important for determining the motor’s power requirement and the belt strength.

### Visual Aids for Understanding

#### Image Illustration

A diagram showing a side view of an inclined belt conveyor with labeled parts (e.g., motor location, belt, incline angle) and different materials (granular, powdery) to demonstrate how material type influences design considerations.

#### Key Conveyor Specifications and Their Impact

Specification | Description | Impact |
---|---|---|

Material Type | Nature of the material being transported | Determines the required belt texture and material for handling specific goods. |

Belt Width | Width of the conveyor belt | Affects the volume of material that can be carried, directly influencing the conveyor capacity. |

Throughput | Volume or mass of material transported per time unit | Helps calculate the necessary belt speed and width to achieve desired capacity. |

Belt Speed | Speed at which the belt moves | Higher speeds can increase capacity but may require special considerations for material handling. |

Conveyor Length | Distance from the loading to the discharge point | Longer conveyors require stronger belts and potentially more powerful motors. |

Incline Angle | Angle of elevation for inclined conveyors | Influences the type of belt used (e.g., cleated for steep inclines) to prevent material rollback. |

### Selecting the Right Conveyor

**Assessment**: Understand the material characteristics and your operational needs.**Calculation**: Use throughput and material density to calculate the required belt width and speed.**Specification Choice**: Decide on the belt material and design based on material type, environmental conditions, and conveyor dimensions.**Consultation**: It might be helpful to consult with manufacturers or engineers for tailored advice.

By considering these detailed factors and using visual aids like diagrams and tables, you can better understand the complexities involved in selecting the right size belt conveyor for your specific needs. This process ensures efficient, cost-effective, and safe material handling in various operational contexts.

## Practical Examples of Angle of Repose in Belt Conveyor

The **angle of repose in belt conveyor **systems plays a pivotal role in real-world applications. This section explores practical examples and case studies to illustrate its significance.

### Real-World Examples

**Mining Industry**: In mining, the angle of repose determines how minerals are piled and transported. Conveyors are designed considering the angle of repose to prevent spillage of valuable ores.**Agriculture**: For granular products like grains, the angle of repose affects how they are stored and moved in conveyor systems, influencing the design of silos and hoppers.**Construction Materials**: Handling materials like sand and gravel requires conveyors designed with the angle of repose in mind to manage different flow characteristics.

### Case Study: Angle of Repose of Coal

Coal, with its varying sizes and moisture content, has a specific angle of repose, impacting its handling in power plants and shipping facilities. Conveyors designed without proper consideration of coal’s angle of repose can lead to inefficient operation and material wastage.

### Example Calculations Using the Angle of Repose Formula

Consider a scenario where coal is piled with a height of 2 meters and a base radius of 3 meters. Applying the formula (\tan^{-1}(\frac{2}{3})), the angle of repose is calculated, guiding the design of the conveyor system for optimal coal handling.

Understanding the angle of repose through these practical examples and case studies highlights its critical role in various industries, emphasizing the need for accurate calculation and consideration in conveyor system design.

## Surcharge Angle and Its Significance in Belt Conveyor

The surcharge angle is a vital factor in belt conveyor design, complementing the angle of repose. This section delves into its definition, relationship with the angle of repose in belt conveyor, and practical implications.

### Detailed Explanation of What a Surcharge Angle Is

The surcharge angle is the angle to the horizontal that the surface of the material assumes while on a moving conveyor belt. Unlike the angle of repose, which is observed when the material is stationary, the surcharge angle considers the dynamic behavior of the material during transportation.

### How the Surcharge Angle Complements the Angle of Repose

While the angle of repose provides a baseline for material behavior, the surcharge angle offers a more realistic view of how materials behave under motion. It helps in designing conveyors that efficiently handle materials without spillage or excessive wear.

### Practical Implications of the Surcharge Angle

**Conveyor Capacity**: The surcharge angle is used to calculate the cross-sectional area of the material on the belt, directly impacting the conveyor’s capacity.**Safety and Efficiency**: Proper consideration of the surcharge angle ensures the safety and efficiency of the conveyor, preventing issues like material spillage or uneven loading.**Material Handling**: Understanding the surcharge angle is crucial for materials with different flow characteristics, ensuring they are transported effectively.

Incorporating the surcharge angle into conveyor design, alongside the angle of repose, is essential for creating efficient and reliable belt conveyor systems, especially in industries where material handling is a critical operation.

## Conveyor Belt Design Considerations and the Angle of Repose in Belt Conveyor

The angle of repose in belt conveyor design is a critical factor that influences various aspects of conveyor system efficiency. This section explores its role in conveyor belt angle calculation, trough angle, and optimal inclination angles for different materials.

### Role of the Angle of Repose in Conveyor Belt Angle Calculation

**Determining Incline Angles**: The angle of repose helps in setting the maximum angle of the conveyor belt to prevent material slippage.**Belt Speed and Capacity**: It influences the belt speed and the amount of material that can be conveyed, ensuring efficient transportation without spillage.**Design of Feed Points**: The angle of repose is crucial in designing feed points to ensure uniform and stable material flow onto the belt.

### Trough Angle and Its Relevance to the Angle of Repose

**Trough Angle Selection**: The trough angle of idlers in a conveyor belt is selected based on the material’s angle of repose. This ensures that the material is contained within the belt’s trough without spilling over.**Impact on Material Segregation**: A well-chosen trough angle minimizes material segregation, which can be a significant issue for materials with varying sizes and densities.

### Optimal Belt Conveyor Inclination Angles for Different Materials

**Material-Specific Design**: Different materials require different conveyor incline angles. For instance, materials with a high angle of repose may need a lesser incline to prevent rollback.**Case of Coal**: For coal handling, the conveyor inclination is designed considering its angle of repose, ensuring efficient movement while preventing spillage and dust generation.

The angle of repose in belt conveyor design is integral to determining the conveyor’s geometry, speed, and operational efficiency. It ensures that the conveyor system is tailored to the specific material characteristics, leading to improved performance and reduced operational issues.

**Experience unparalleled reliability with our durable and efficient belt conveyor systems.**

## Advanced Calculations Involving the Angle of Repose in Belt Conveyor

Advanced calculations involving the angle of repose in belt conveyor systems are essential for precise design and optimization. This section provides an in-depth look at these calculations and offers a resource for further exploration.

### In-Depth Look at Belt Conveyor Capacity Calculation Formulas

**Cross-Sectional Area Calculation**: The angle of repose is used to calculate the maximum cross-sectional area of the material on the belt, which is a key factor in determining conveyor capacity.**Influence on Belt Width and Speed**: The angle of repose affects the selection of belt width and optimal belt speed, balancing the material flow rate with the conveyor’s operational efficiency.

### How the Angle of Repose Factors into These Calculations

**Material Stability**: The angle of repose ensures that the material remains stable on the belt, especially in inclined sections, affecting the overall capacity and safety of the conveyor.**Design of Skirtboards and Guides**: In calculating the height and placement of skirtboards and guides, the angle of repose is considered to prevent spillage and maintain material alignment.

### Providing a Downloadable PDF for Advanced Calculation Methods

**Comprehensive Guide**: A downloadable PDF is provided, offering a comprehensive guide to advanced calculations involving the angle of repose. This resource includes formulas, examples, and practical tips for conveyor design.**Application in Various Industries**: The guide is beneficial for professionals in industries like mining, agriculture, and construction, where precise conveyor design is crucial for operational efficiency.

Advanced calculations involving the **angle of repose in belt conveyor **are pivotal for designing belt conveyor systems that are both efficient and reliable. These calculations ensure that the conveyor is optimally designed to handle specific materials, leading to improved performance and reduced maintenance requirements.

## FAQs about Angle of Repose in Belt Conveyor

**What is the angle of repose of a belt?**

The angle of repose in the context of conveyor belts typically refers to the maximum angle at which material on the belt remains stable without sliding down. This angle varies depending on the material being transported. For example, dry sand might have an angle of repose around 30-35 degrees, while crushed stone could be around 45 degrees or more.

**What is the best angle for a belt conveyor?**

The best angle for a belt conveyor depends on the material being conveyed and the design of the conveyor. Generally, for bulk materials, incline angles are kept below the material’s angle of repose to prevent rollback. In many cases, this is typically around 20 degrees. However, for packaged or unit goods, steeper angles can be used, sometimes up to 30 degrees or more, depending on the grip and stability of the items.

**What is the angle of belt conveyor incline?**

The angle of incline for a belt conveyor is the angle at which the conveyor is tilted from the horizontal. This angle is crucial for the design and operation of a conveyor system as it affects the amount of material that can be transported without slipping or rolling back. The maximum incline angle is usually less than the material’s angle of repose.

**What is the angle of wrap in a belt conveyor?**

The angle of wrap in a belt conveyor refers to the angle through which the belt wraps around the drive pulley. This angle is important for the transmission of power from the pulley to the belt. A larger angle of wrap (which can be up to 180 degrees or more) provides greater contact area between the belt and pulley, leading to better friction and power transmission, allowing the conveyor to carry heavier loads or operate at higher speeds.
